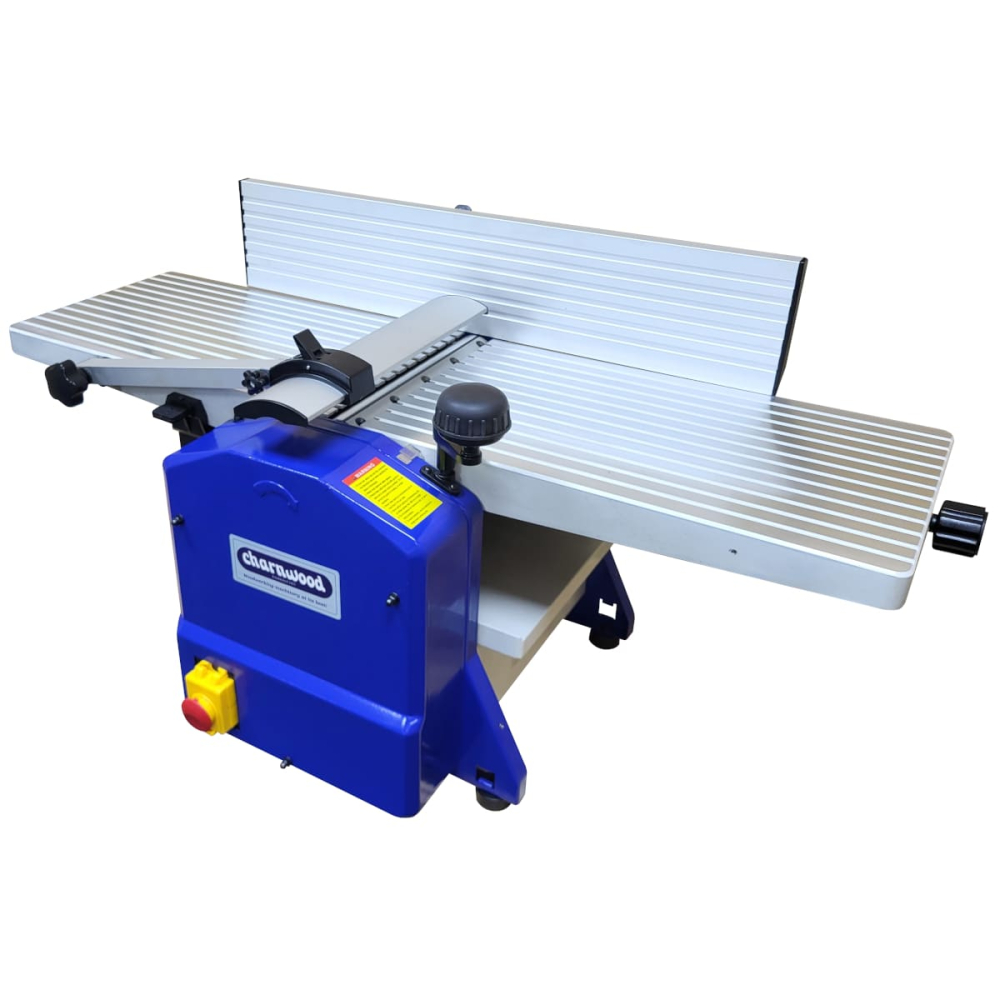

Charnwood PT250B Bench Top 10'' x 5'' Planer Thicknesser

Large capacity, bench top planer thicknesser.

• 10'' Planing Capacity - Removes Up To 2mm
• Machined Aluminium Tables - To Minimise Weight
• Longer Guide Fence - For Increased Accuracy
• Fence Uses Twin Supports - Extra Rigidity

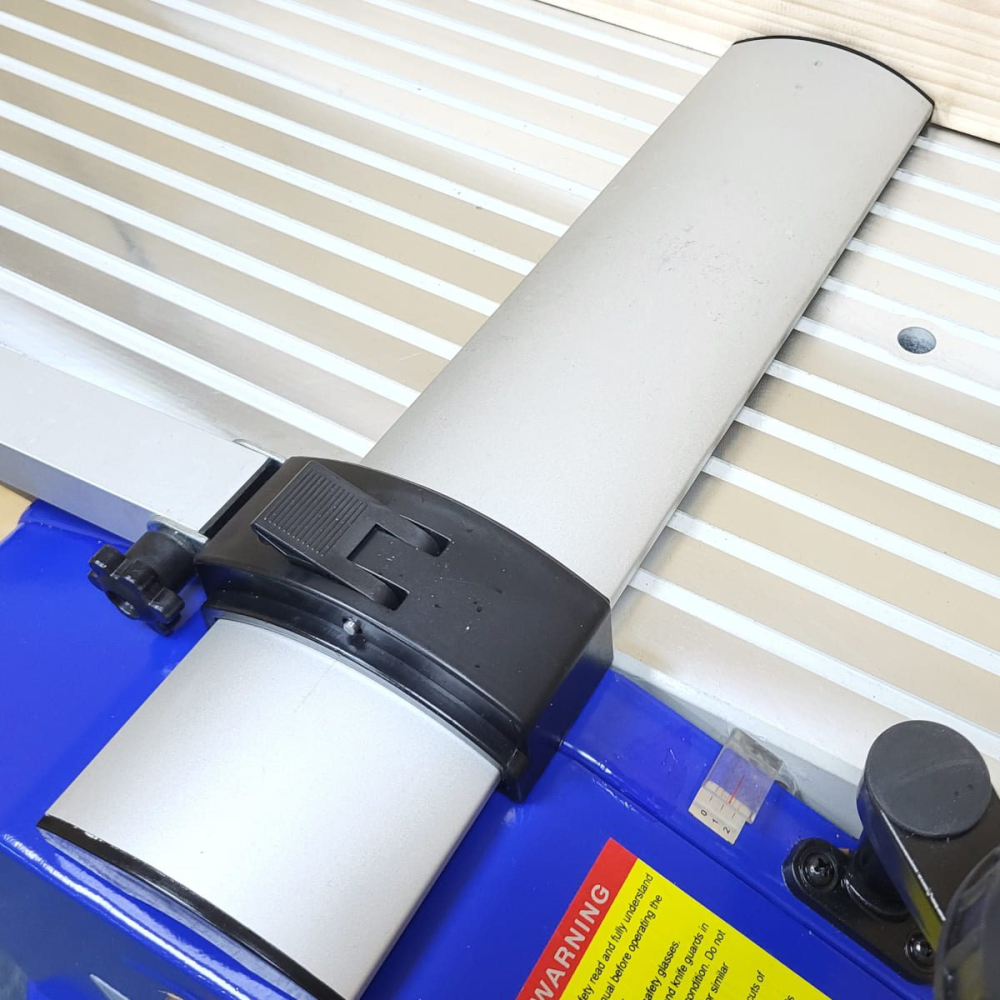

• Fully Adjustable Bridge Guard - Height And Width

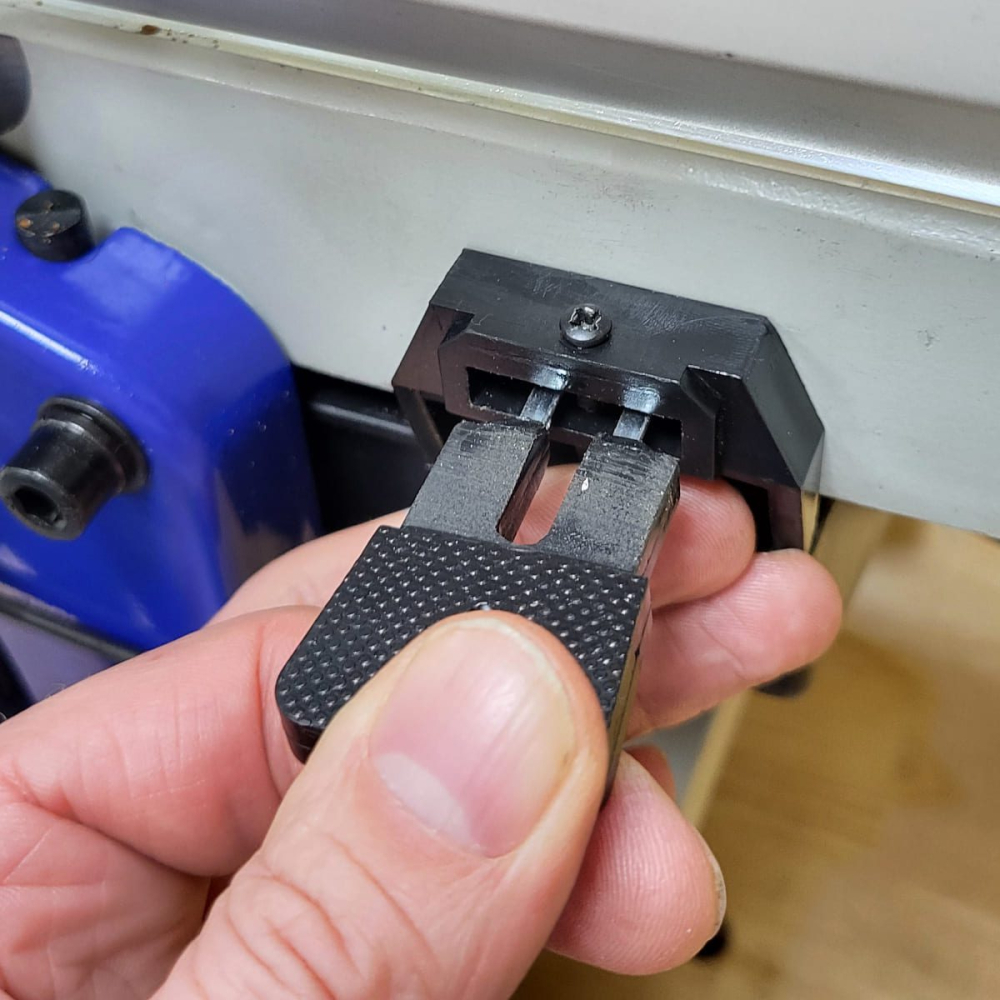

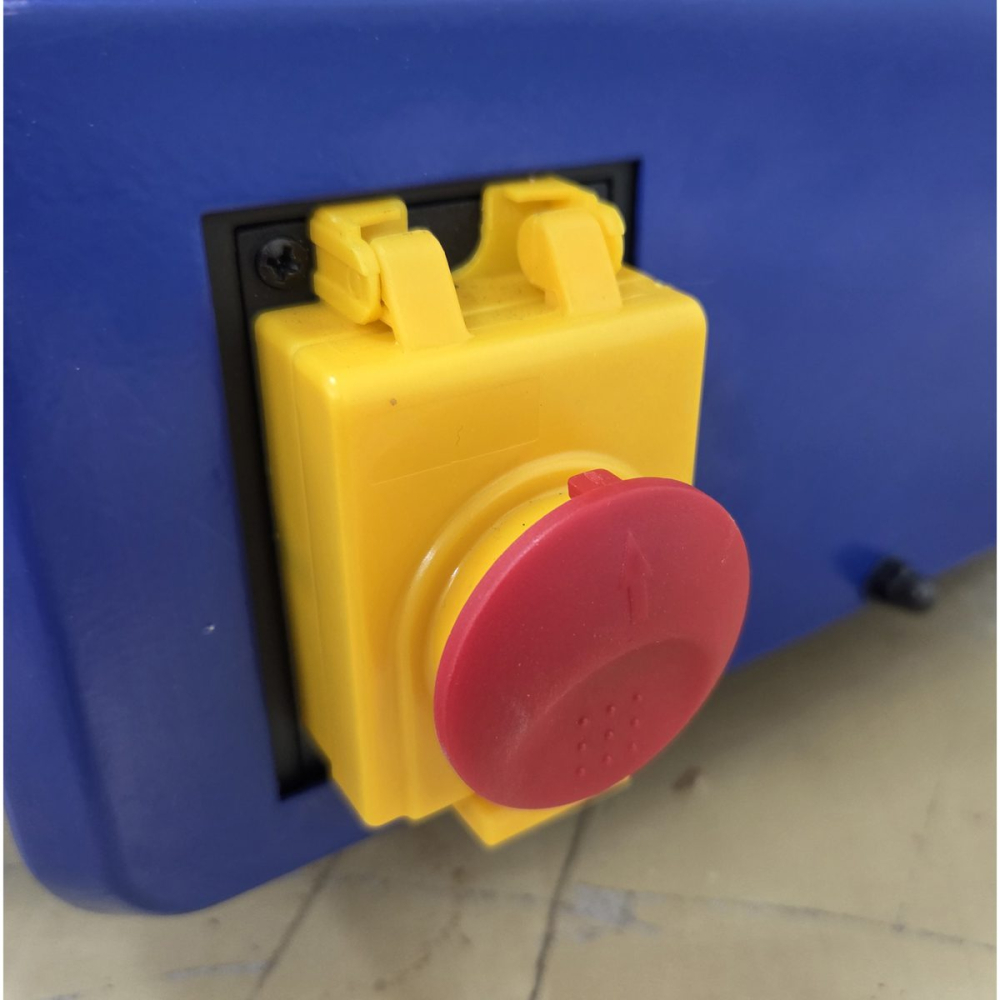

• Micro Switches Ensure Safety - No Guard No Start
• Nothing Removed On Function Change - Faster Changeovers
• 10'' x 5'' Thicknessing Capacity - Removes Up to 2mm
• Rubber Coated Feed Rollers - Does Not Mark The Work
• Accurate Thicknessing Height Adjustments - 3mm Per Rotation

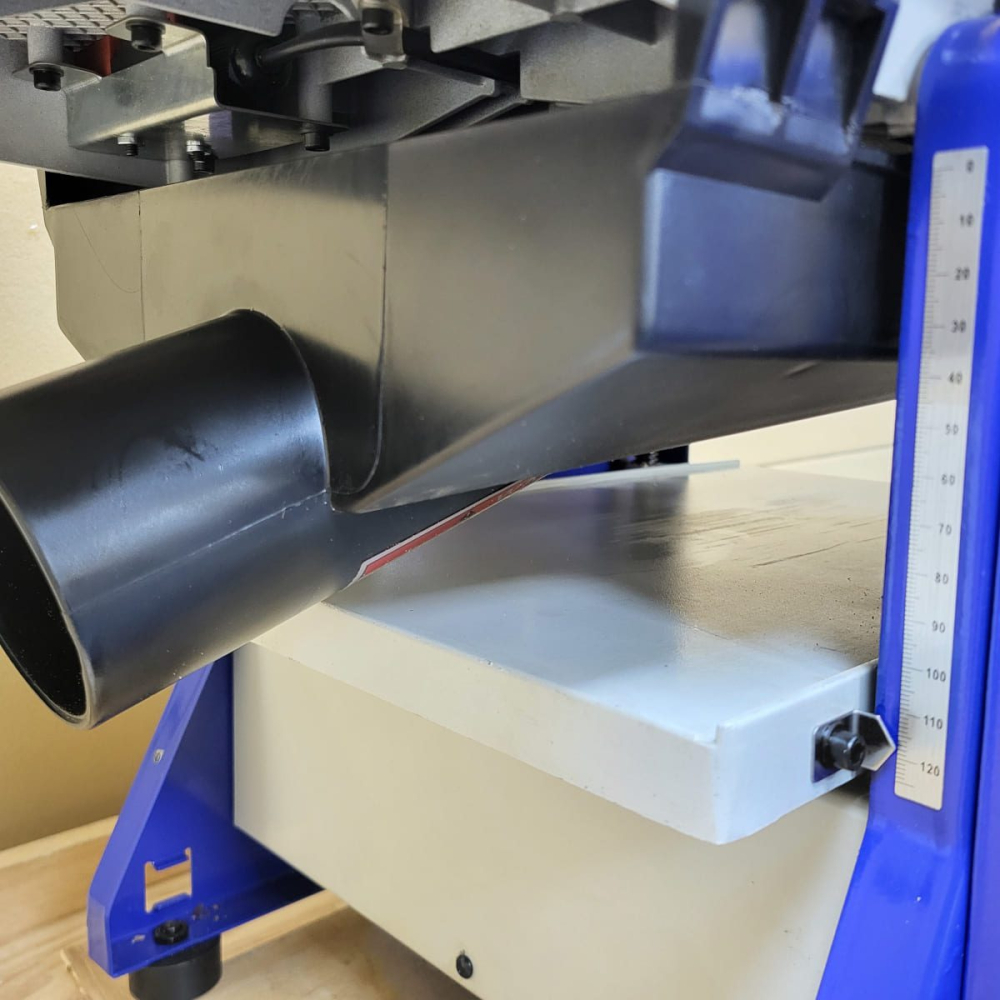

• 75mm Diameter Dust Extraction Outlet - Will Not Clog

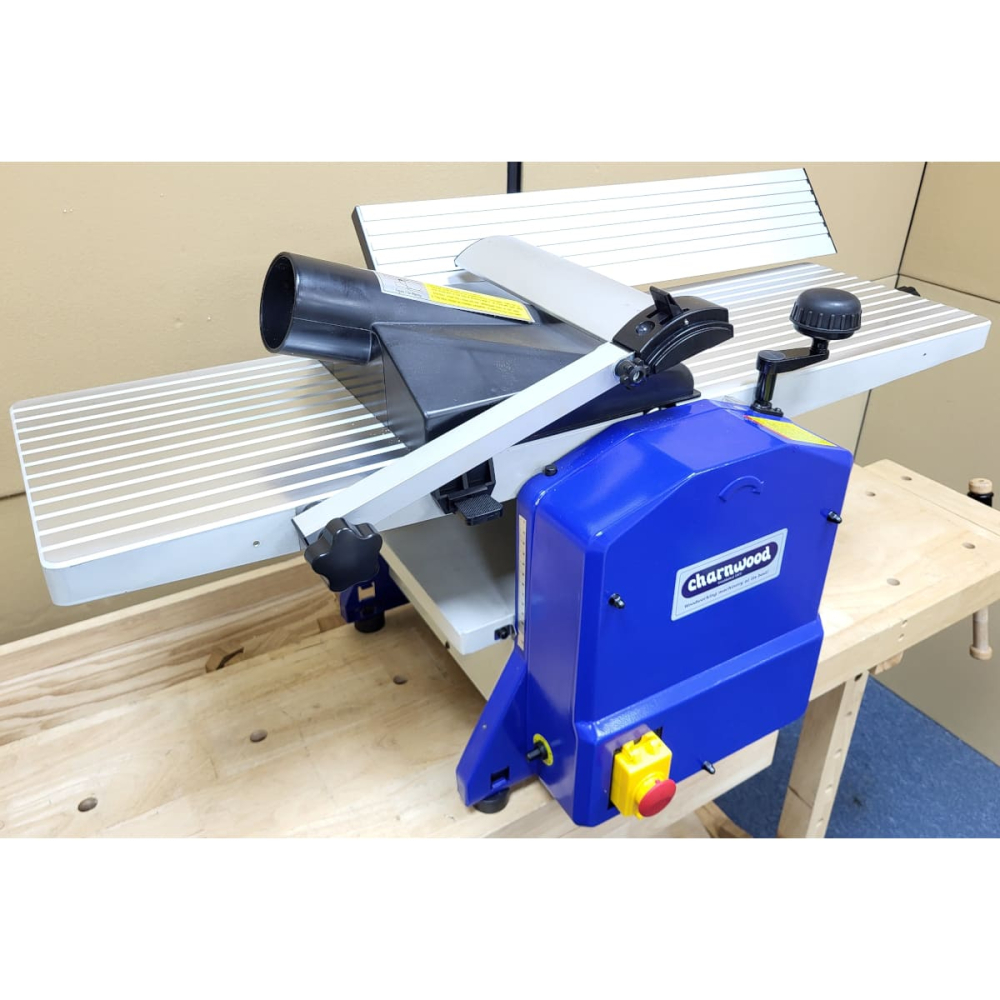

The largest of our bench top machines, still light enough to move off the bench when not in use. The capacity allows timber of up to 10_ x 5_ to be accurately dimensioned.

The surface of the aluminium planing beds is ribbed, which reduces friction when feeding in large boards. Increasing the total length of the beds to over 900mm gives increased support when working with those longer boards. The upper surface is precision ground to ensure a perfectly flat working area.

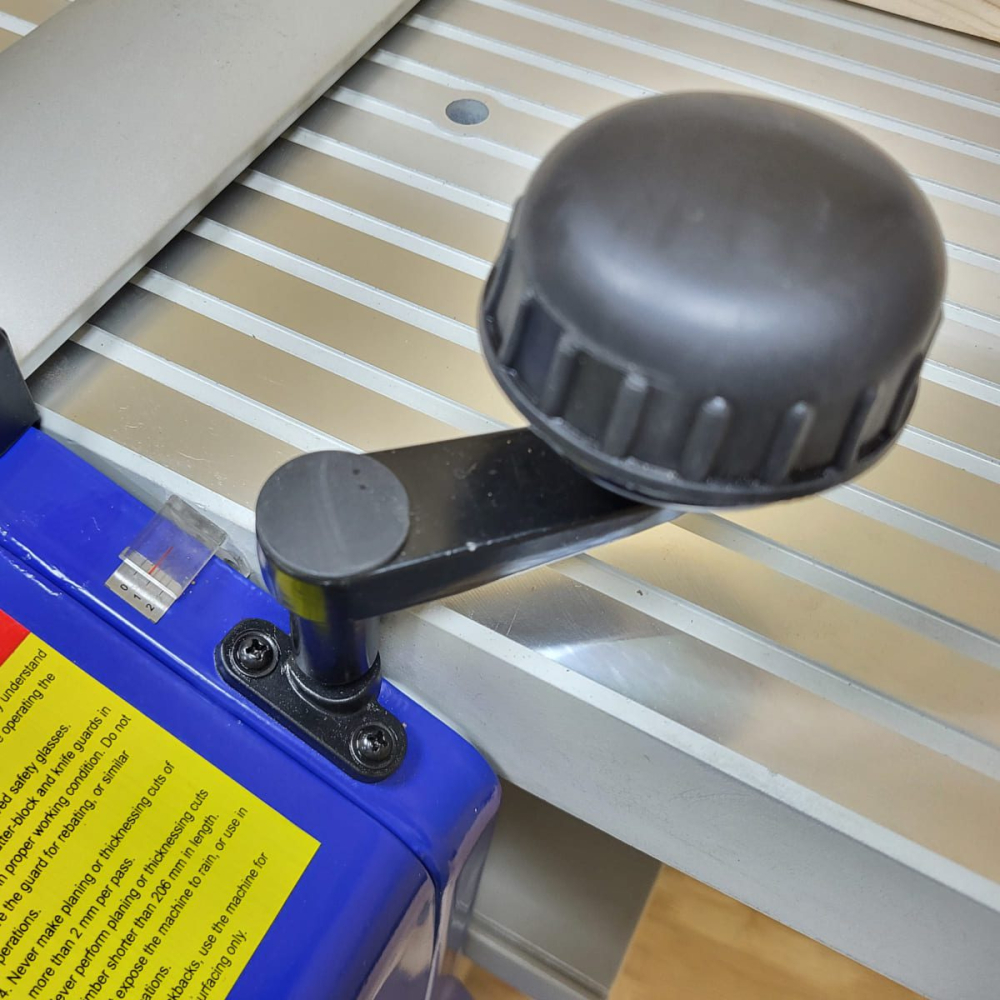

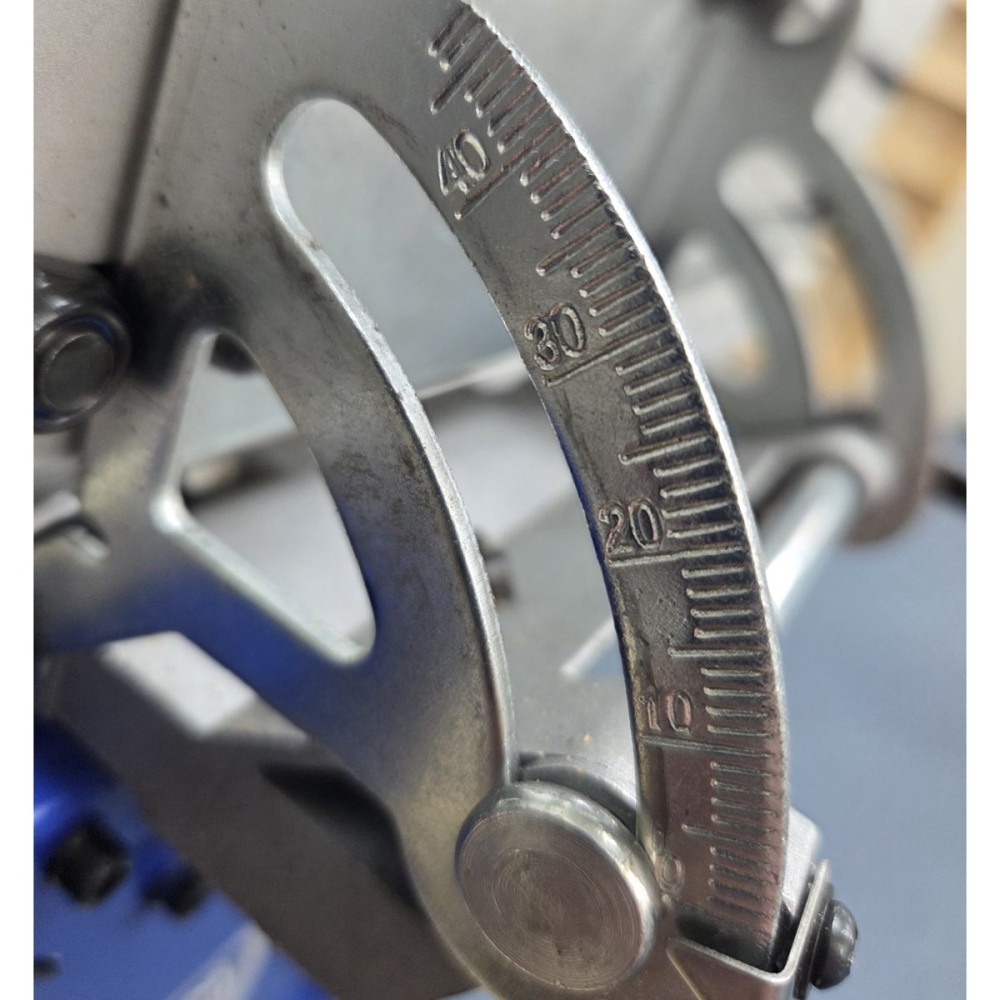

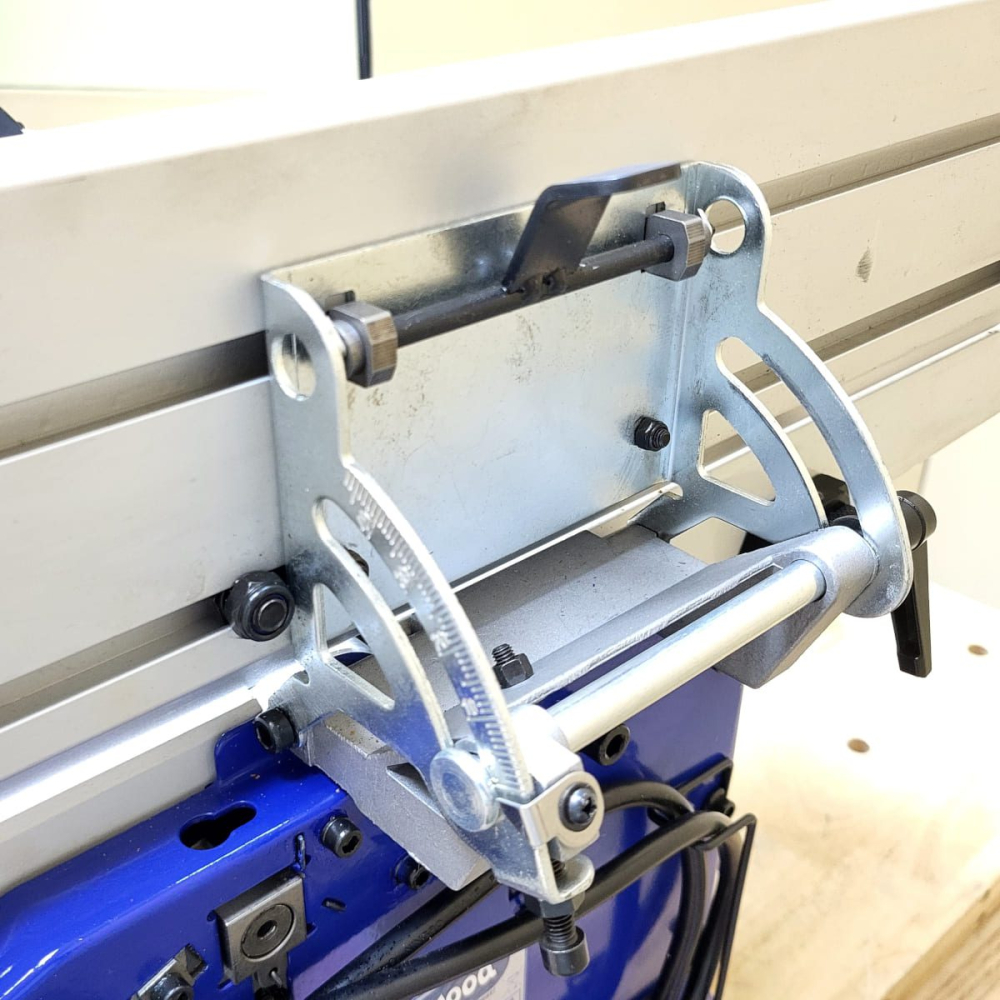

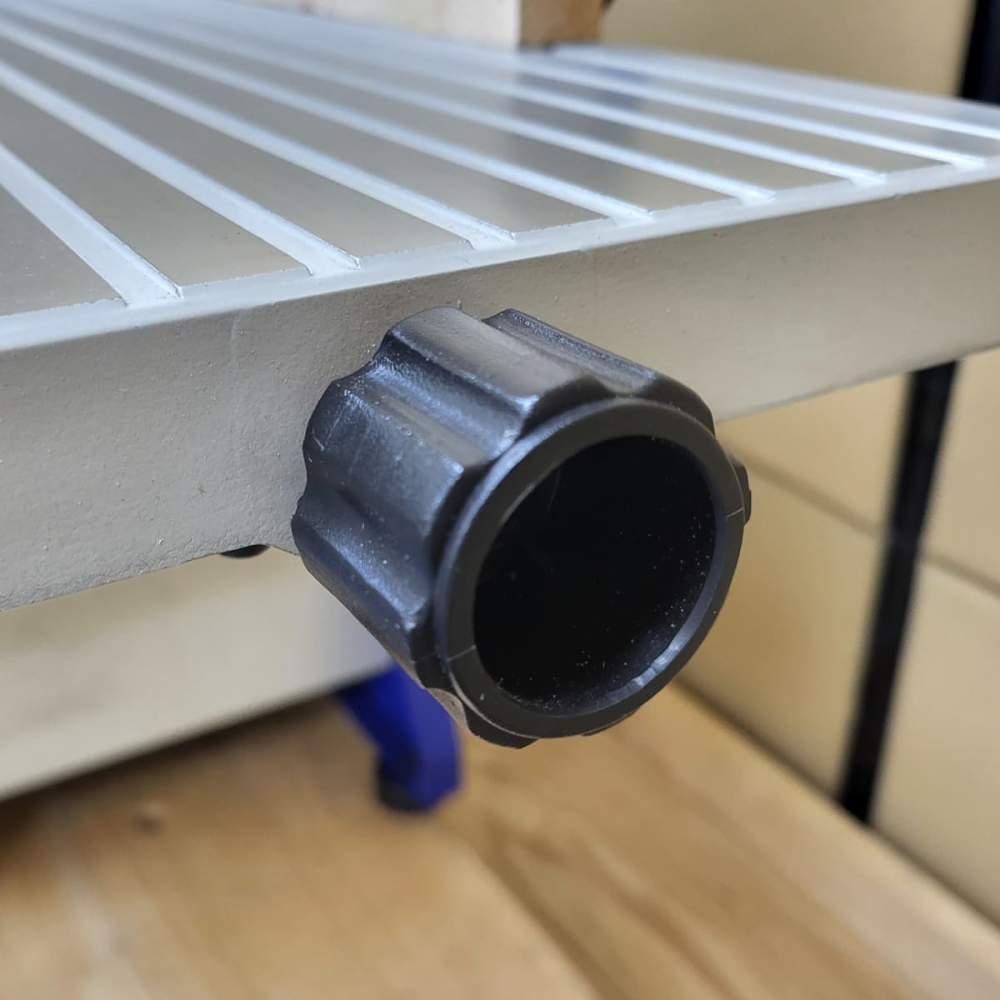

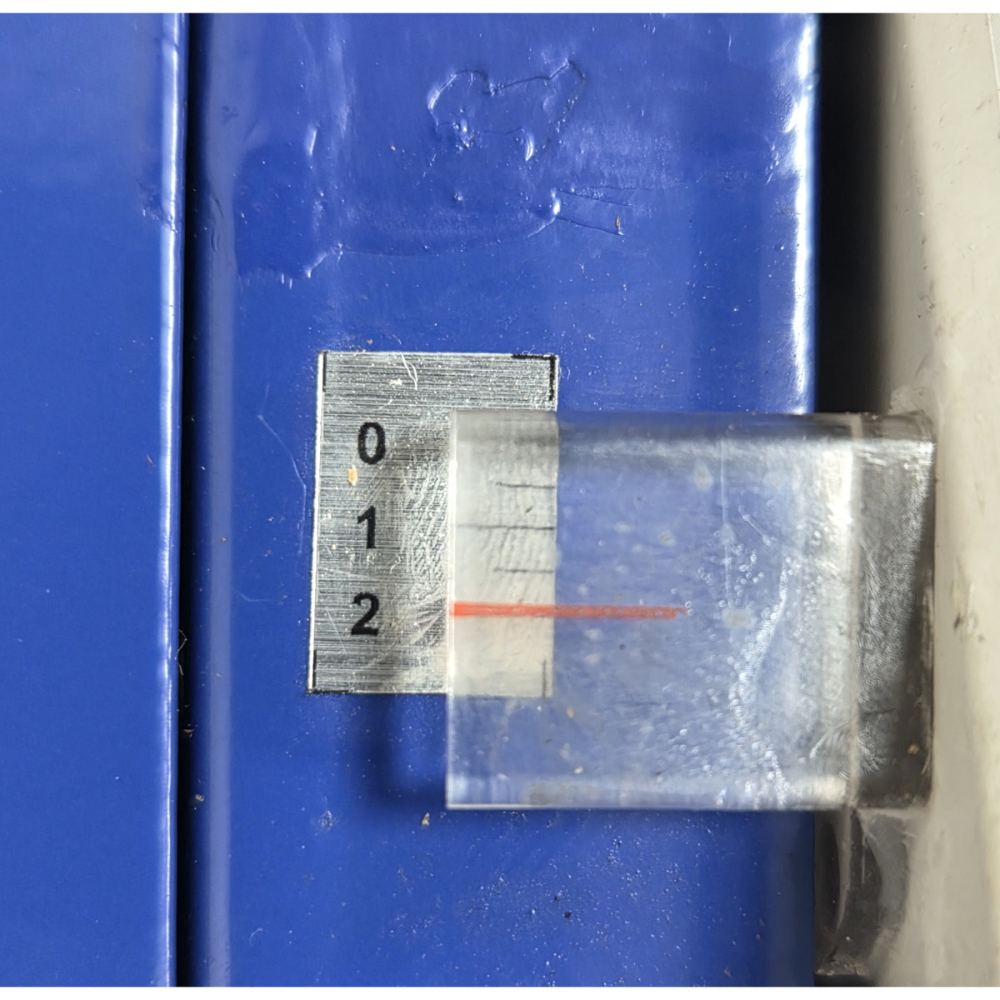

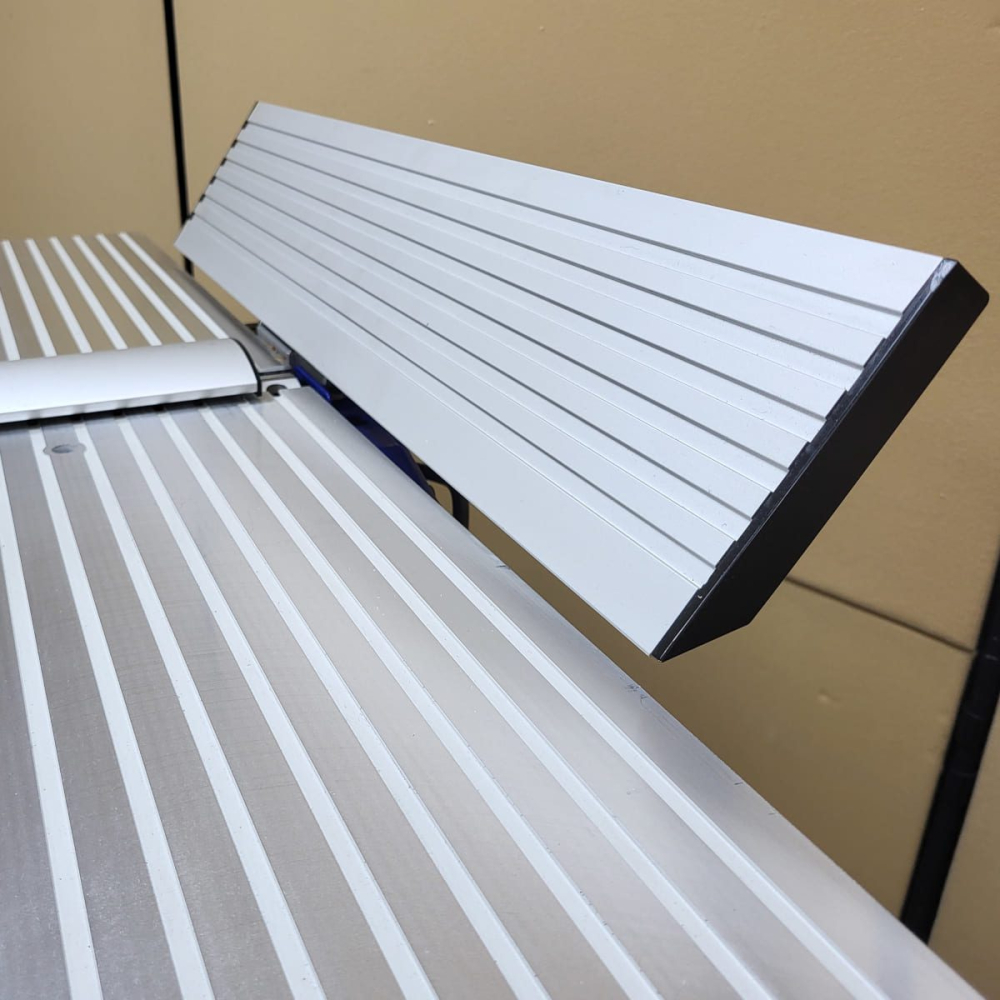

The infeed planing bed height is adjusted by rotating the handle on the end, a depth scale with sight glass is marked in graduations of 0.5mm and can be set to remove up to a maximum of 2.0mm in each pass. The large side fence is held at 90 degrees by twin supports. When required, it can be tilted back up to 45 degrees with a graduated scale for each degree.

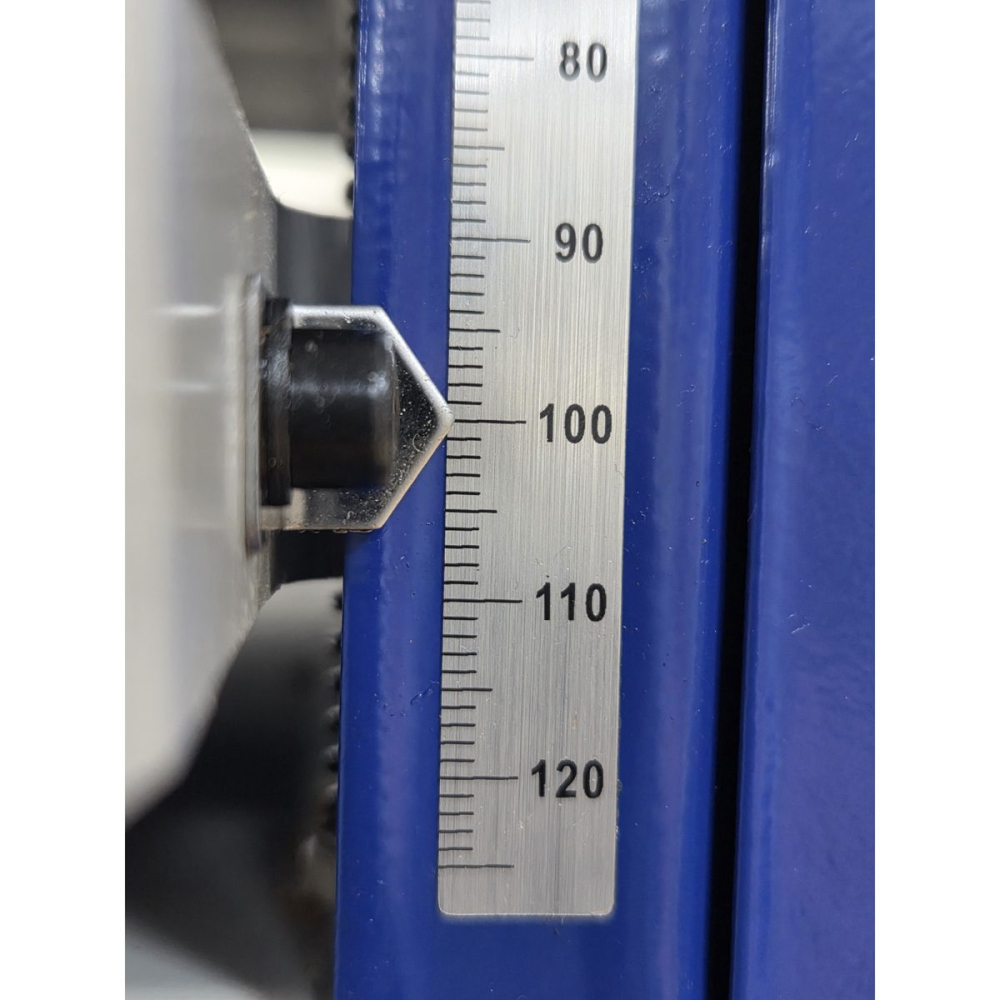

The height of the bed is adjusted by rotating a handle, 1 rotation = 3mm. A clear scale is marked out in 1mm increments. A stop bar prevents over loading in excess of the 2.0mm maximum depth of cut for each pass.

Specification

Includes a 5 year manufacturers guarantee.
