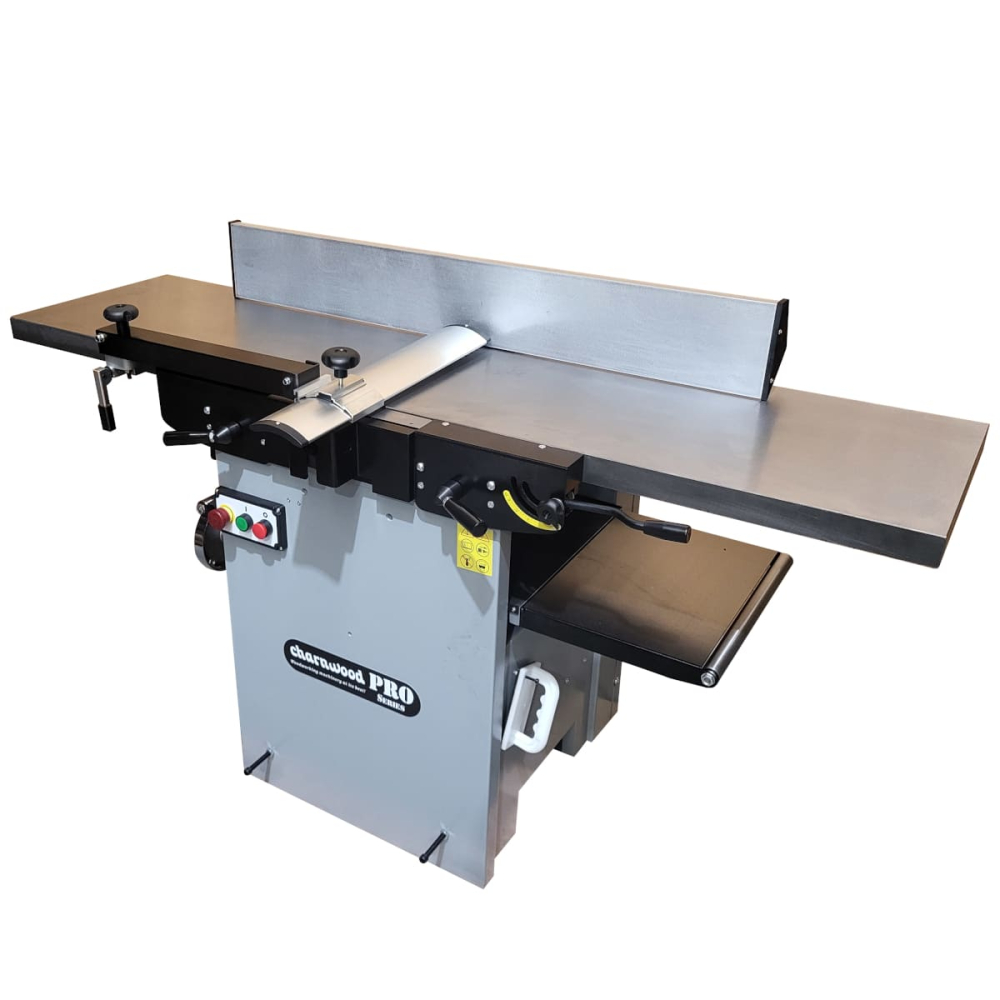

Charnwood PT16S Planer Thicknesser 16" x 9" With Spiral Cutter Block

• Low Noise Operation - Spiral Cutter Block
• High Quality Surface Finish - 72 Tungsten Carbide Cutters
• Trade Rated Machine - Cast Iron Tables
• Fast Function Change Over - Front Facing Locking Handles
• Parallel Table Lift - Fence Stays In Position
• 16" Planing Capacity - Industrial 4hp Motor
• 16" x 9" Thicknessing Capacity - With Powered Feed rollers
• High Thickness Accuracy - Mechanical Digital Display

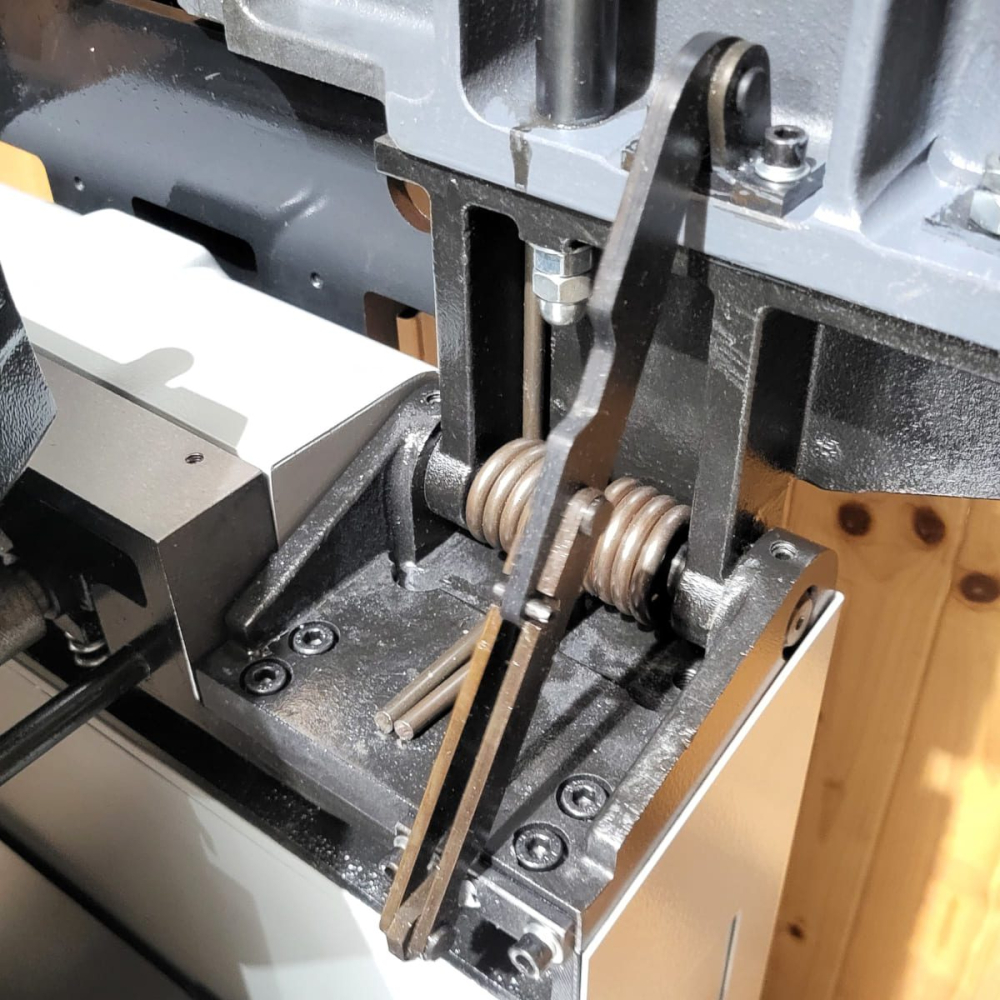

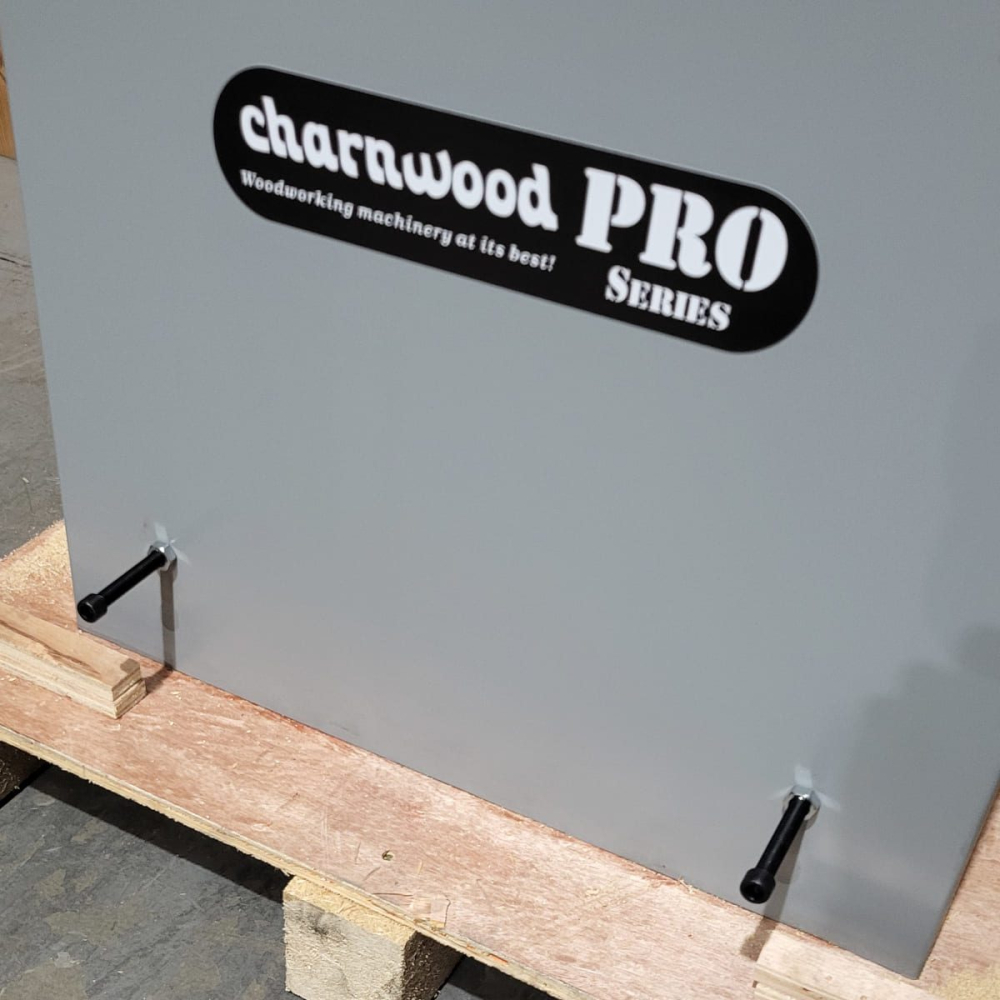

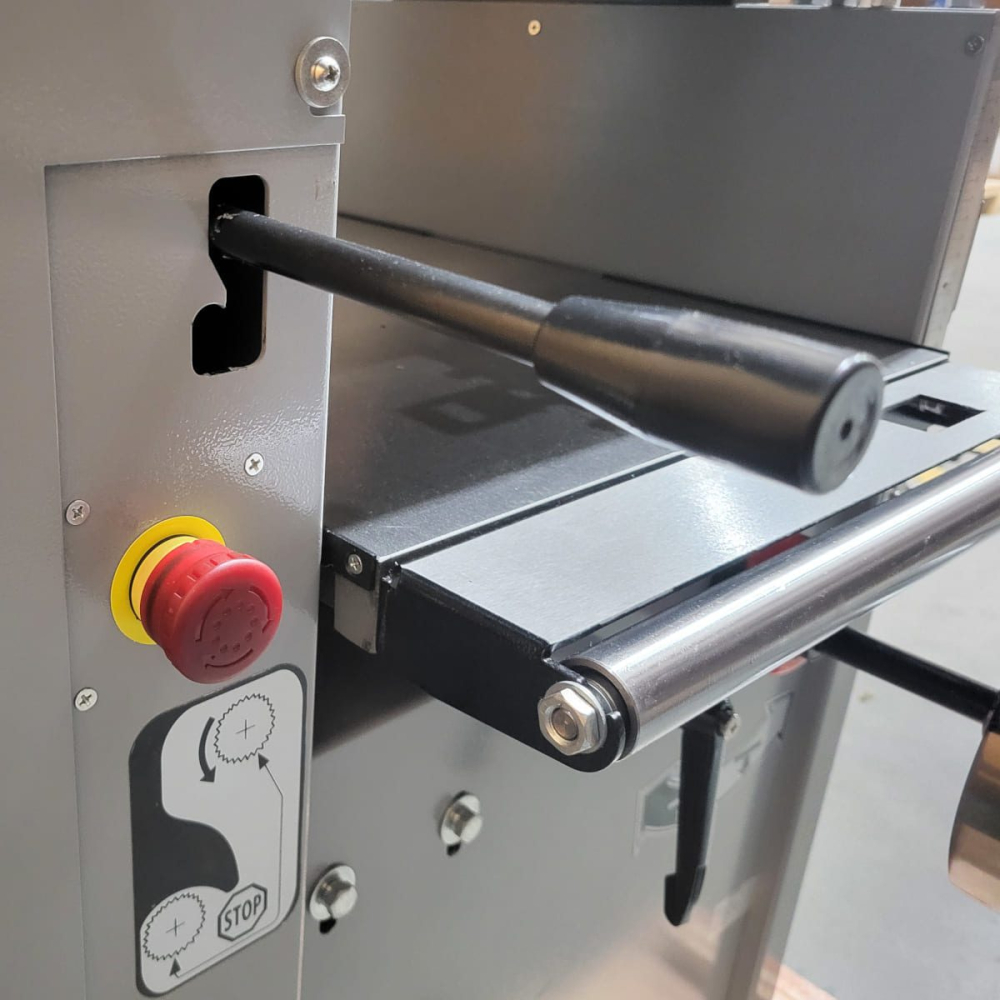

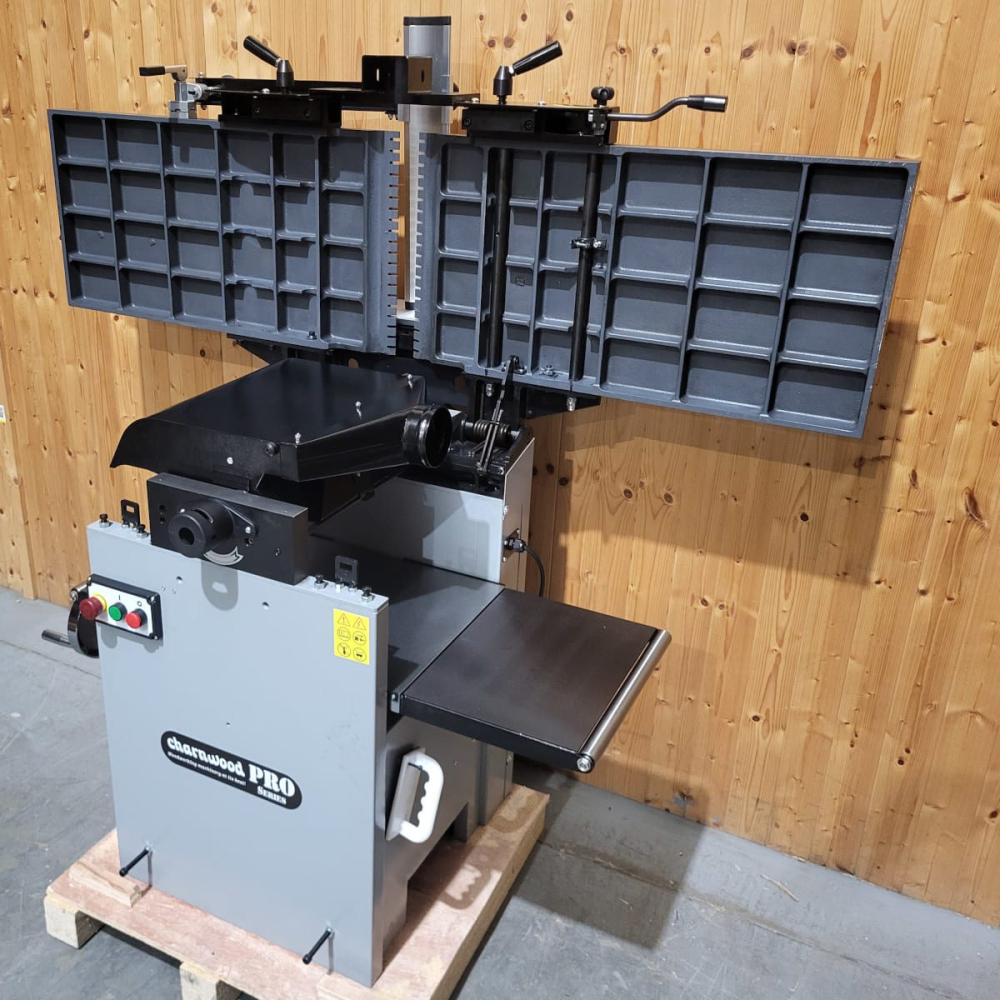

Part of the Charnwood ÔPro SeriesÕ, this combination planer thicknesser offers simple and fast changes between the 2 functions. The planer bed locking handles are located on the front of the machine for better access. Once unlocked, the planer beds lift as one and lock into the raised position. A pair of springs assist to reduce the weight. The bridge guard and planing fence stay in position when the bed is raised Ð nothing to remove.

An industrial 4 row spiral cutter block with Carbide cutters gives an impeccably smooth finish with noticeably reduced noise levels, driven by a 4hp motor.

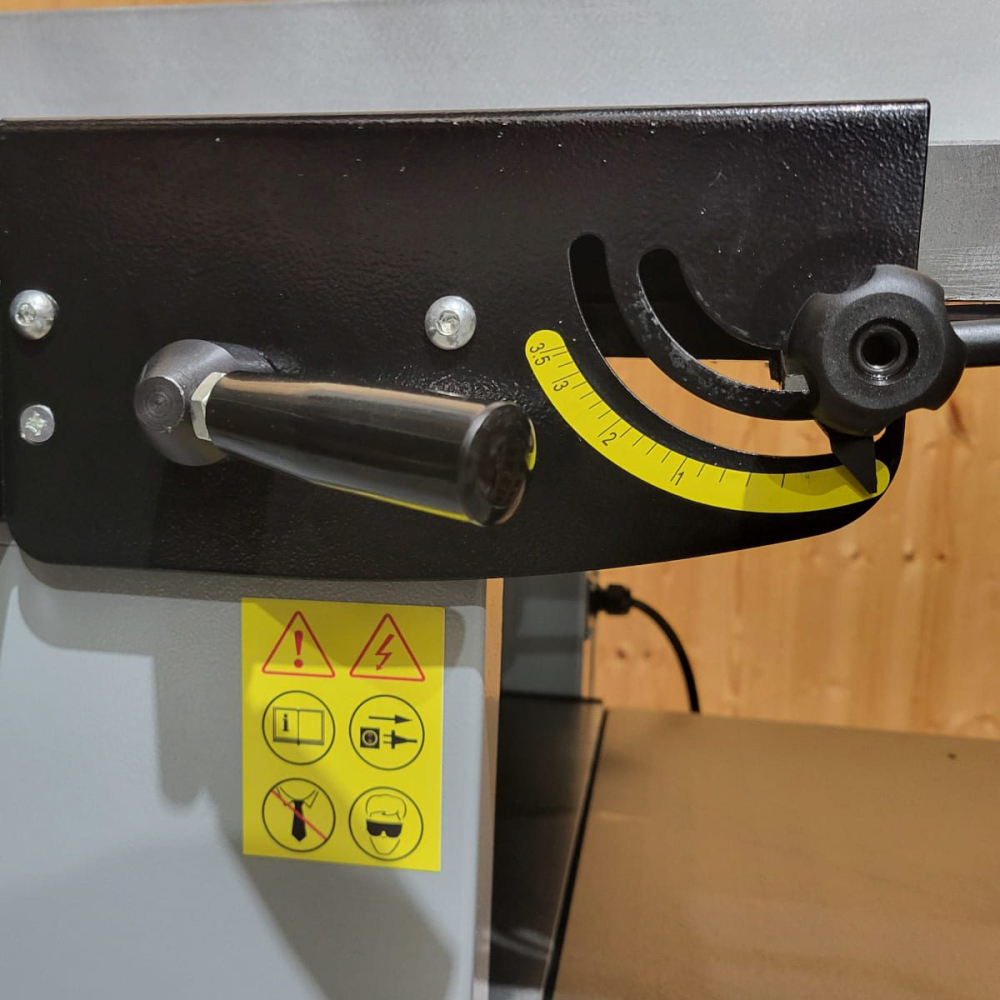

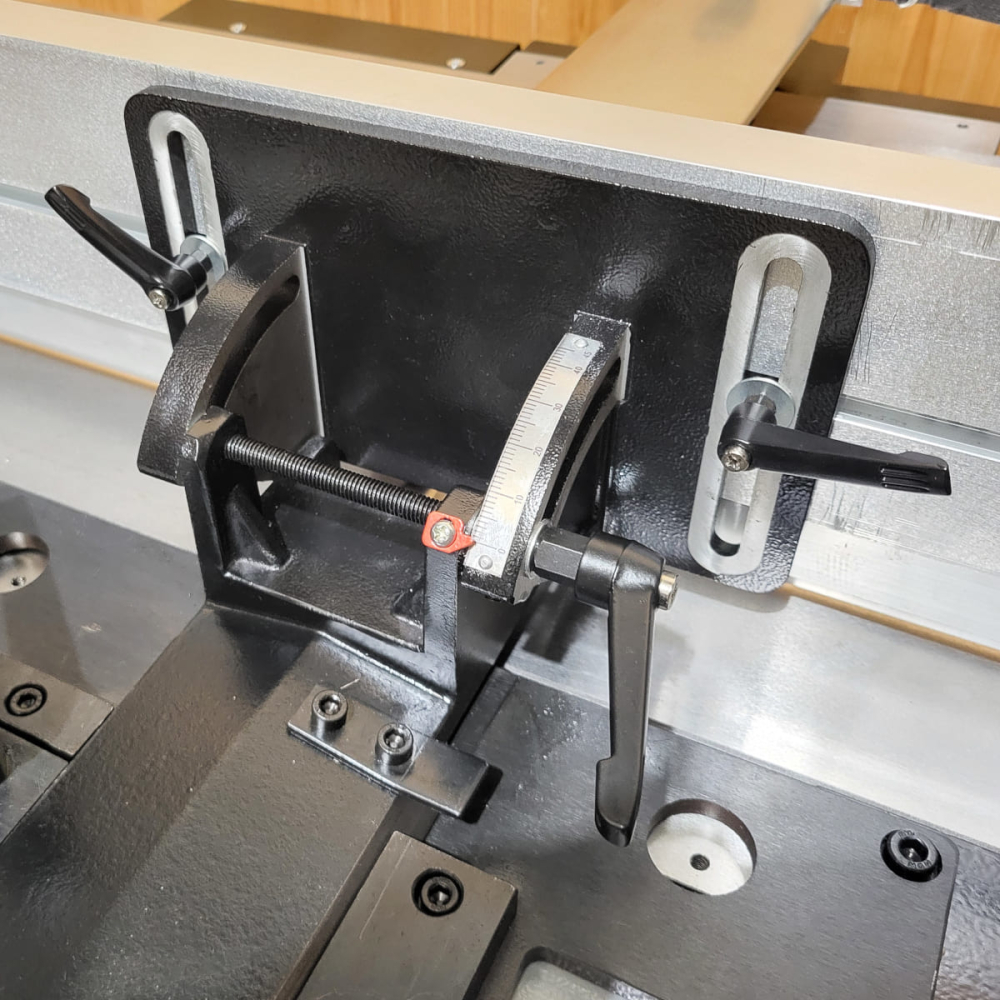

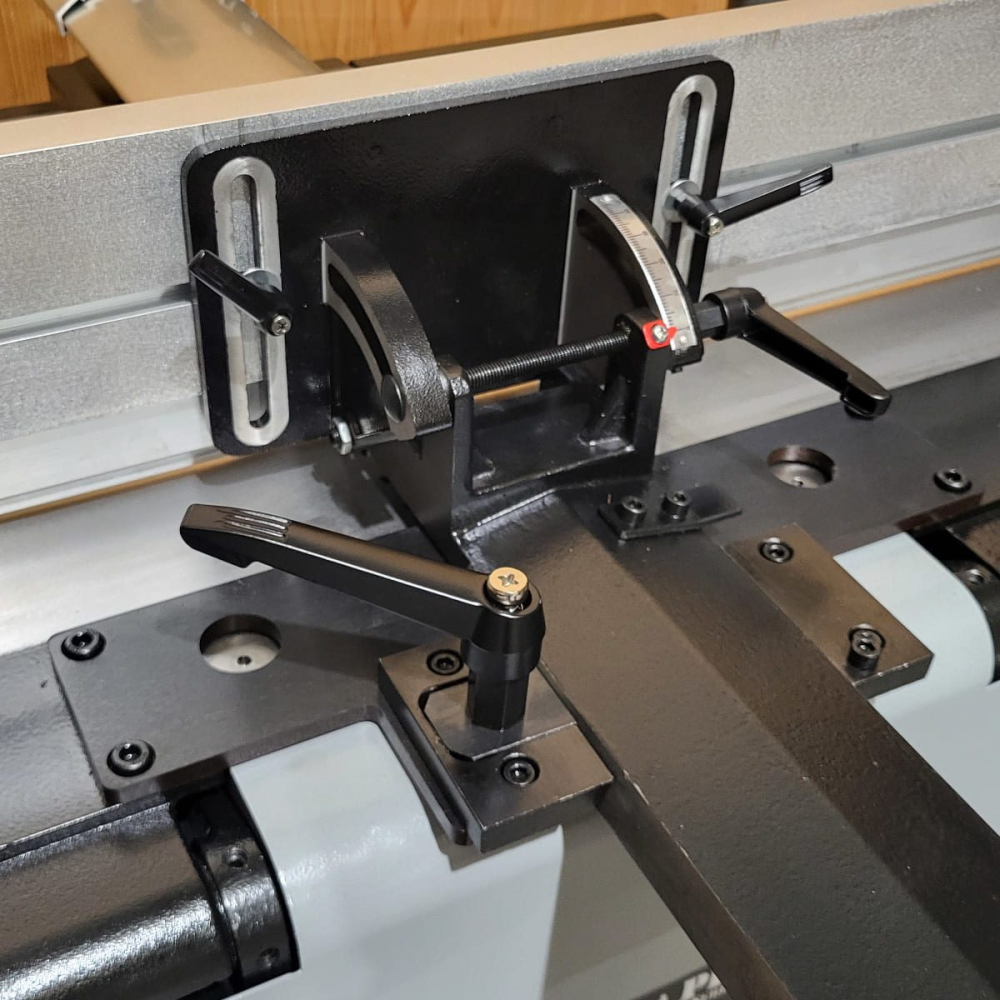

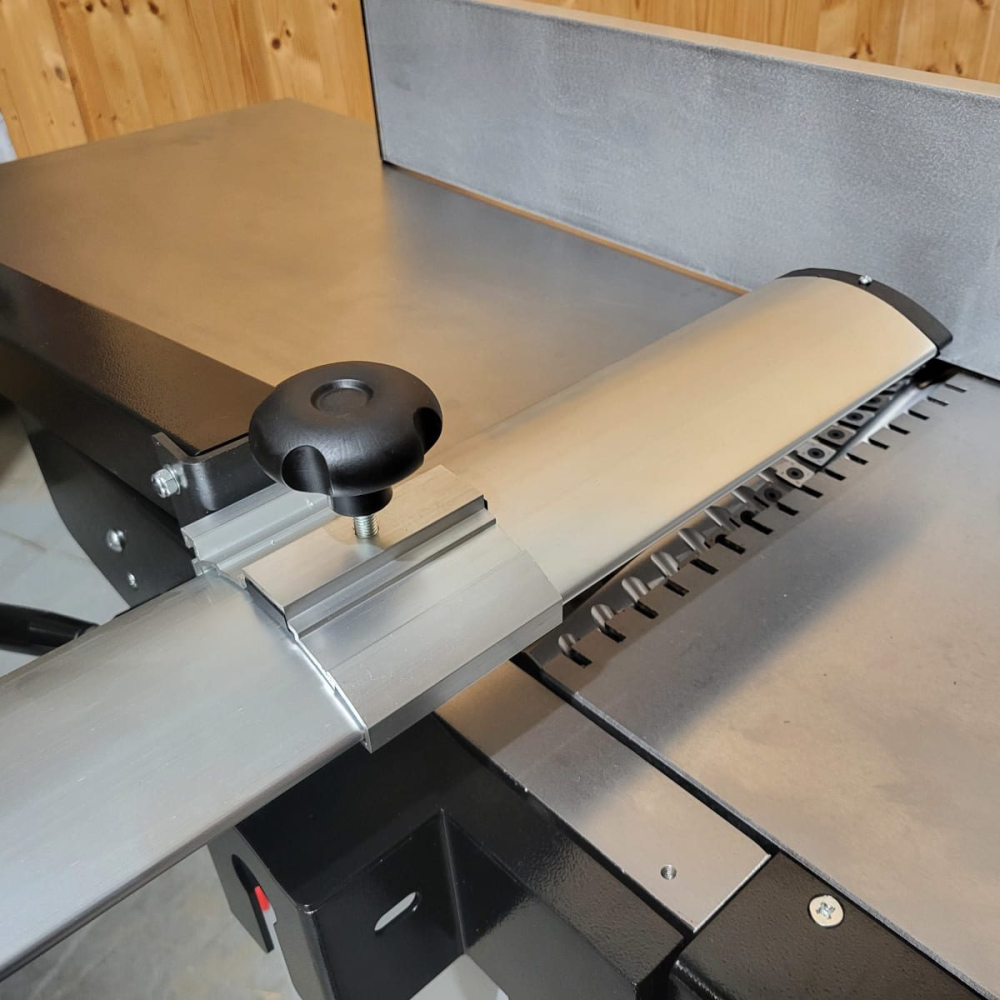

The extra long cast iron infeed bed is quick to adjust using a lever, with a clear scale to read the setting before locking the position. The bridge guard has simple controls to set the height over the cutters and the gap to the side fence. It can also be lifted up and locked completely out of the way. The side fence is mounted on a sturdy cast iron support bracket. The fence can be positioned anywhere across the width of the cutter block, useful for getting even wear on the cutters when working mainly with narrower materials. The fence can also be tilted back to 45 degrees.

Moving from the Planing function to Thicknessing takes only seconds. Lift the beds then swing the cutter guard over the top. The cutter guard has a 100mm diameter outlet for dust and chip collection.

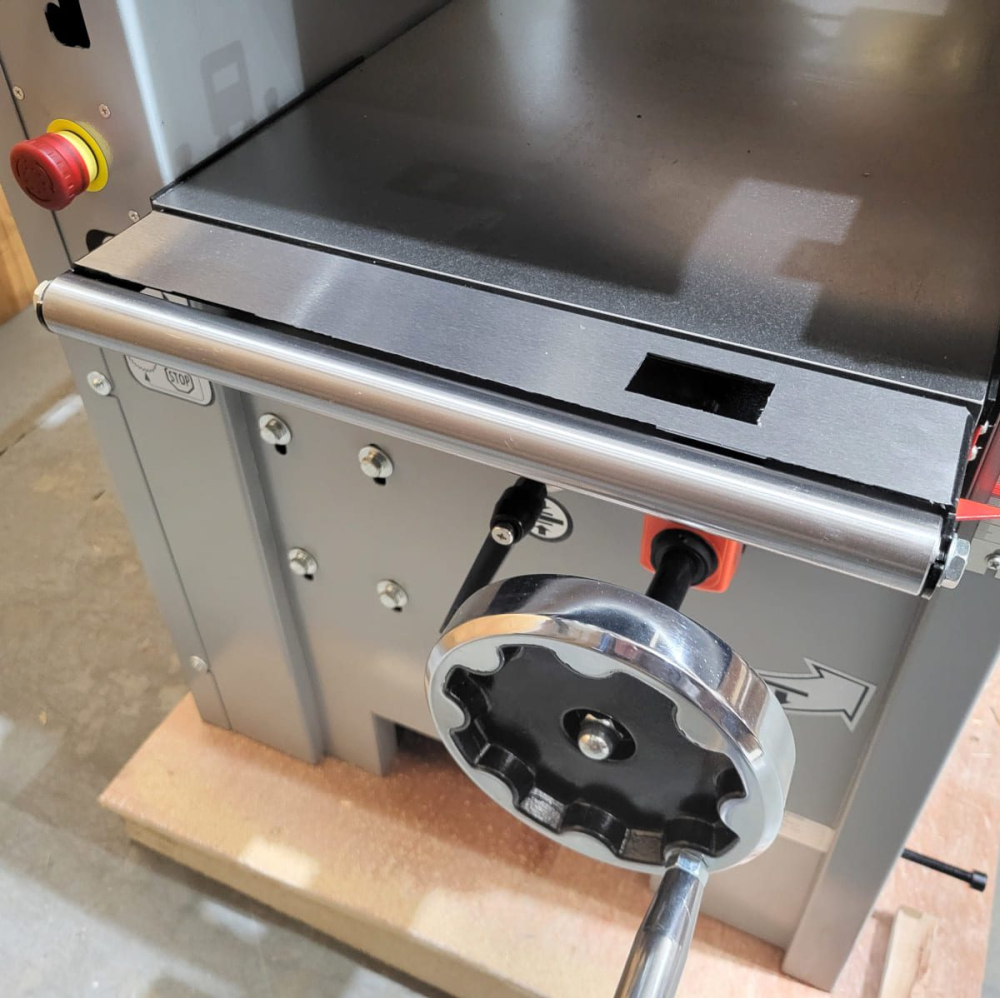

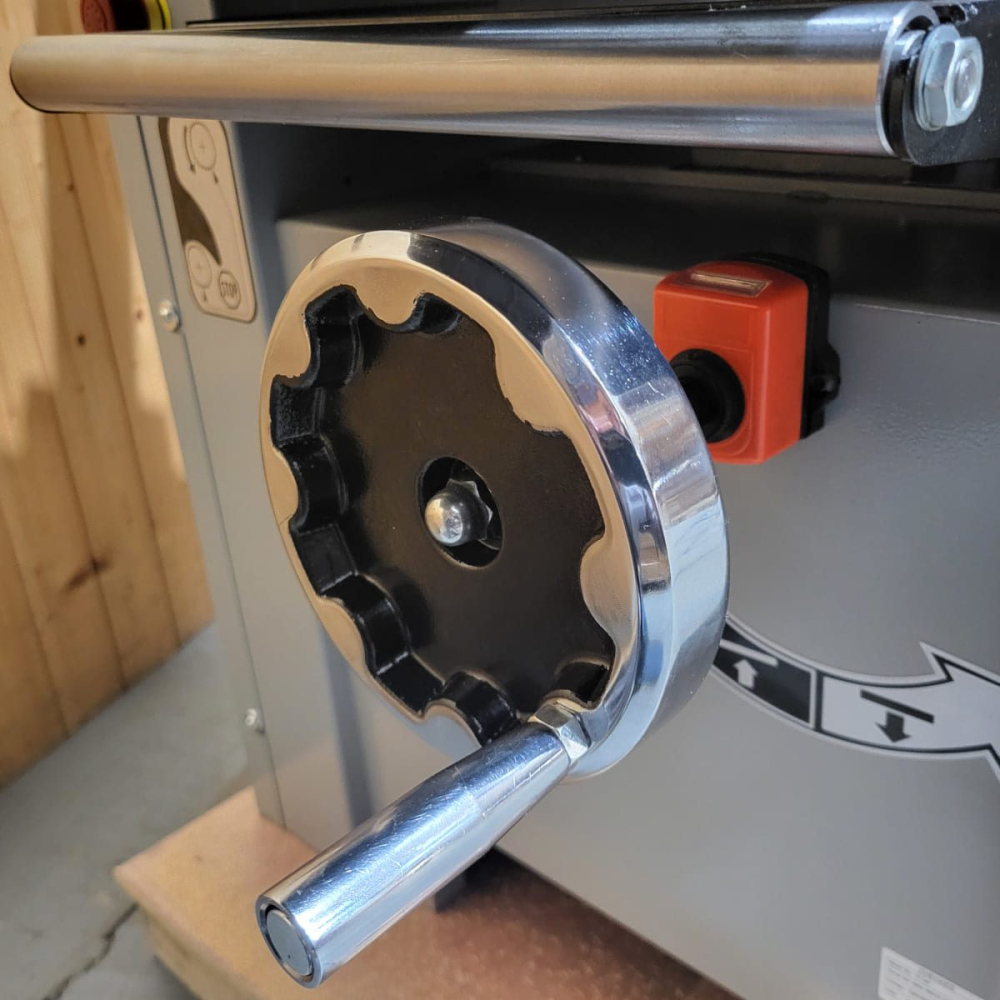

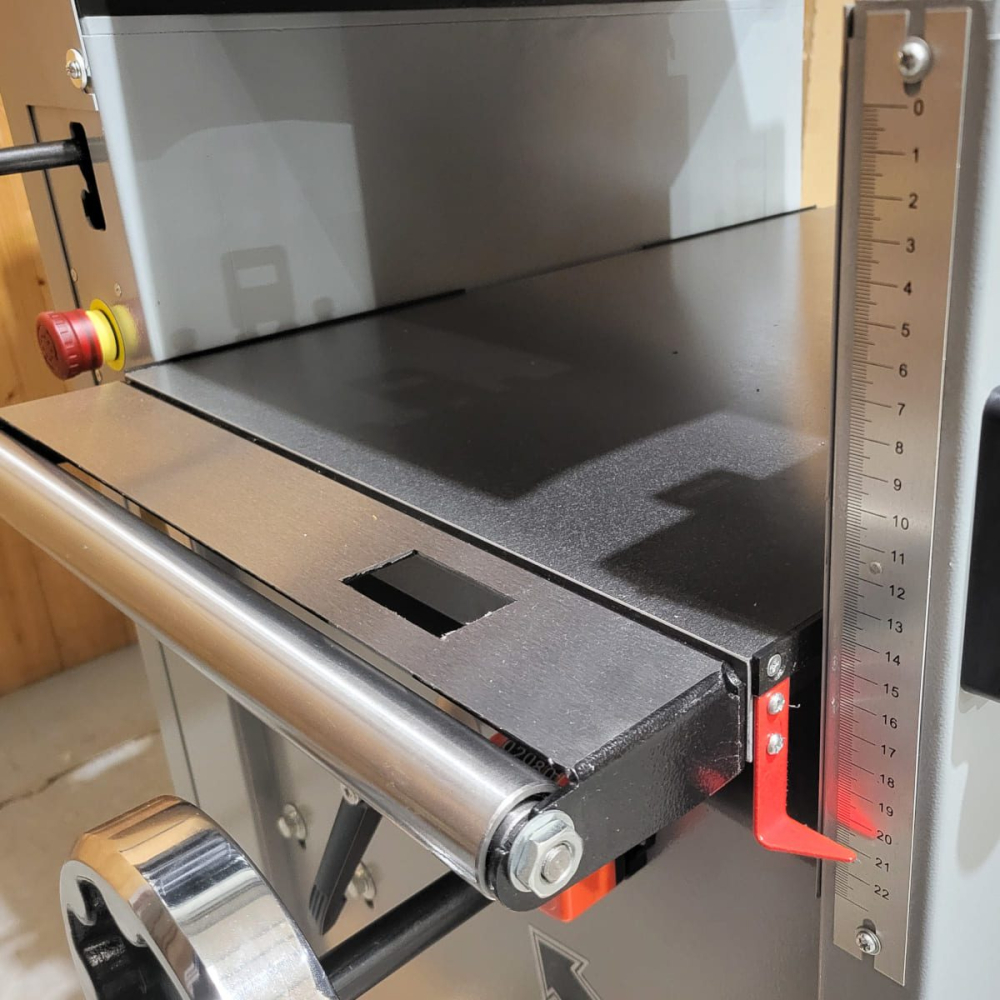

Setting the thicknessing depth is done by rotating the cast iron hand wheel (1 rotation = 2mm) and reading from the measuring scale or for more precise control the mechanical digital display, accurate to 1/10th of a millimetre. A position lock is fitted which prevents any movement of the bed during the cut.

The drive rollers feed timber through at an impressive 5.4 metres per minute. The feed system can be disengaged when planing to save wear and tear on the mechanism.

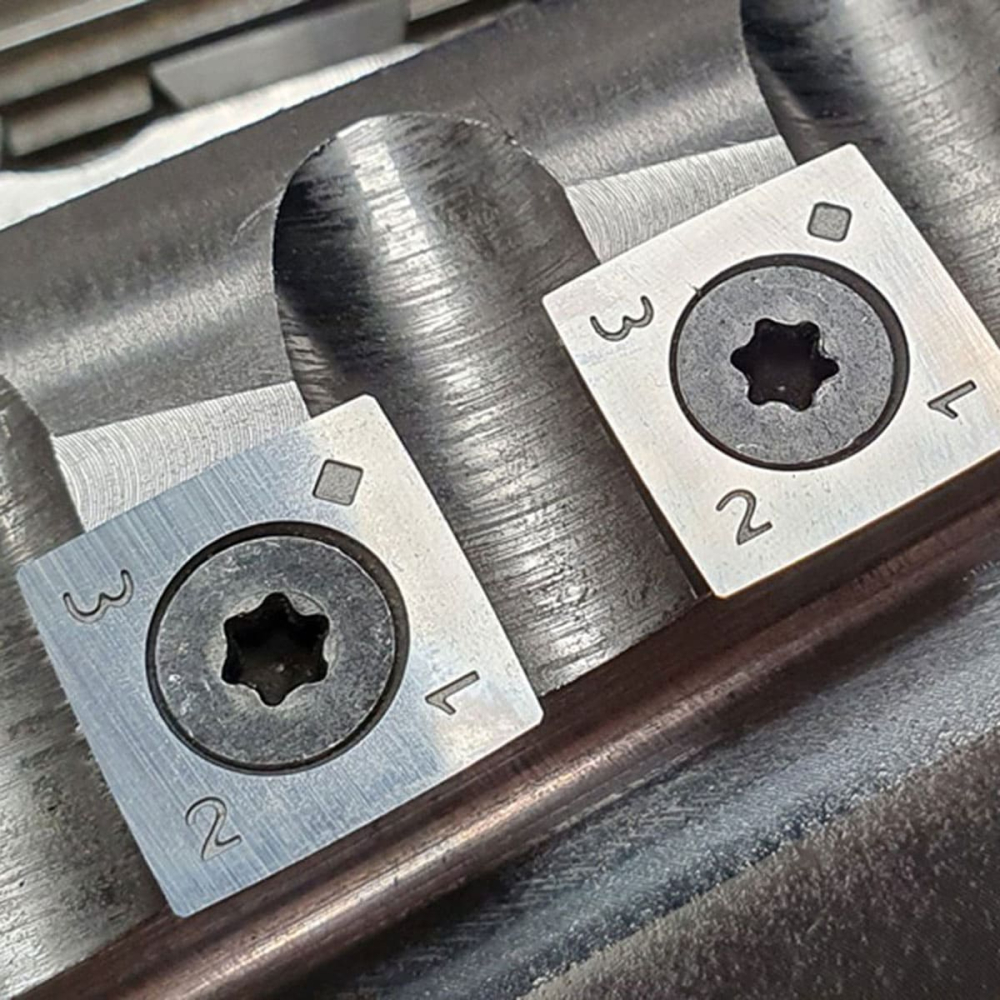

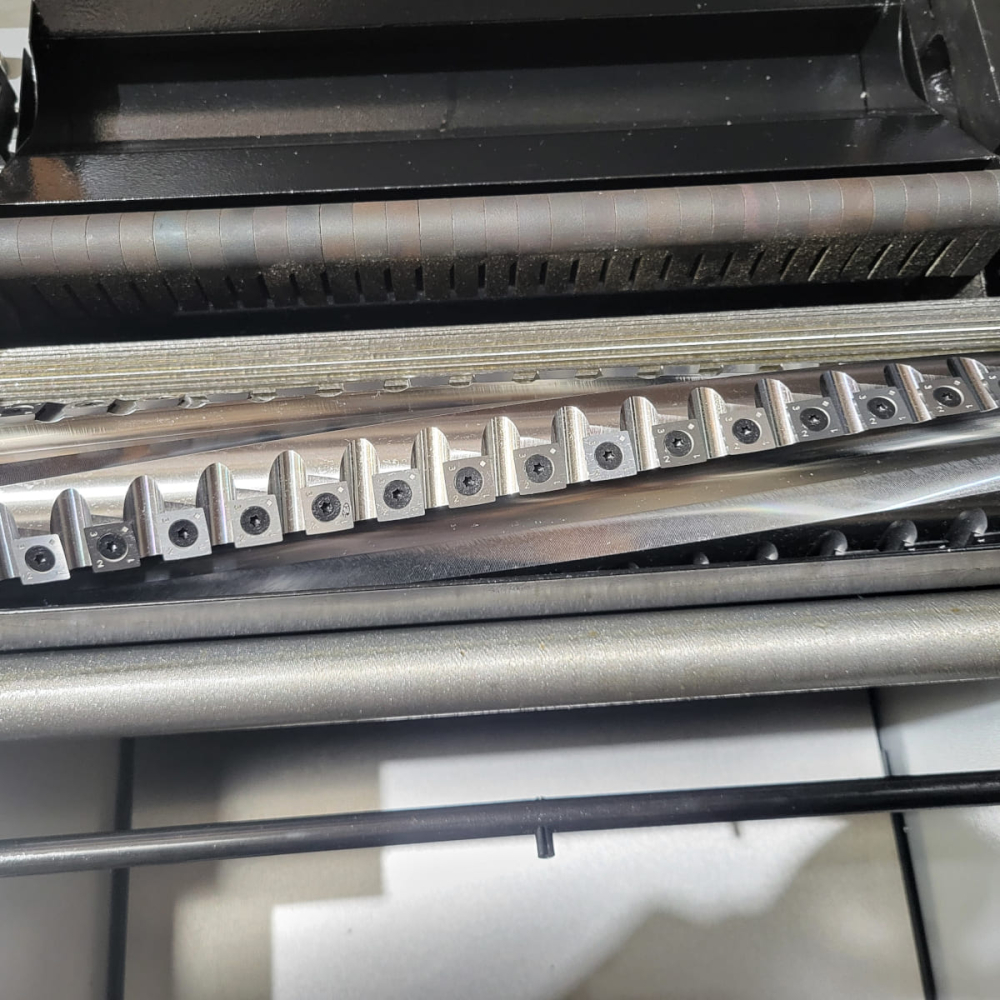

At the heart of the machine is a spiral cutter block with 4 rows of spur cutters, arranged so that they cut in a shearing action, rather than straight. This type of cutter block is more expensive than a conventional set up, but does offer several advantages. The more use the machine gets Ð the more these advantages pay off.

Advantages of spiral cutters over conventional knives:

Shearing Cut = Better finish. Expect a smoother finish in softwood, hardwood and difficult grain.

Low Sound Levels = Less noise by up to 50%. Each blade is moving less air and taking a smaller cut.

More Knives = Reduced energy consumption. Each cut uses less energy, overall saving can be 30%.

TC (Tungsten carbide) Cutters = longer cutter life, up to 10 times compared to HSS. Each cutter can be rotated when worn.

Less Maintenance = Quick and easy to change out 1 or 2 cutters after a chip.

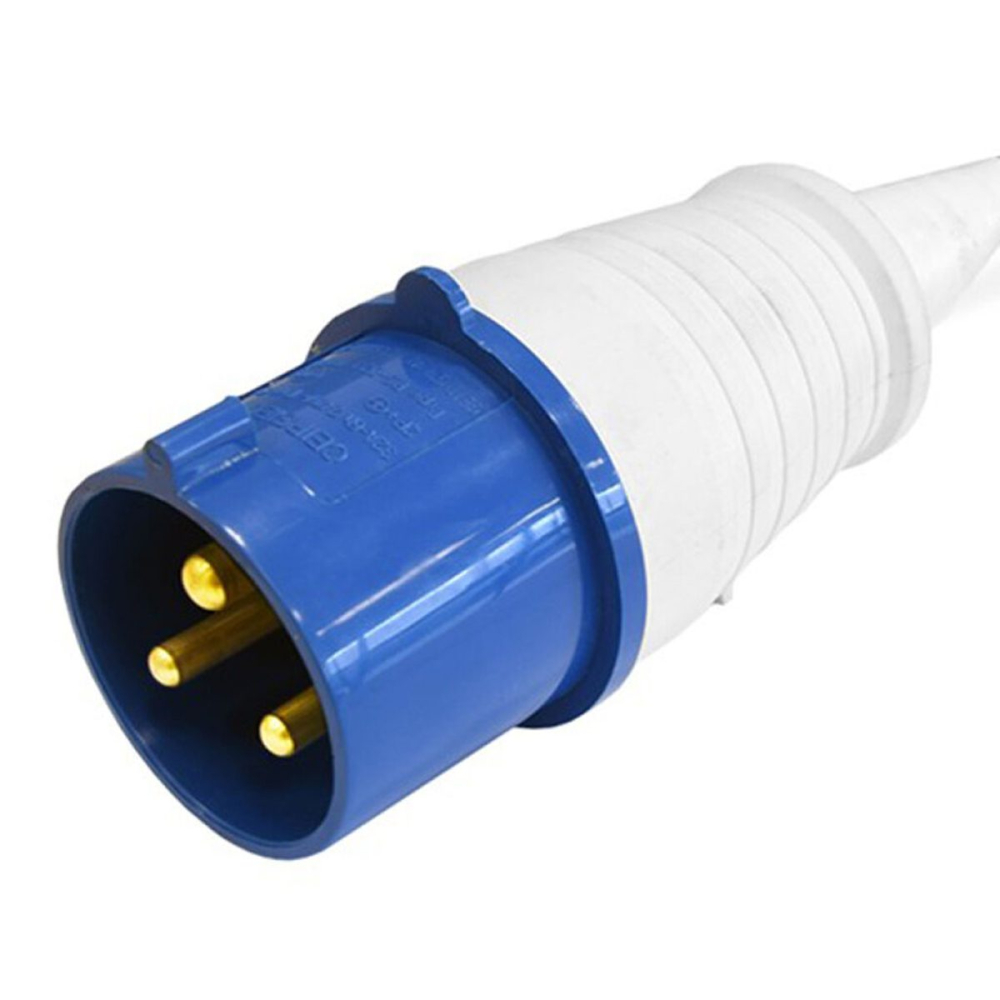

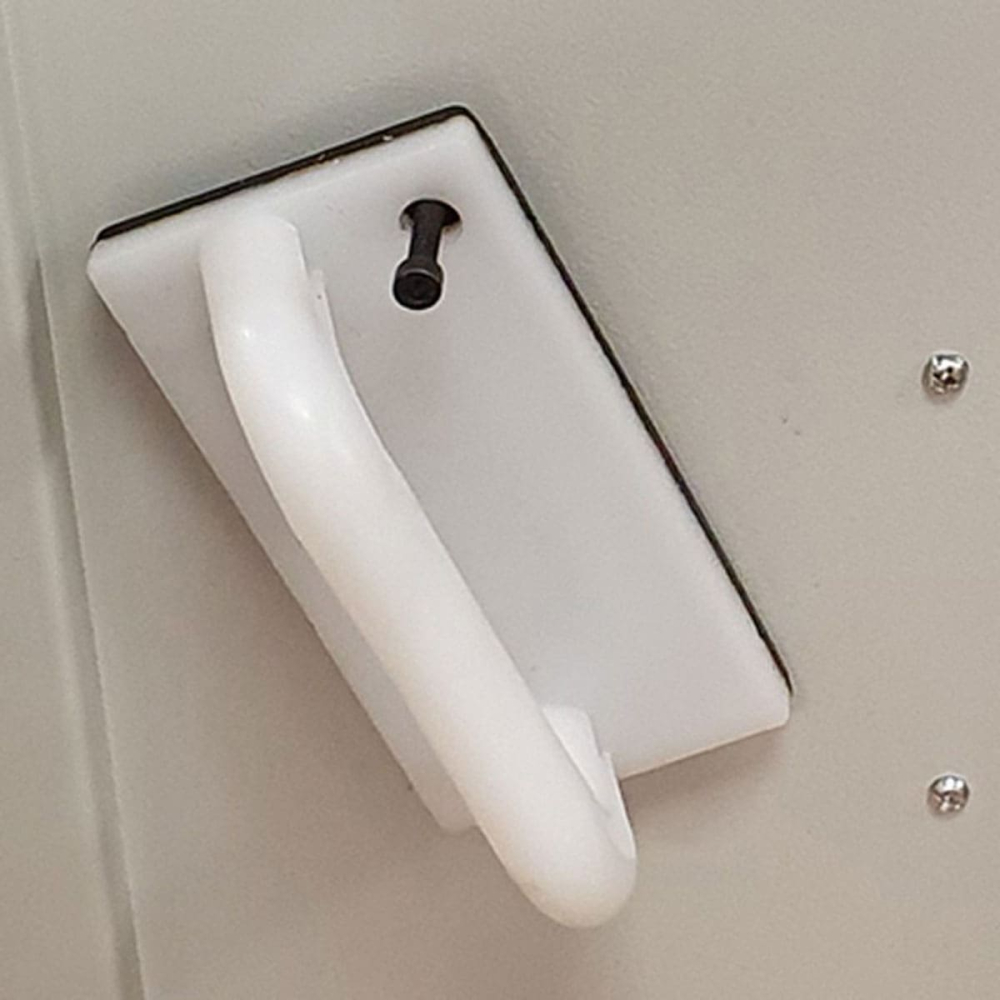

Supplied with 5 spare TC cutters, 100mm diameter dust extraction outlet, push pad, service tools, 2.4m power cable and 16amp industrial blue plug.

This machine requires a 16amp supply and it is recommended that a C Type breaker is used.

It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.

Specification

Includes a 5 year manufacturers guarantee.
