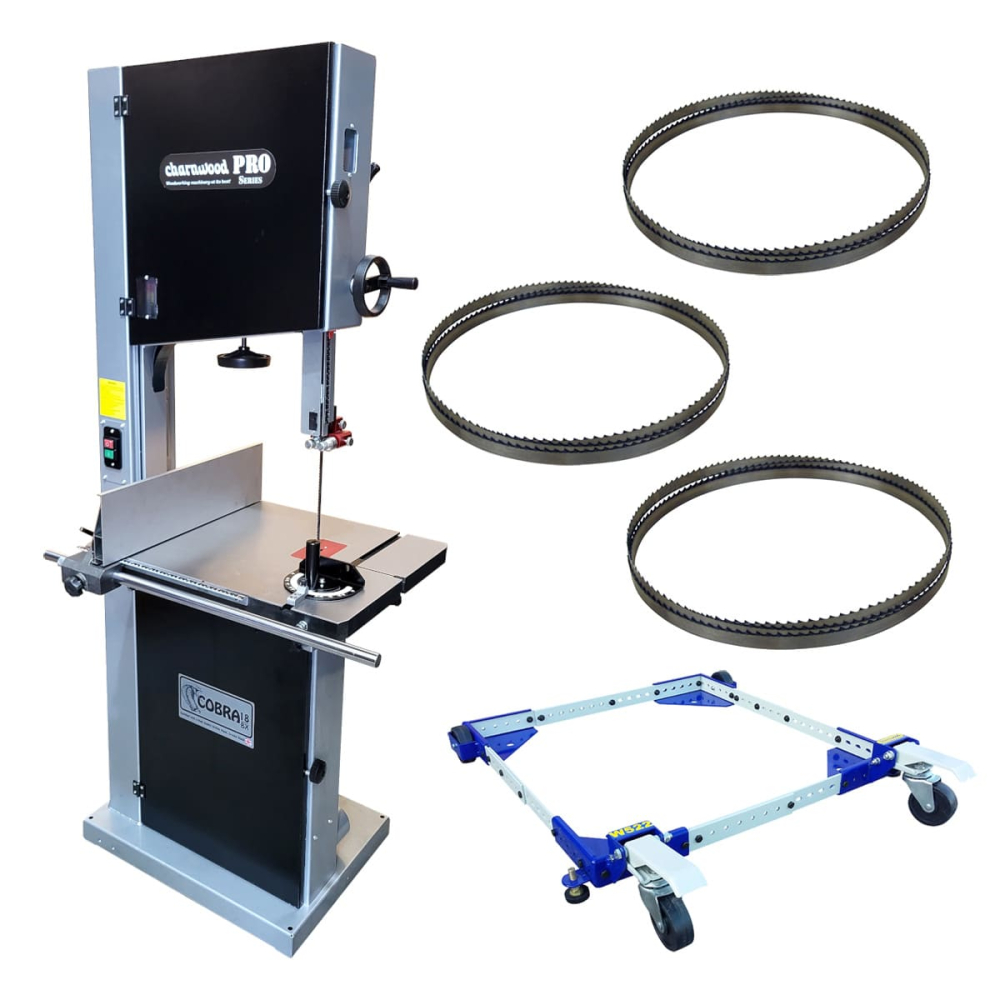

Package Includes:
- C18BX 18" Bandsaw 16" Cutting Depth
- 18BX06 Woodpecker Blade 3673mm x 6mm (1/4") x 6tpi
- 18BX10 Woodpecker Blade 3673mm x 10mm (3/8") x 4tpi
- 18BX27 Woodpecker Blade 3673mm x 27mm (1") x 3tpi
- W522 Wheel Base

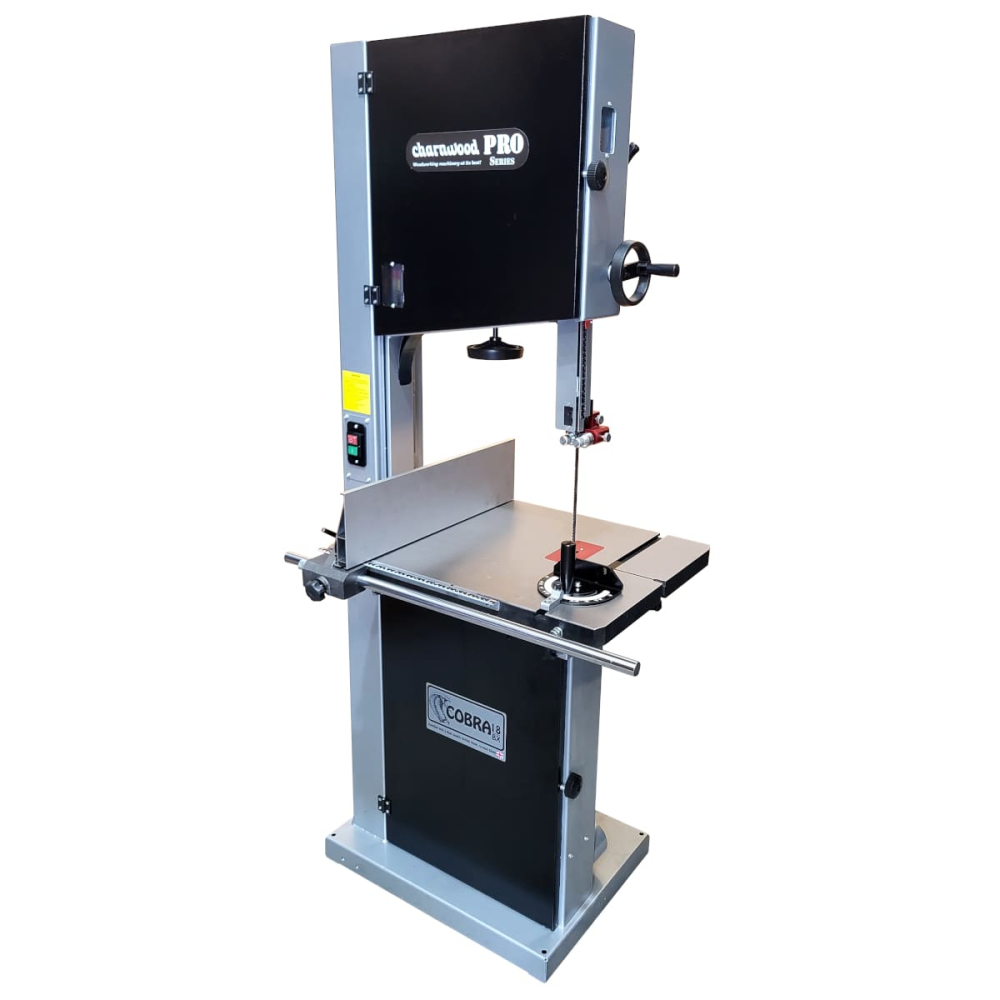

The Cobra bandsaw is modelled on the Laguna 18/BX, but specifically designed for the UK market. It has a one piece frame construction to minimise distortion when the blade is fully tensioned.

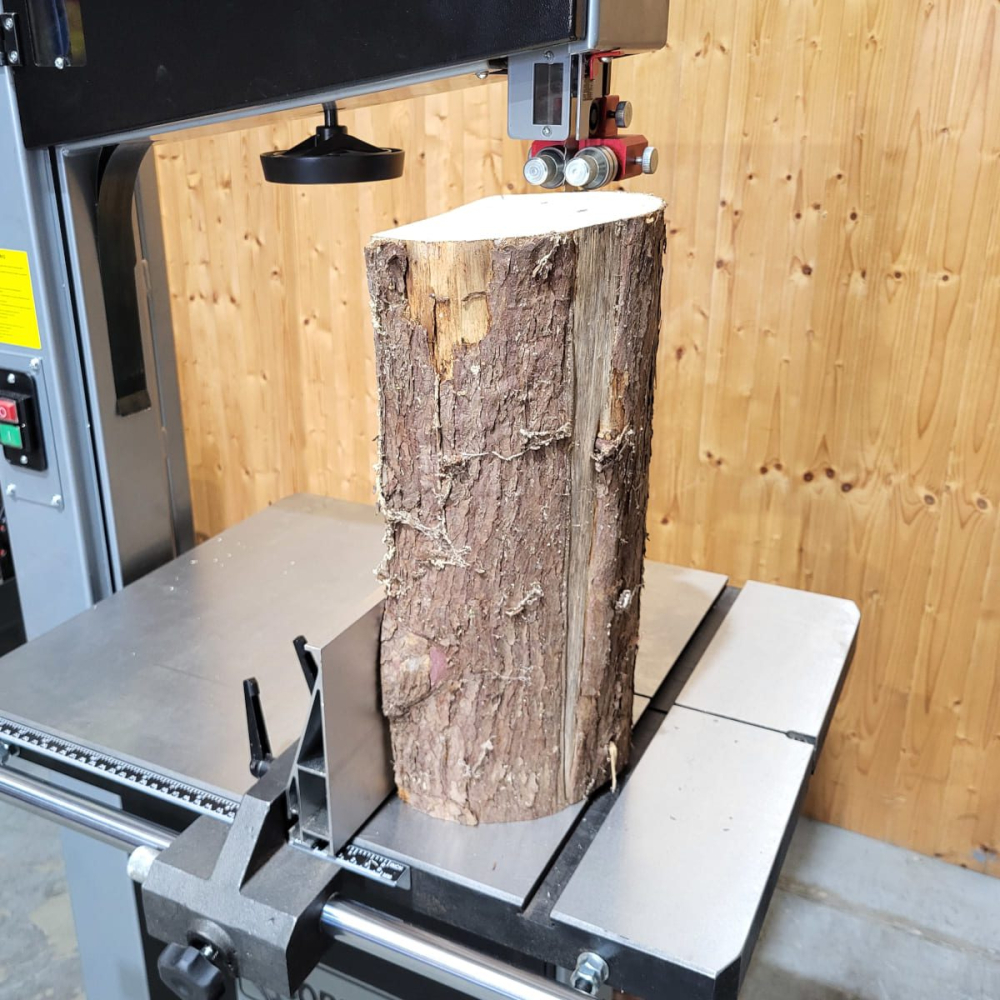

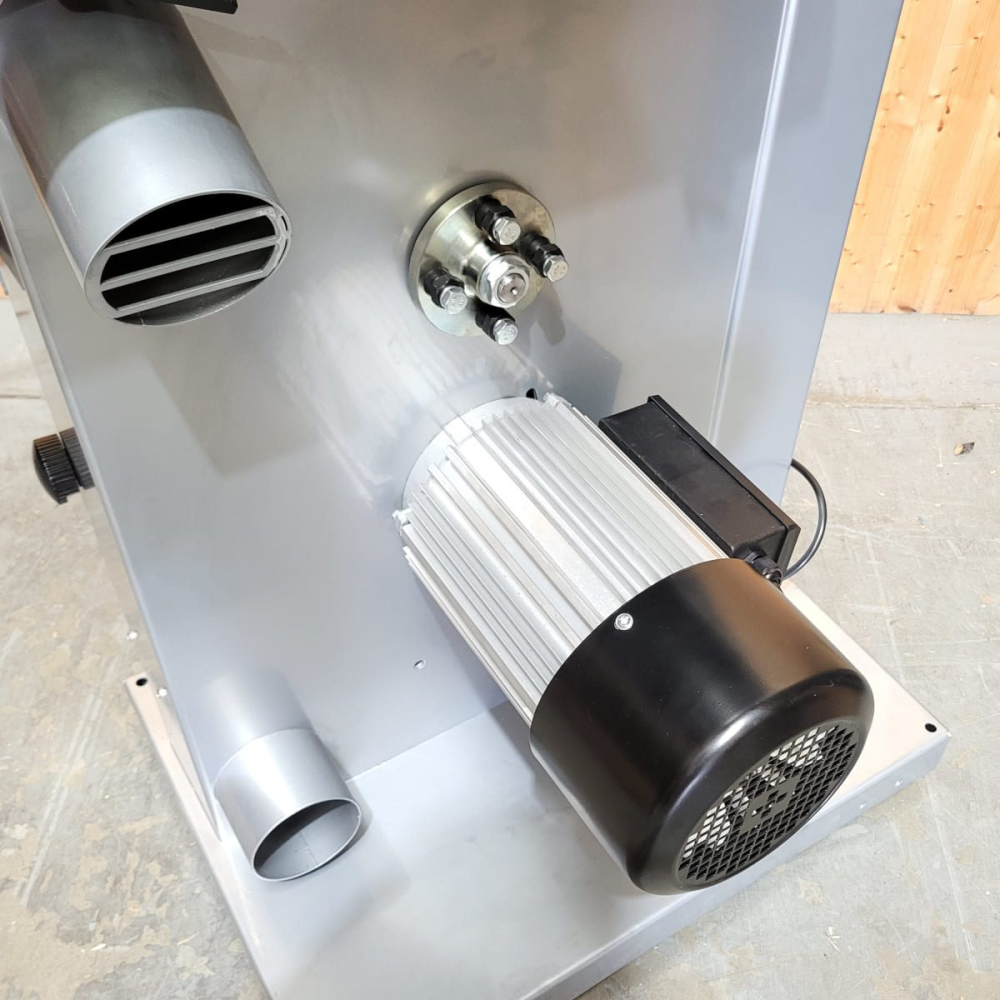

The mighty 3000w induction motor provides the power to use the full 16" cutting depth. An internal brake quickly brings the blade to rest when the stop button is pressed.

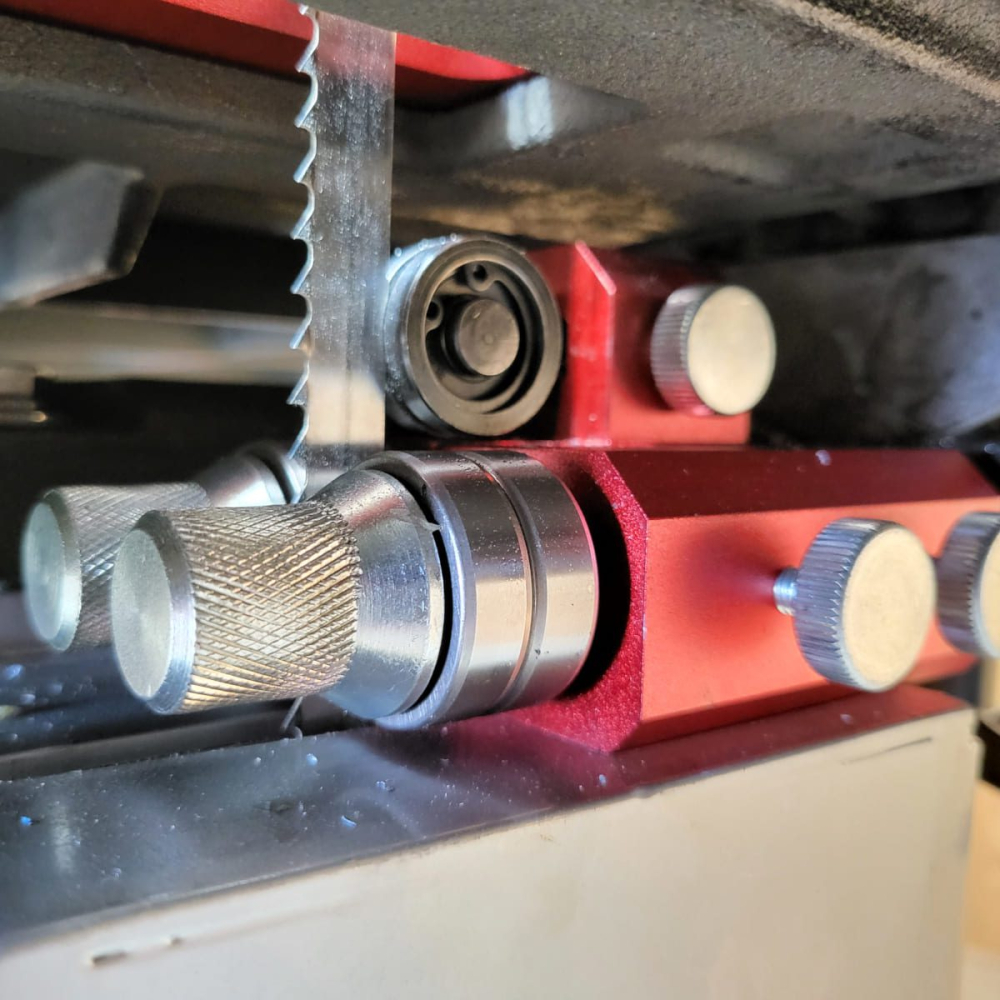

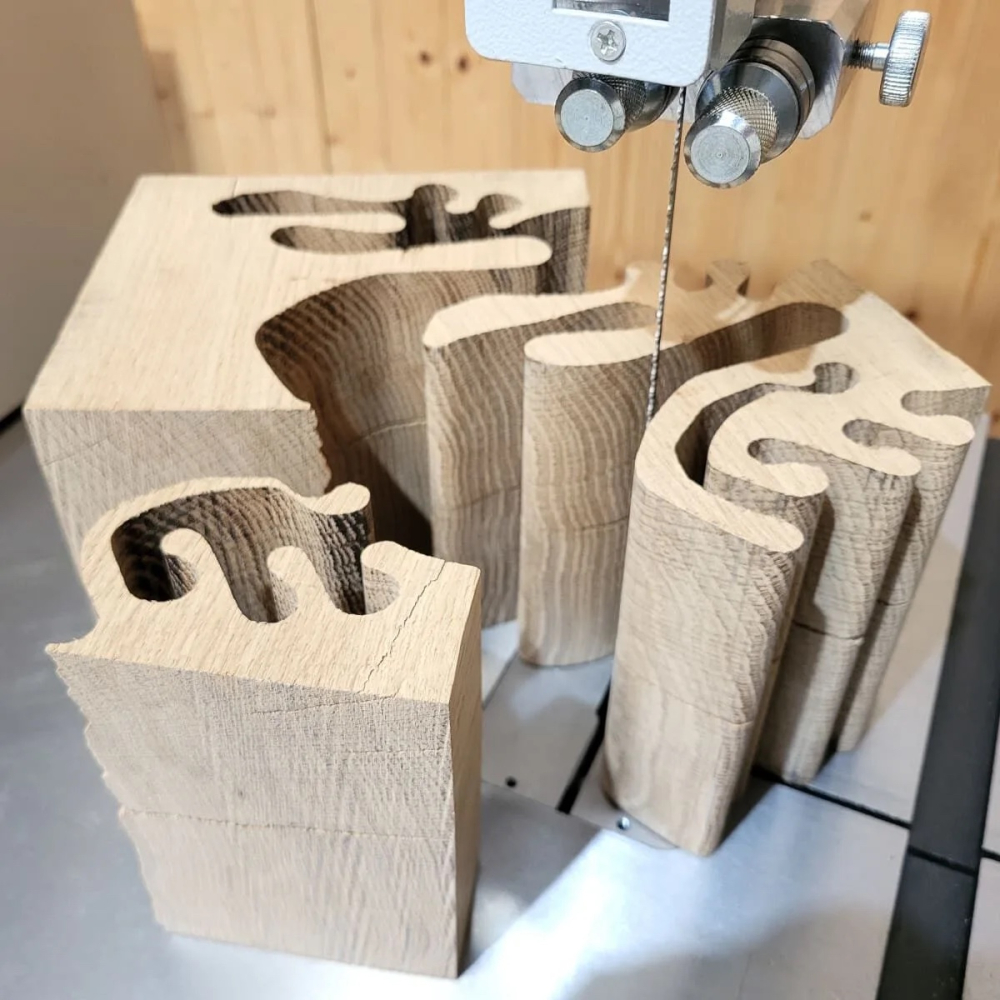

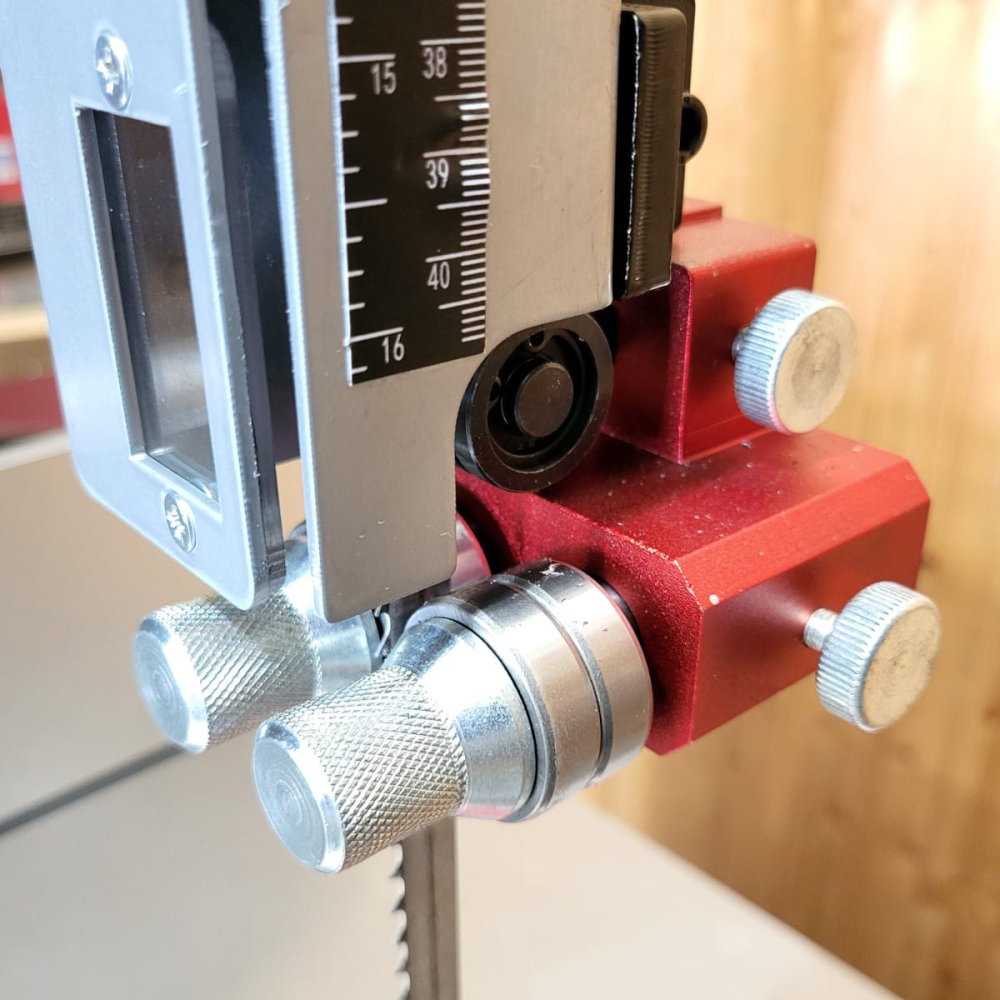

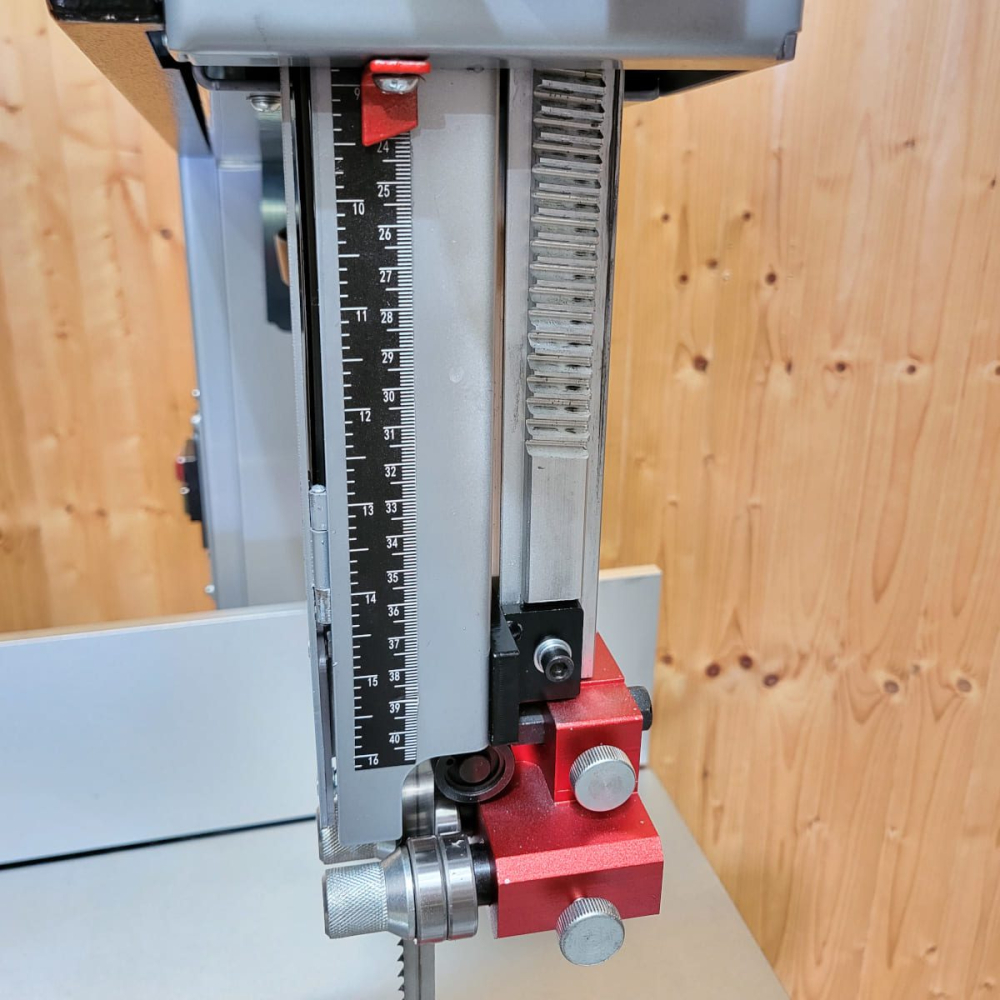

The blade guide system has 5 sealed bearings at the top and 5 underneath the table. Each side of the blade there are 2 bearings allowing for greater support when using wider blades. The rear bearing has a groove in the centre which allows a 3mm blade to be used for Scroll work. All of the bearings have tool free adjustment making the Cobra bandsaw one of the easiest bandsaws on the market to set up.

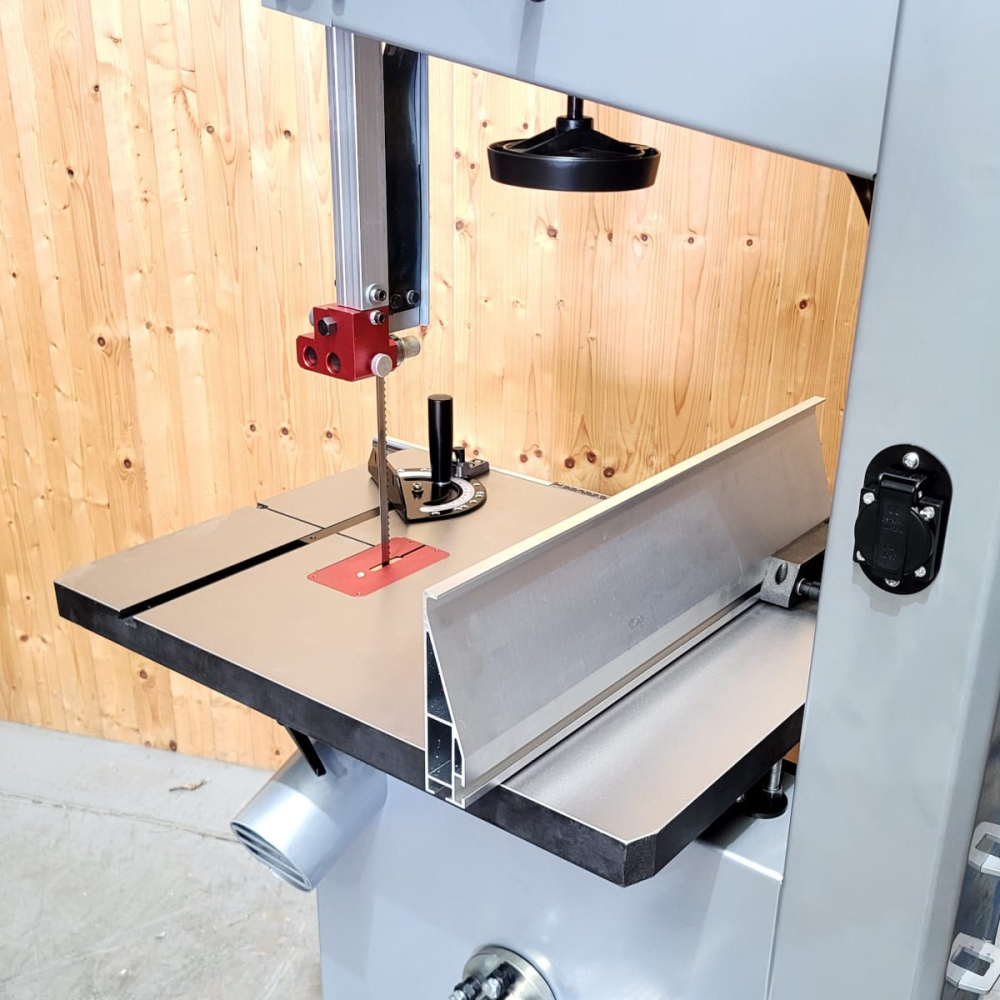

When additional light is required on the job, the C18BX has a built-in power socket which can be used to power our optional ML28 LED light.

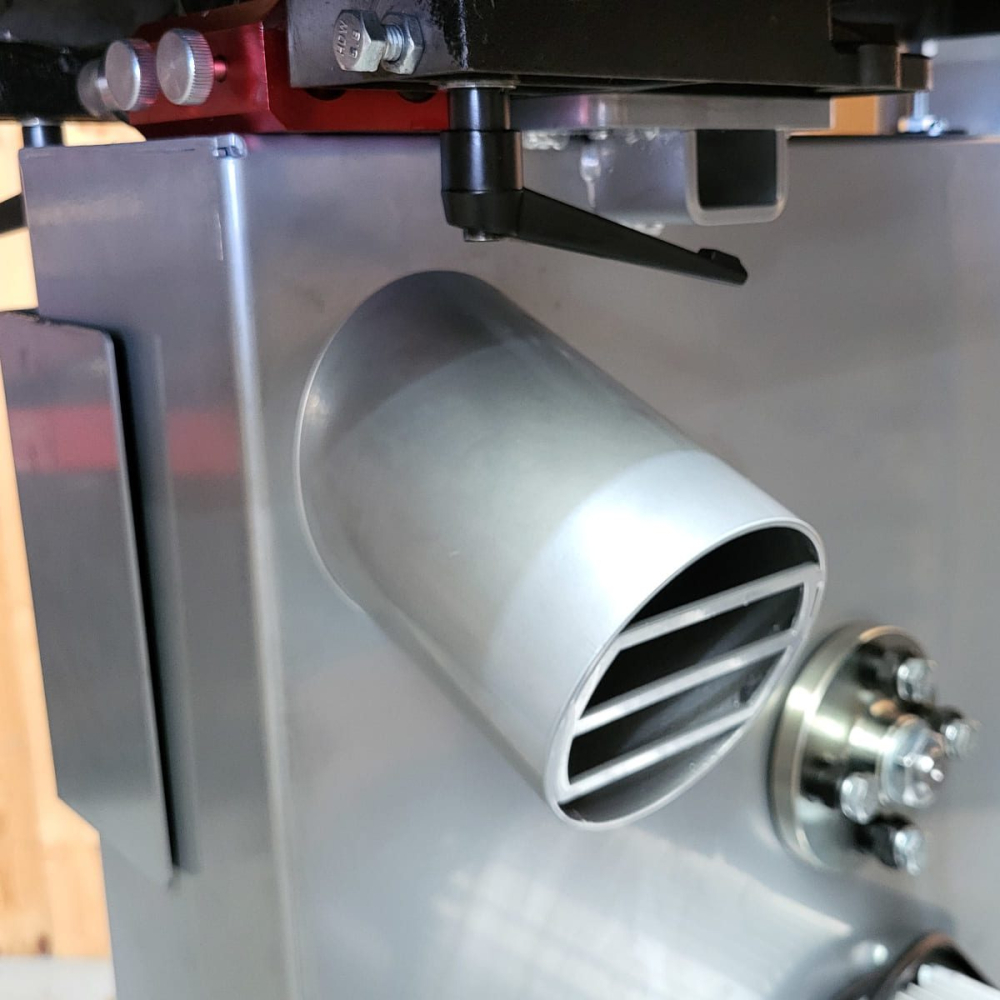

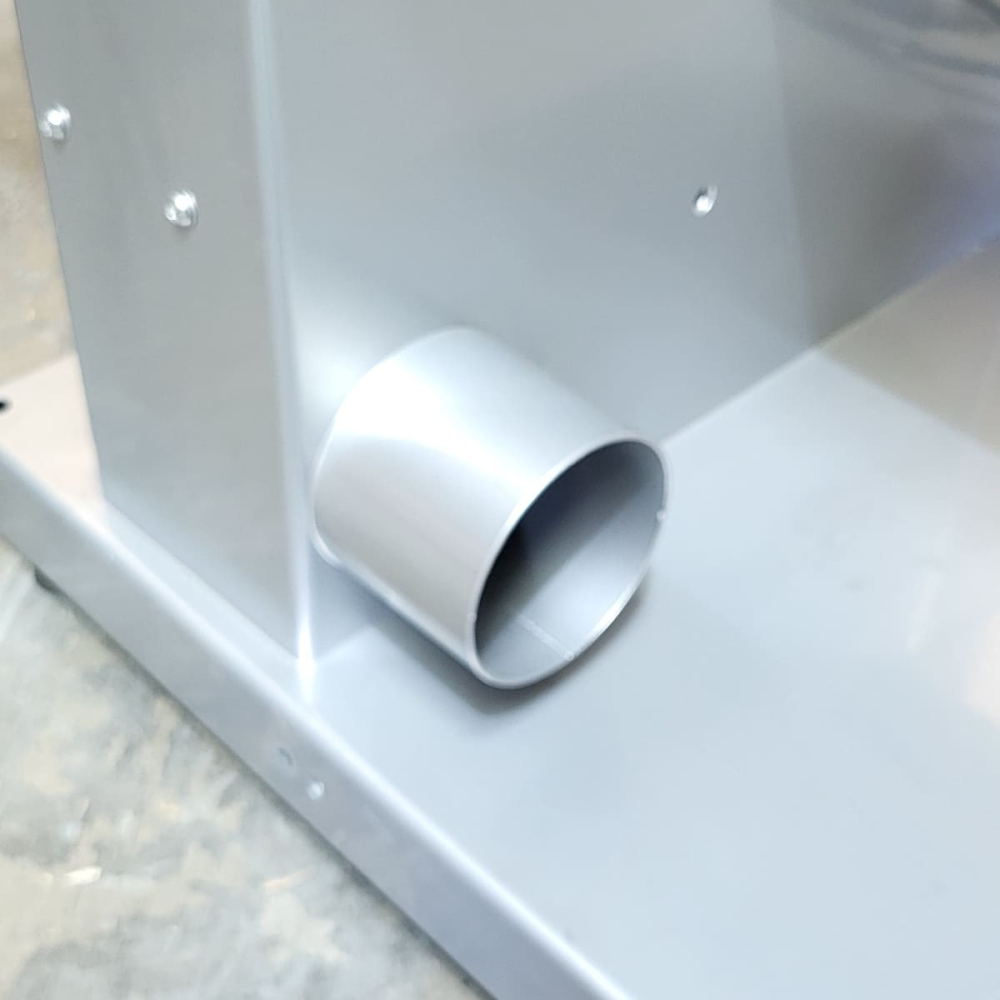

Efficient dust extraction is achieved through 2 x 100mm (4") diameter outlets, one located just underneath the table and one at the base. A deflector sends the dust into the upper collection port before it comes into contact with the lower wheel and other moving parts – extending their lifespan.

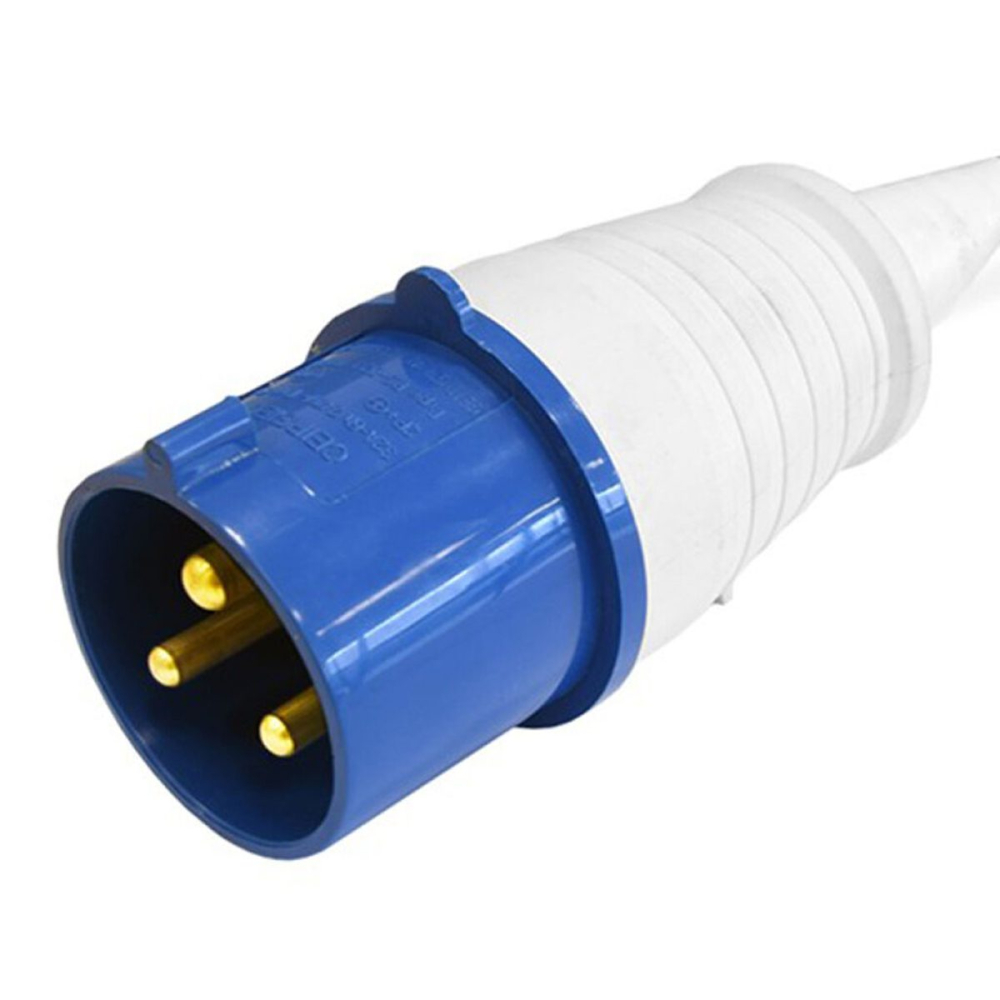

Supplied with British made 13mm blade, push stick, mitre guide, 1.9m cable with industrial 16 amp plug.
Specification
| Maximum Cutting Depth | 400mm (16") |
| Throat Width | 460mm (18") |
| Max. Cutting Width Using Fence | 400mm (16") |

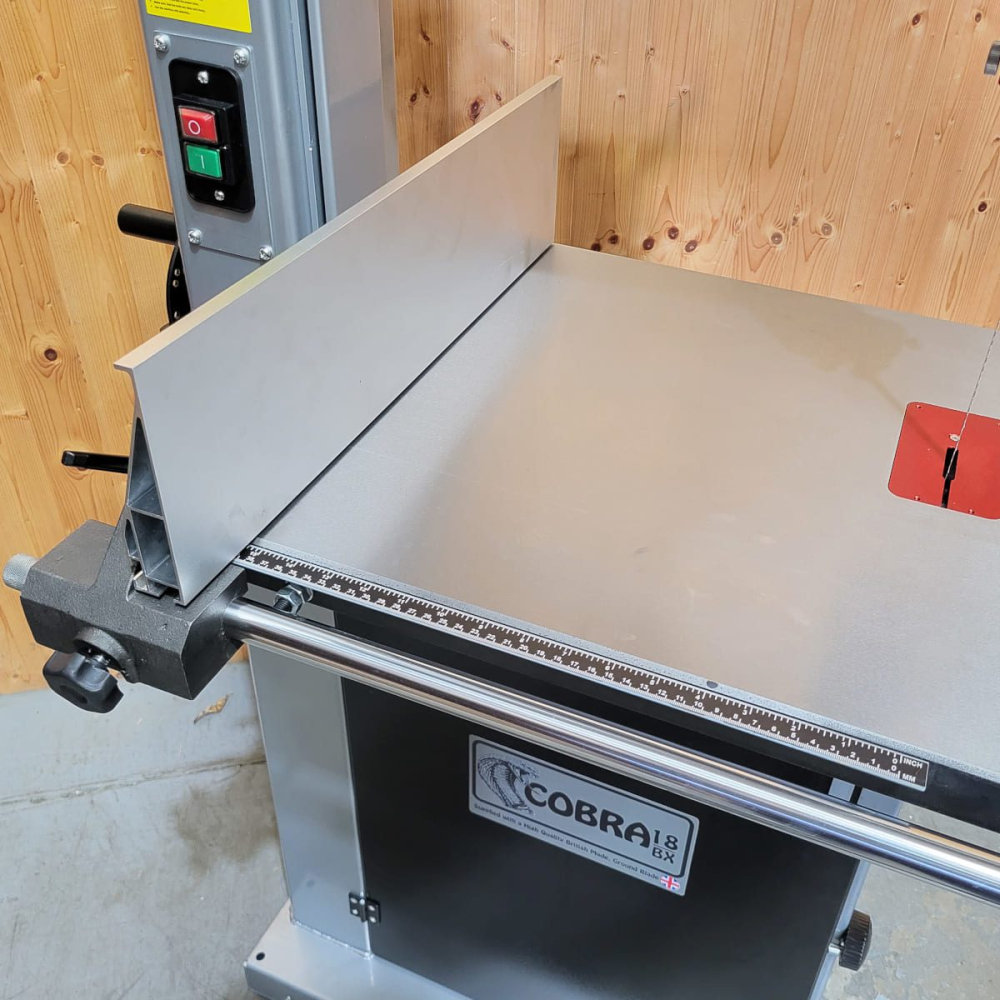

| Table Size (Cast Iron) | 500mm x 660mm |
| Table Height | 965mm |

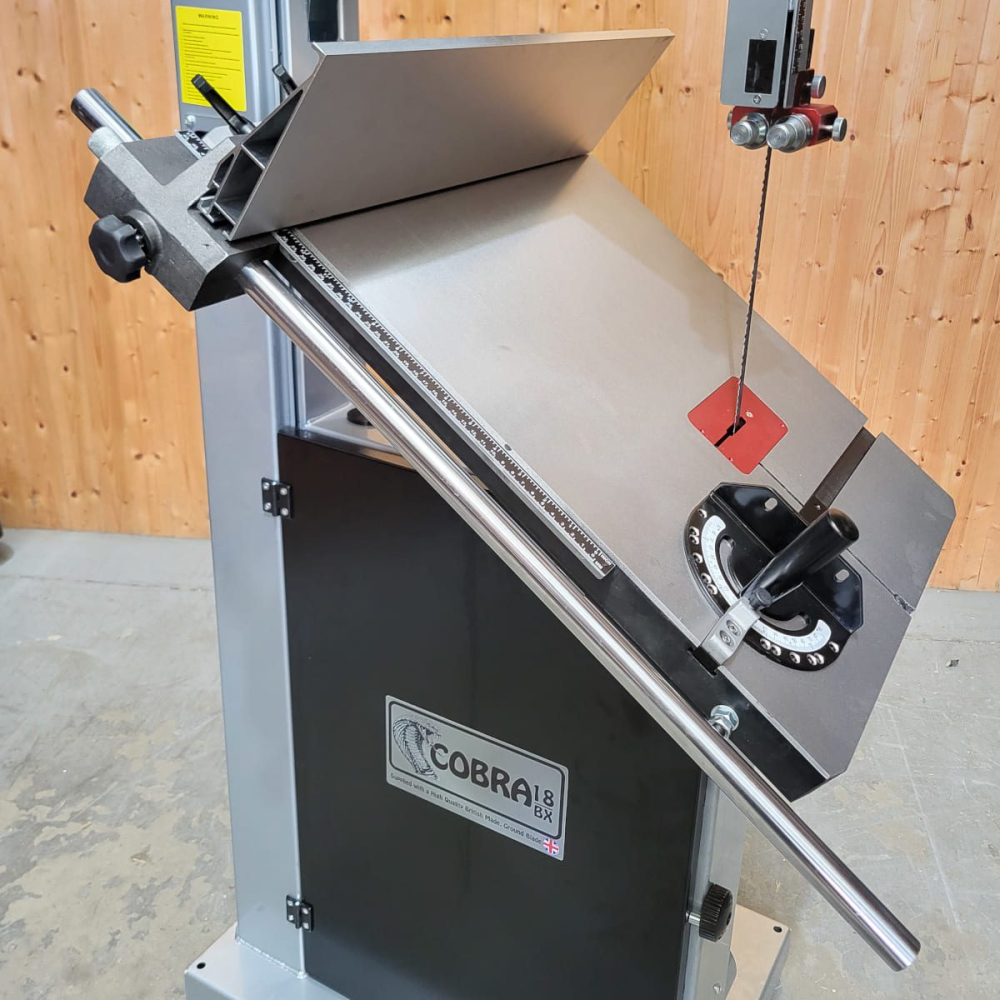

| Table tilt | -7 degrees to +45 degrees |
| Mitre Guide T-Slot | 19mm to 25mm (3/4" to 1") |

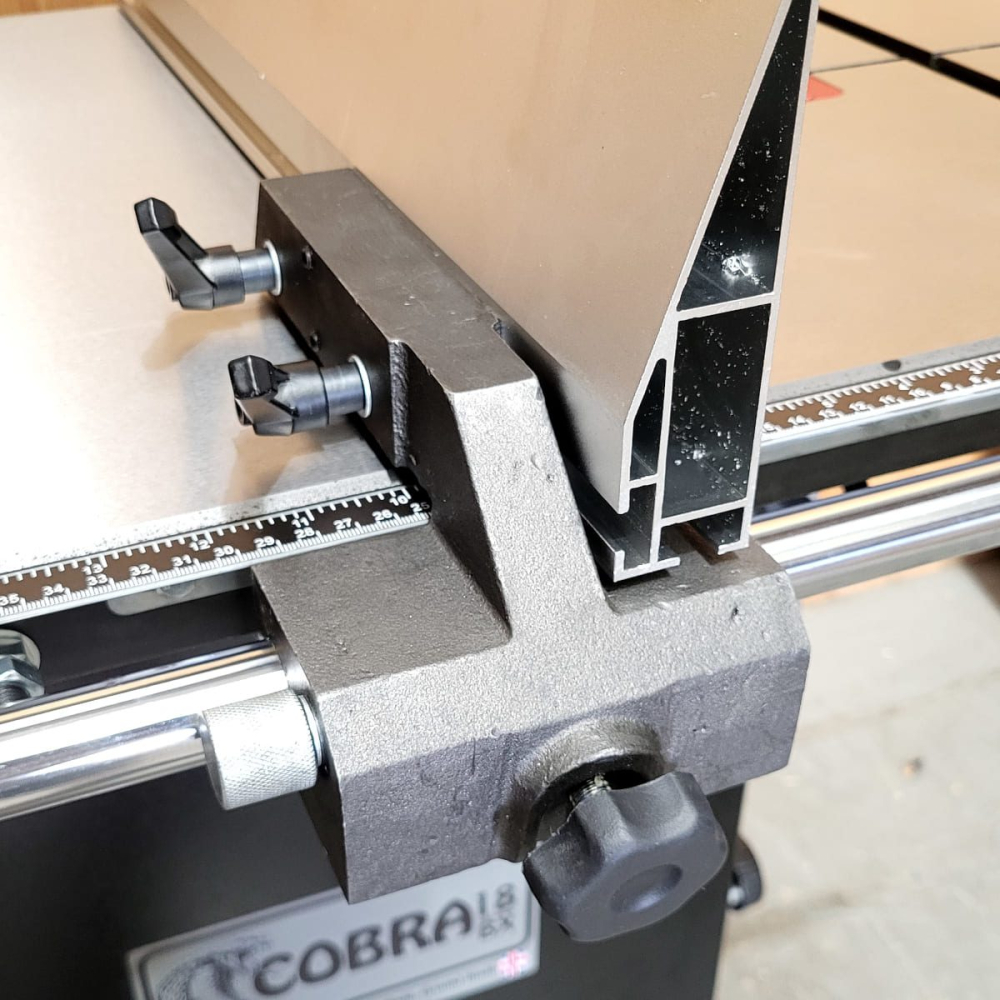

| Fence Height ( Hi / Lo ) | 155mm / 12mm ( 6" / 1/2" ) |
| Motor Input Power | 3000w (4hp) / 240v / 50hz |
| Motor Output Power | 2200w (3hp) / 240v / 50hz |
| Recommended Breaker Size | 16 Amp (Type C) |
| Blade length | 3673mm (144.6") |
| Blade widths | 3mm (1/8") to 27mm (1") |
| Blade Speed | 865 m/min |
| Blade Guide (Above and Below Table) | 5 Sealed Bearings |
| Dust Collection Outlet (x2) | 100mm (4") |
| Min Extraction Airflow Required | 1200m3/hour |
| Assembled Dimensions (WxDxH) | 1040mm x 830mm x 2060mm |
| Shipping Dimensions (WxDxH) | 2040mm x 670mm x 770mm |
| Weight | 214kg |
| Assembly Time Required | 30 Minutes (Needs 2 people) |
| Rating | Trade |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
