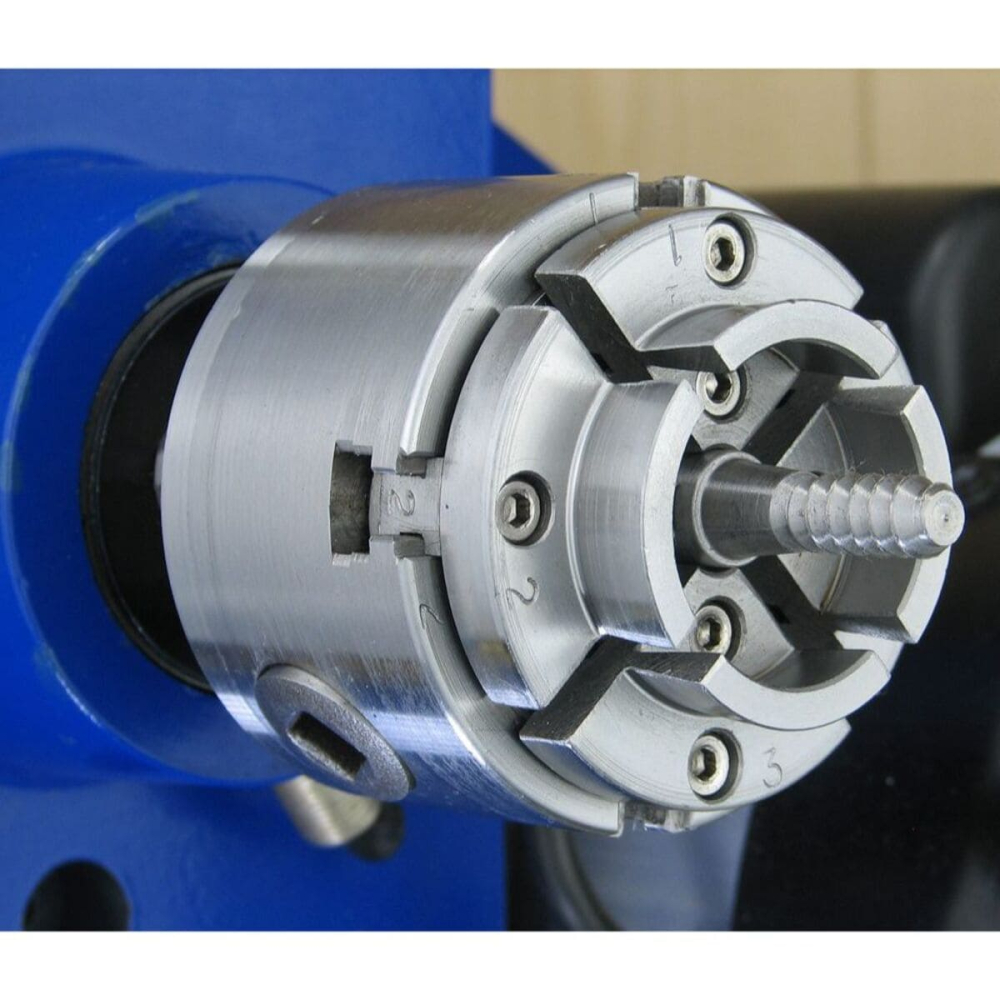

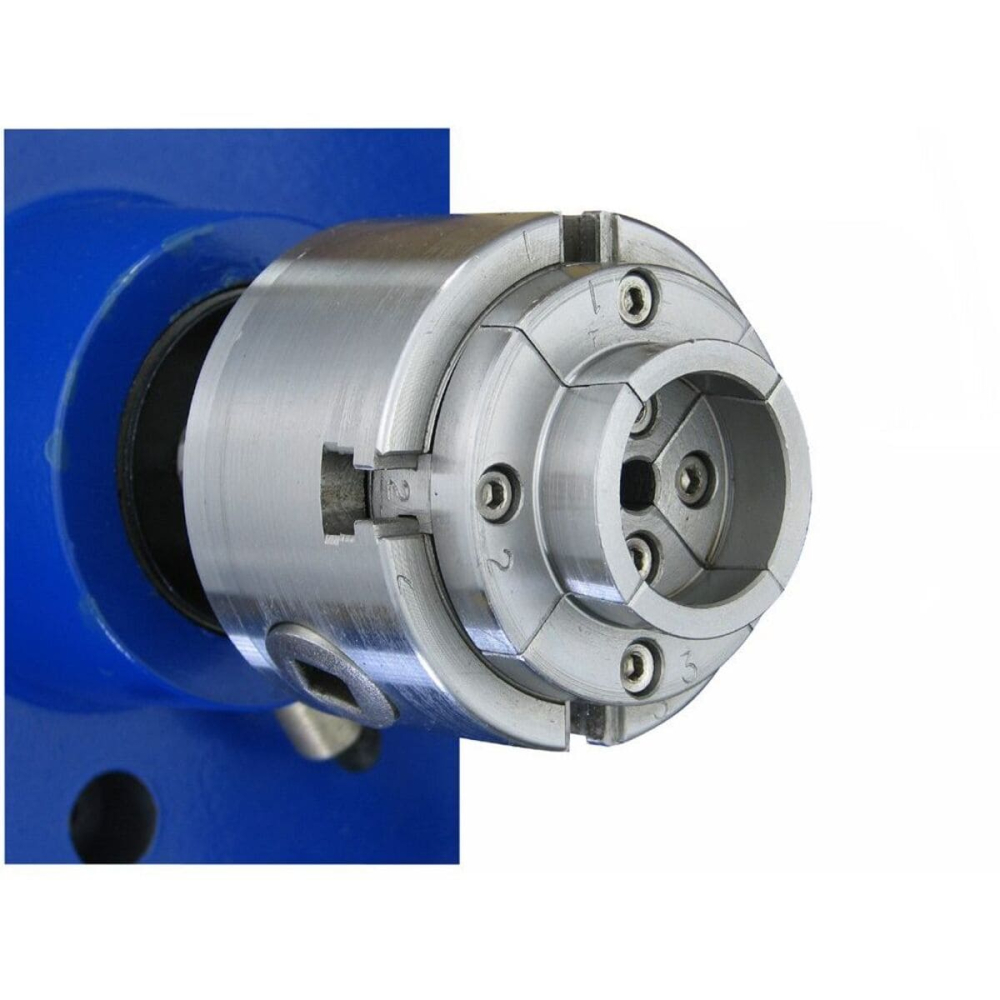

4 Jaw scroll chuck for woodlathes. The Viper2 is a compact scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Mini and Midi sized lathes.
The standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned. The chuck fits directly onto lathes with headstock thread size 1'' x 8tpi.

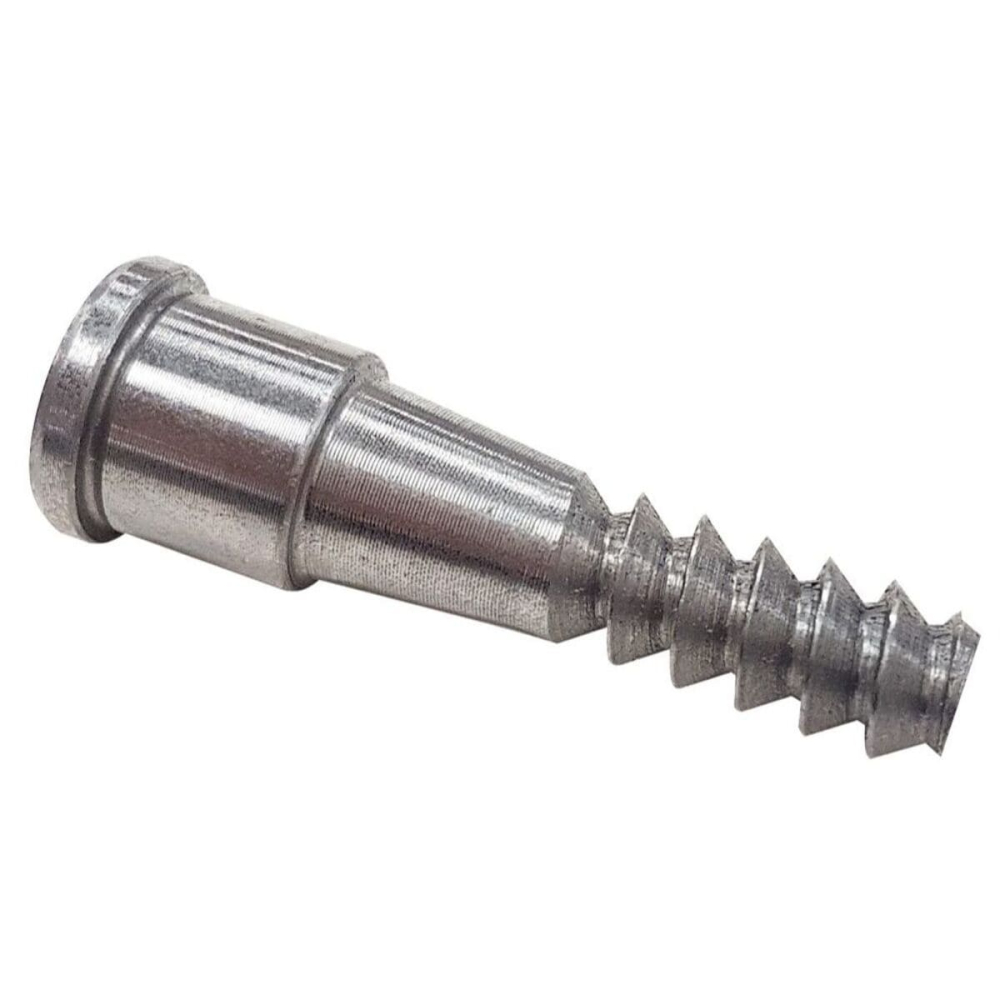

We also include a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.

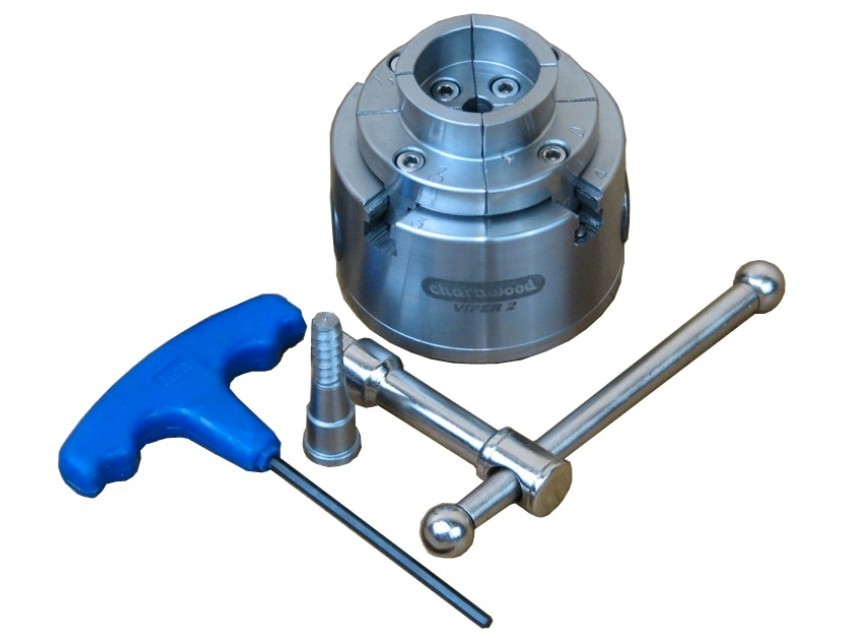

Supplied with dovetail jaws, wood screw, T-bar for locking the jaws and T-handled hex key for swapping the jaws. We have an extensive range of optional jaws and accessories available for the Viper2 woodturning chuck.
Specification
| Chuck Body Diameter | 70mm |
| Depth of Thread | 30mm |
| Jaw Movement | 24mm |

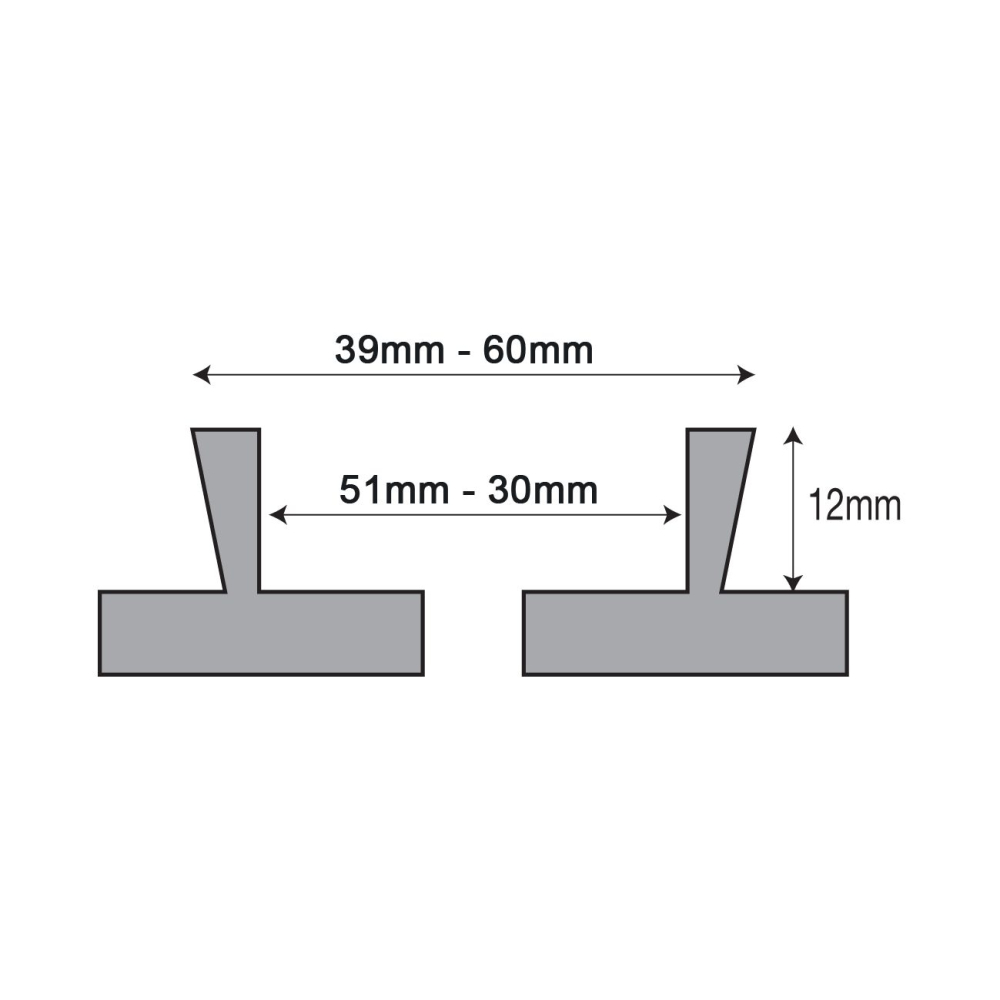

| Standard Dovetail Jaw Expands from | 38mm to 62mm |
| Standard Dovetail Jaw Contracts from | 54mm to 30mm |
| Direct Thread | 1'' x 8tpi |
| Weight | 1050g |
| | |
