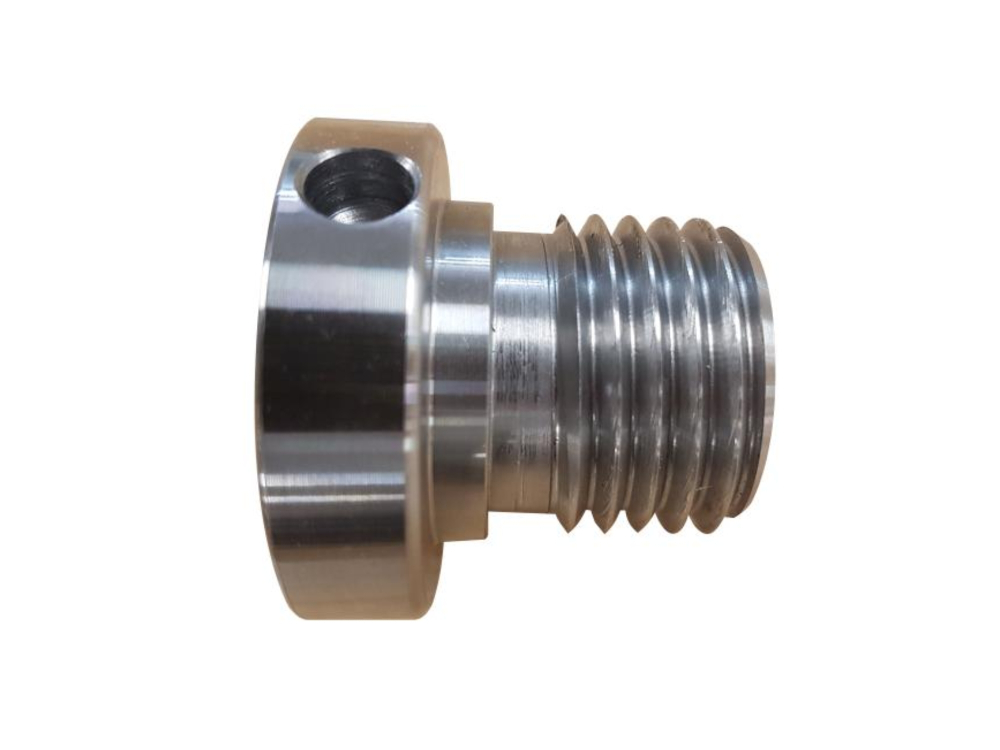

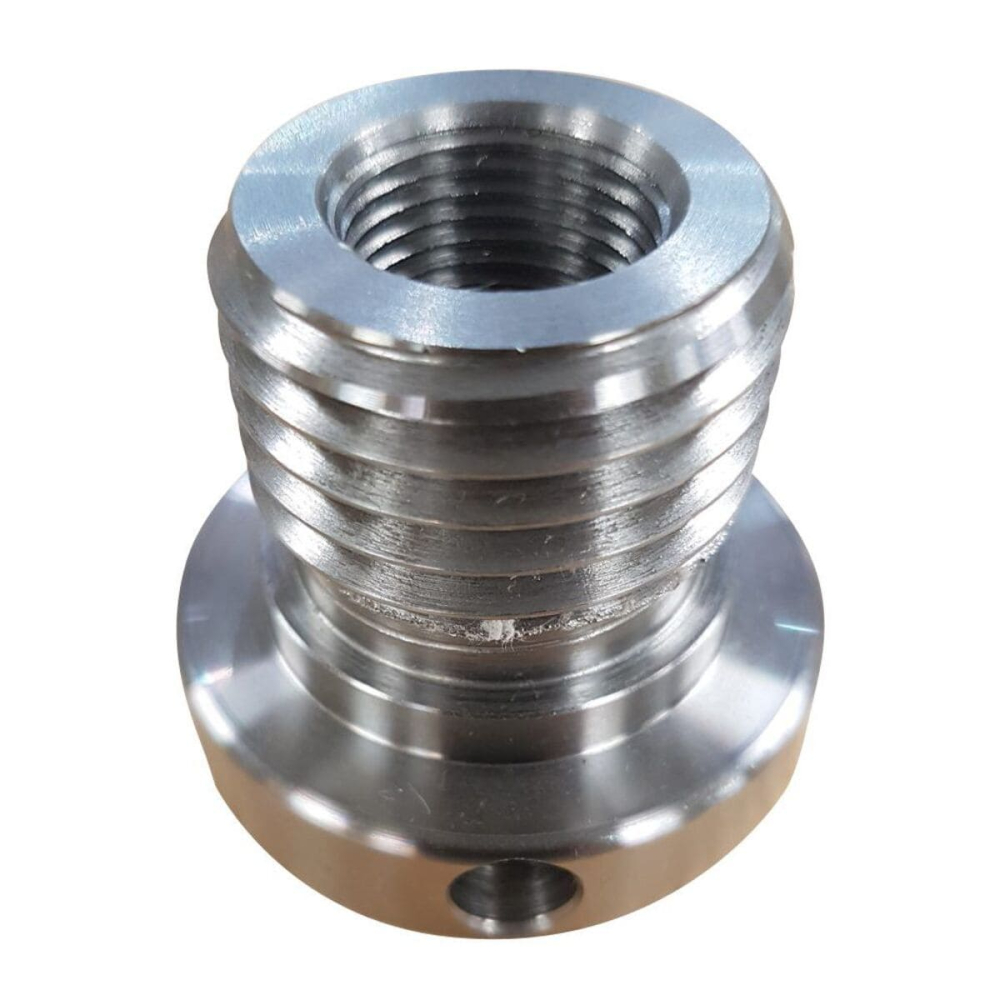

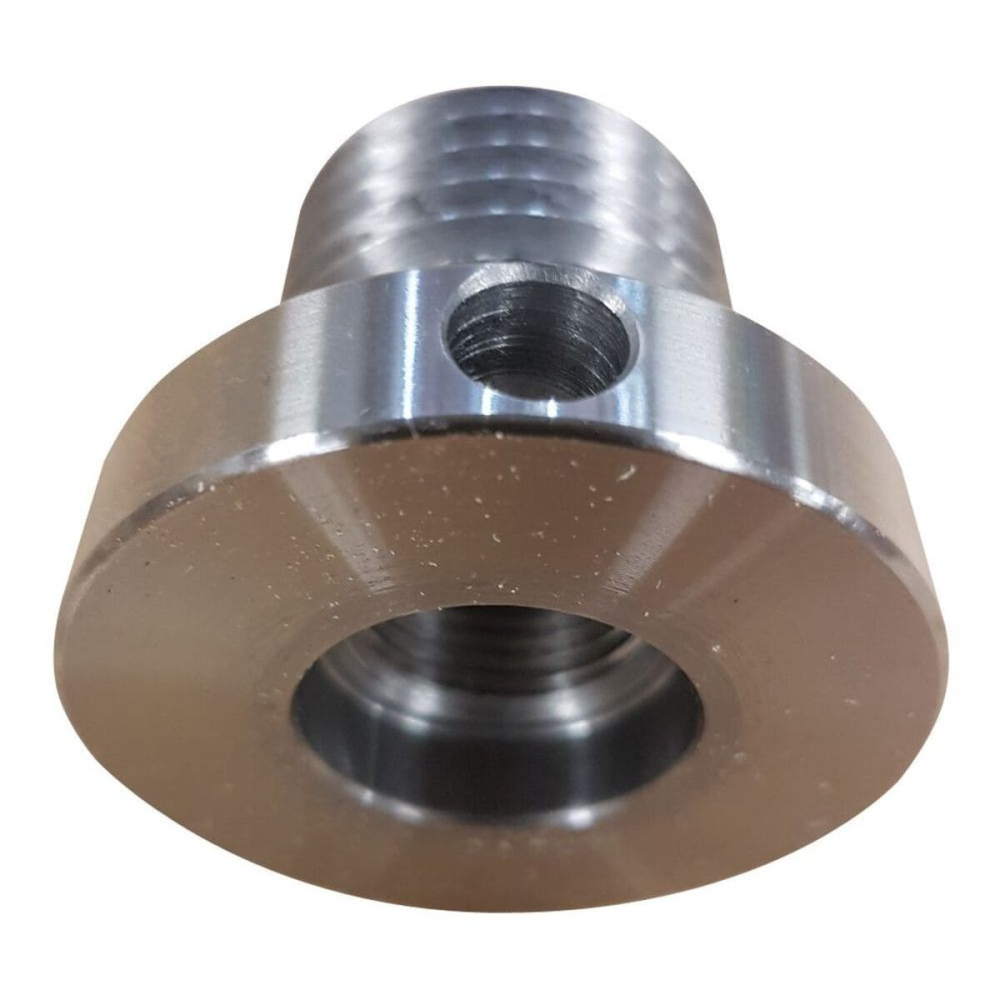

Headstock thread adapter.
To fit onto a lathe with 1" x 8tpi headstock thread.
To mount a scroll chuck (or face plate) with M33 x 3.5mm thread.
Suitable for use with Charnwood Scroll Chucks Nexus3, Viper3 & Viper5. Plus any other brand with a M33 x 3.5mm thread.
Includes 2 x 8mm diameter holes to aid tightening or removal with a knock out bar.
Specification
| Adapter Type | Insert |
| Overall Length | 32mm |
| External Thread Size (Chuck) | M33 x 3.5 |
| External Thread Length | 22mm |
| Internal Thread Size (Lathe) | 1" x 8tpi |
| Internal thread Length | 25mm |
| Register | 7mm |
| Minimum Headstock Thread Length | 30mm |
If you are not sure about the thread size you need, please download the How To guide: Measuring A Lathe Headstock Thread Size
Compatible with the following lathes (among others):
Axminster AWSL
Axminster AWVSL
Axminster AWVSL900
Axminister AWVSL1000
Axminster M900
Axminster M950
Axminster M1000
Axminster M330
Axminster M600
Axminster Perform CCL
Axminster Perform CCBL
Charnwood W860
Clarke CWL20RV
Delta 46-700
Delta 46-451
Delta 46-250
Delta 46-255
Delta Midi
Dominion DTS General
Fox F46-717A
Fox F46-251
General 160
Grizzly G5979
Jet JWL 1220
Jet JWL 1220VS
Jet JWL 1014VSI
Jet JWL 1236
Jet JWL 1014I
Jet JWL 1442
Oneway 1224
Oneway 1018
Poolewood PW16-40
Poolewood 500
Poolewood PW15-90
Poolewood Euro
Scheppach DMS900
Scheppach DMS1100
Scheppach DMT450
Teknatool 1200
Turncrafter Pro
Wadkin SBXL
Warco mini 4026
Woodfast 280
