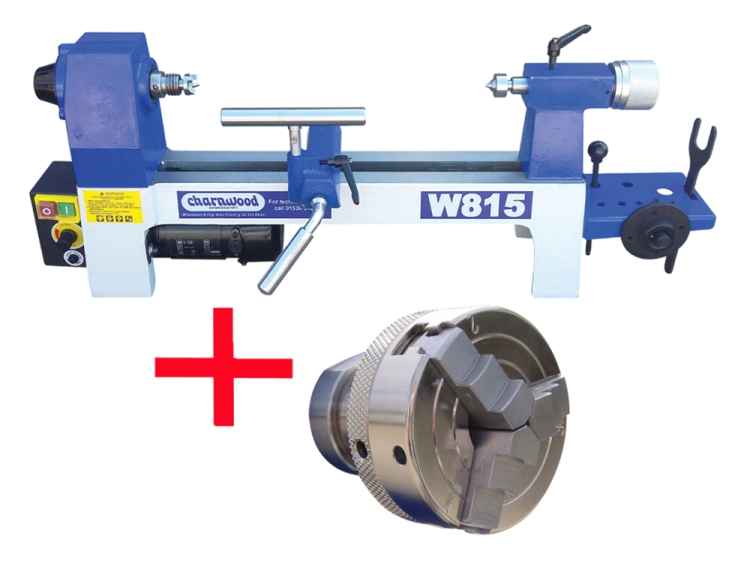

Package Deal Includes: Charnwood W815 Variable Speed Mini Woodturning Lathe & Charnwood W810 3 Jaw Woodturning Chuck 50mm

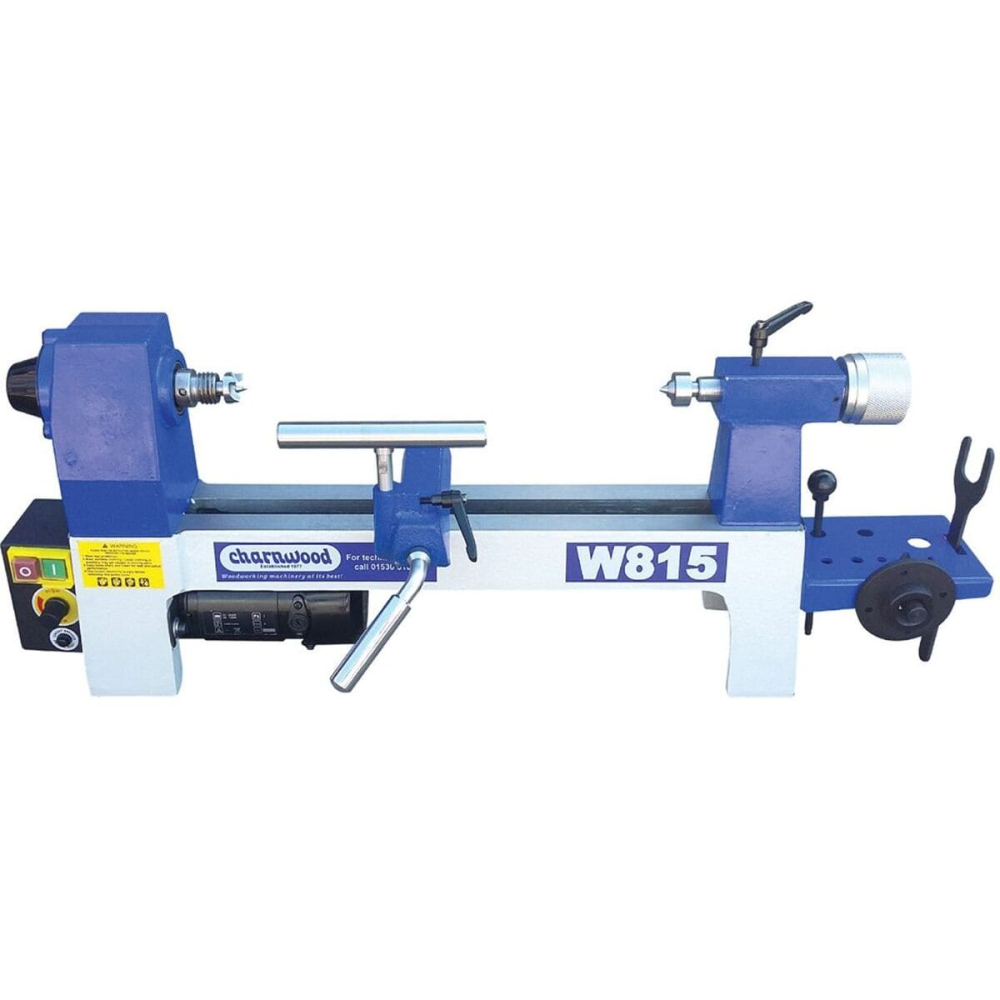

Charnwood W815 Variable Speed Mini Woodturning Lathe
A high quality mini woodworking lathe ideal for the production of smaller pieces or where the workshop size does not allow for a longer bed. Recommended for Pen Turning.
The bed, headstock and tailstock are all constructed from cast iron to give vibration free running but the compact size means the weight is still manageable and the lathe can be removed from the bench when not in use.

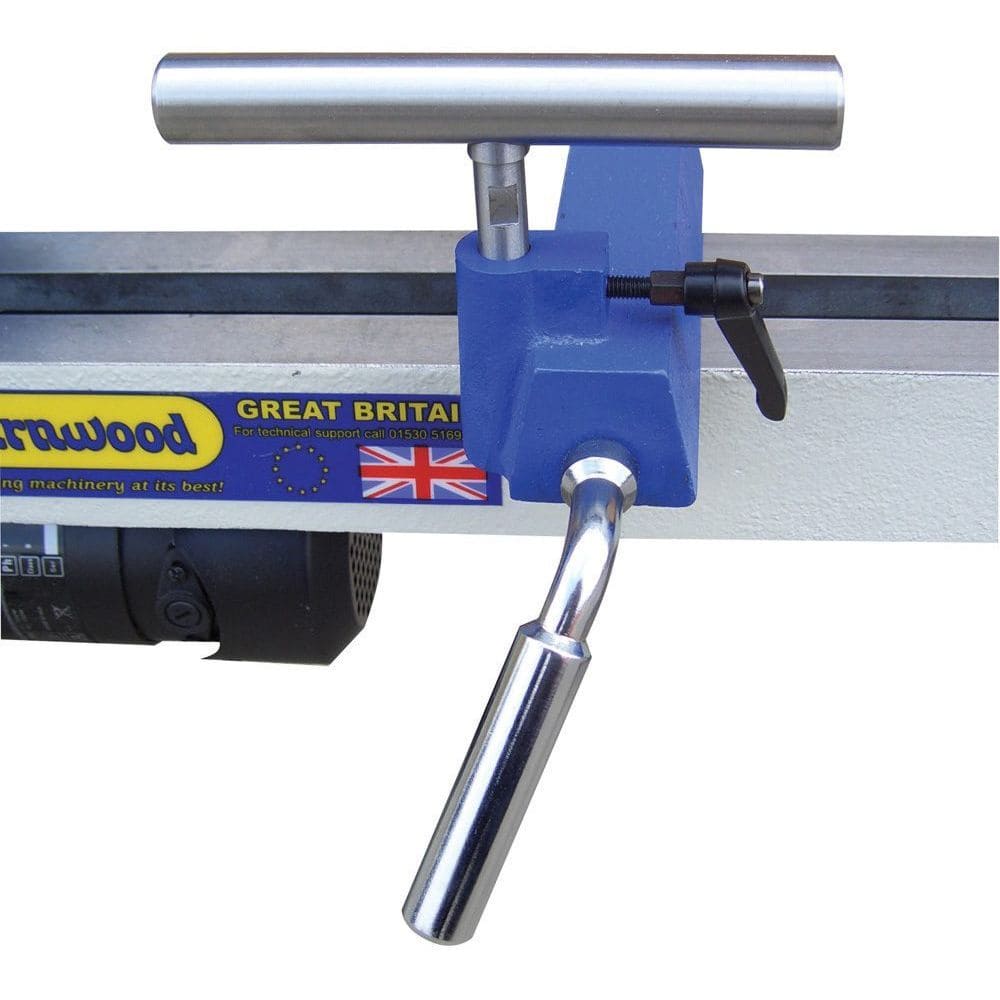

Electronic variable speed control allows the ideal speed to be quickly selected for jobs of any diameter. The new cam lock banjo design is even easier to use, and when coupled with the new round bar tool rest is a winning combination. The tool rest cross bar can be removed from the stem to change the length of the cross bar. Compatible with the Robert Sorby range of cross bars.

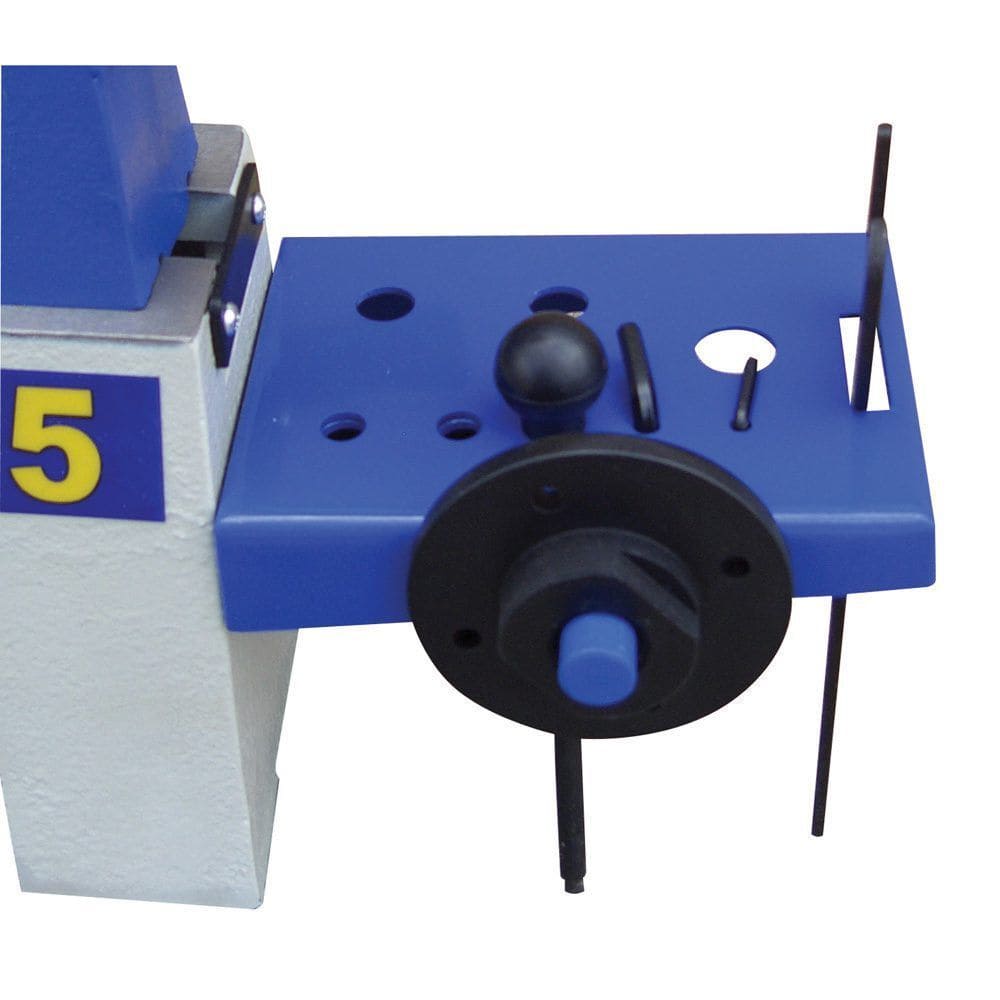

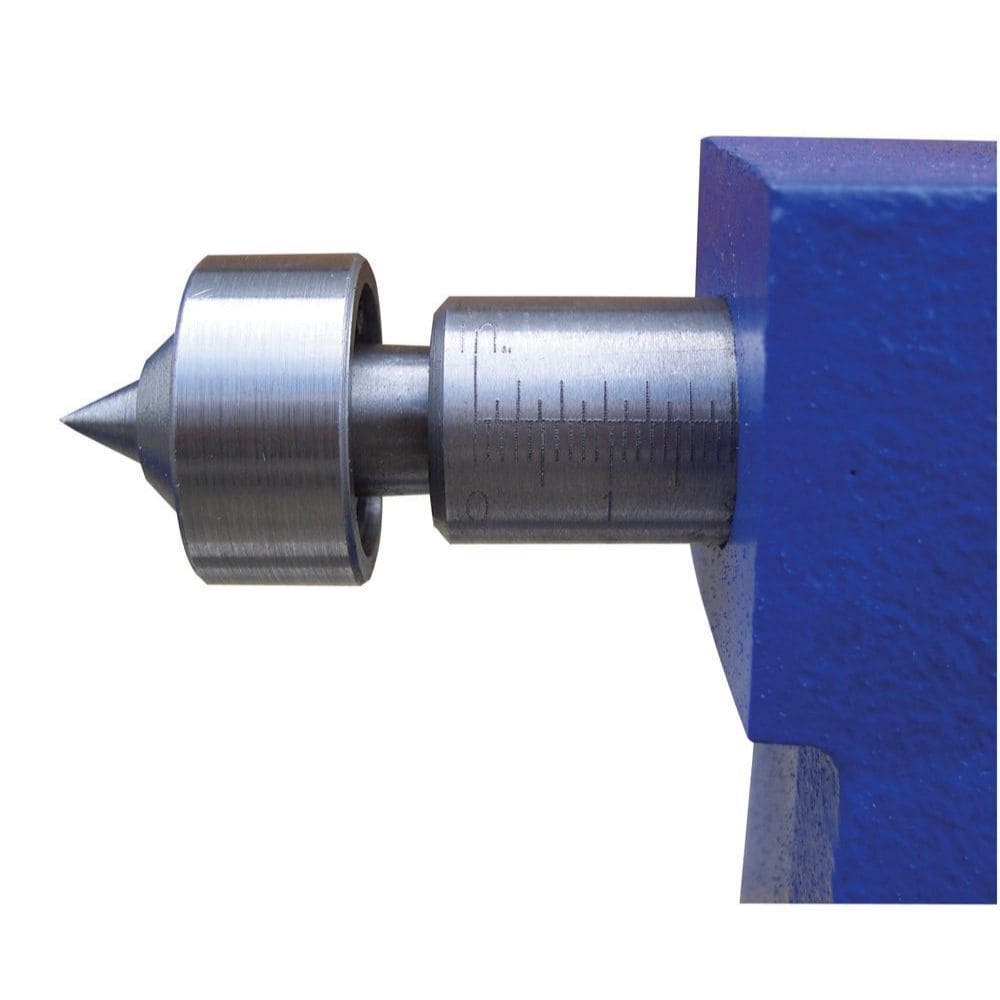

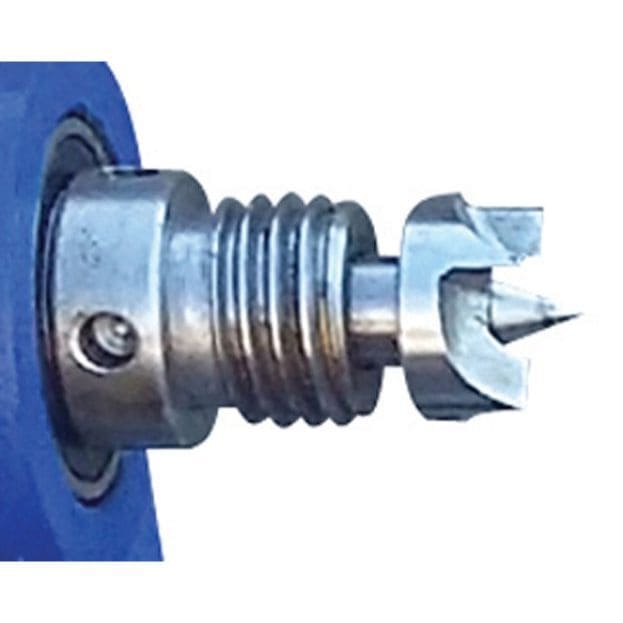

We also now include a handy storage rack to keep centres, faceplates and service tools in one place and ready to go. Supplied with four prong drive centre, revolving tail centre, 150mm (6") tool rest cross bar with 12mm diameter stem, 75mm (3") diameter faceplate, cable and plug. See our Woodturning Chucks category for our full range of chucks. Models W810 and VIPER2 are most suitable for use with this machine.
Specification
| Distance between centres | 330mm (13") |
| Distance over bed | 200mm (8") |
| Motor DC (carbon brush) | 250w (1/3hp), 240v |
| Speed range | 750 - 3200rpm |
| Spindle thread size | 1" x 8tpi |
| Spindle tapers | 1MT |
| Indexing Positions | 24 ( every 15 degrees) |
| Dimensions (WxDxH) | 690mm x 220mm x 310mm |
| Weight | 20kg |
| Rating | Hobby |
| Warranty | 5 Years |
Includes a 5 year manufacturers guarantee.

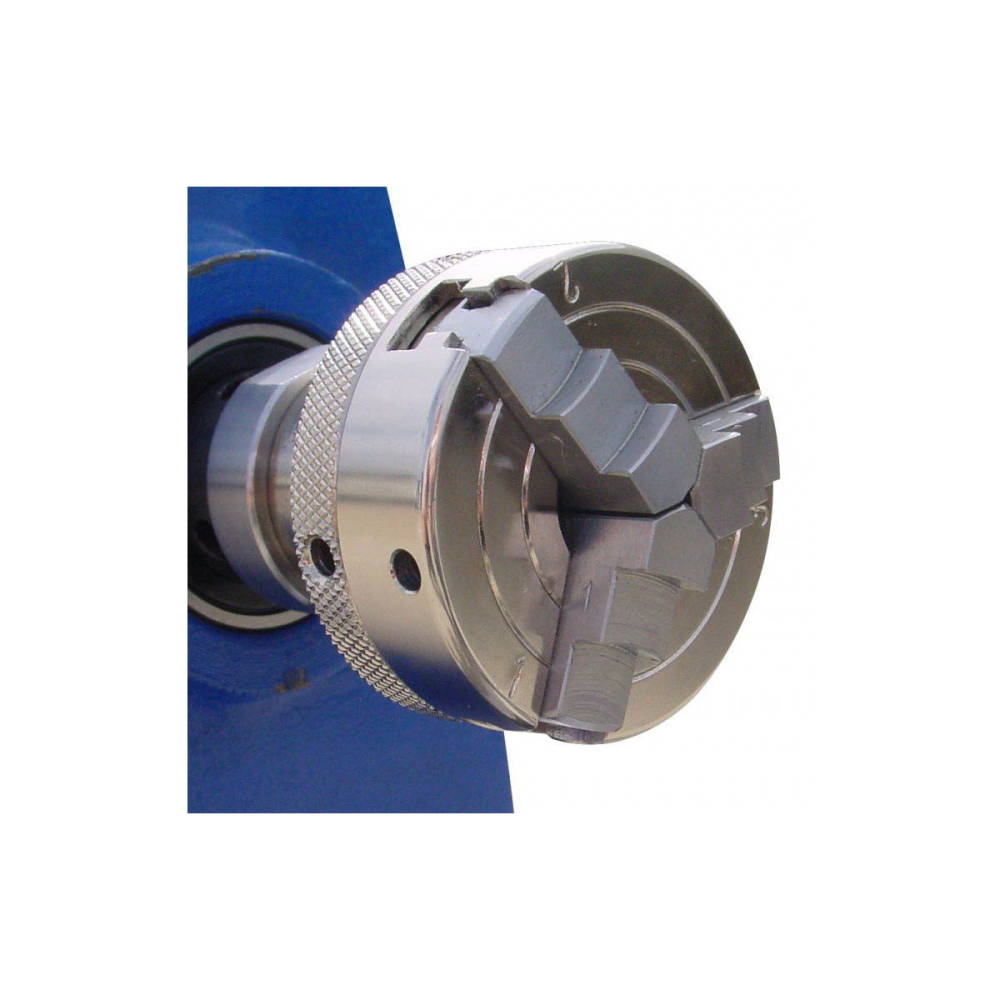

Charnwood W810 3 Jaw Woodturning Chuck 50mm
A light weight, low cost, mini lathe chuck ideal for lathes with smaller motors. Fitted with 3 jaws, which are stepped on the outside, to give a powerful grip on smaller work pieces. The jaws are adjusted using two levers, which are supplied as standard.
The jaws on this chuck are reversible to futher expand the range of pieces it can hold. When the jaws are reversed the steps are on the inside. Please note: When reversing the jaws you need to swap over the number 1 and number 3 jaws before re-fitting them.
The chuck fits directly onto 1" x 8tpi threads.
Specification
| Chuck Body Diameter | 50mm |
| Standard Jaw Expands from | 10mm to 66mm |
| Standard Jaw Contracts from | 30mm to 3mm |
| Reversed Jaw Expands from | 55mm to 80mm |
| Reversed Jaw Contracts from | 60mm to 20mm |
| Weight | 450g |
