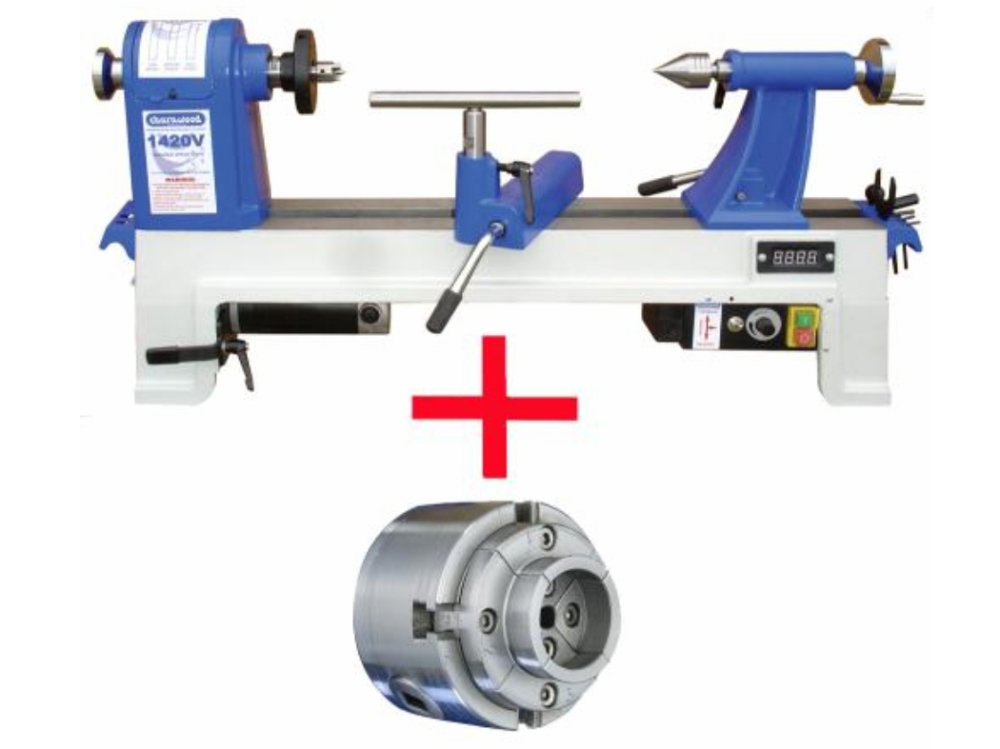

Package Deal Includes: Charnwood 1420V Heavy Duty Bench Lathe & Nexus3R Woodturning Chuck 95mm
Charnwood 1420V Heavy Duty Bench Lathe
A heavy duty bench lathe developed from the best selling Charnwood midi lathe.
- Electronic Variable Speed Control
- Digital Speed Read Out
- Reverse Direction
- Powerful & Quiet 750w (1hp) Motor
- High Quality Drive and Tail Centres
- Cam Action Tool Rest Banjo
- Steel Tool Rest Bar
- Built In 24 Position Indexing
- Hollow head and tail stock
With full cast iron construction this bench lathe is 40% heavier and more stable than the average bench lathe.
Using a large 1hp motor allows the electronics to achieve a lowest speed of only 250rpm, with enough torque to be useful. The actual spindle speed is shown on a clear digital display.
The tool rest and tailstock both slide smoothly along the bed and are securely locked with a large cam action lever.
The tool rest itself is a round steel bar with optional lengths and shapes available, courtesy of Robert Sorby.
Supplied with drive centre, tail centre, 100mm diameter faceplate, knock out bar, adjustable rubber feet, cable and plug.
Specification
| Max. spindle length (without centres) | 500mm (20") |
| Max. spindle length (with centres fitted) | 430mm (17") |
| Distance over bed (Max. bowl diameter) | 350mm (14") |
| Distance over tool rest (Max. spindle diameter) | 250mm (10") |
| Tool rest length | 150mm (6") |
| Tool rest stem diameter | 25mm |
| Motor (DC carbon brush) | 750w (1hp), 240v |
| Speed range | Low 250 - 1400rpm |
| | Medium 400 - 2650rpm |
| | High 600 - 4300rpm |
| Spindle thread size | M33 x 3.5 |
| Spindle tapers | MT2 |
| No. of indexing positions | 24 (every 15 degrees) |
| Hollow headstock diameter | 10mm |
| Hollow tailstock diameter | 8mm |
| Dimensions (WxDxH) | 950 x 370 x 500mm |
| Weight | 57kg |
Includes a 5 year manufacturers guarantee.
Nexus3R Woodturning Chuck 95mm
The Nexus3R has a jaw mounting compatible with Supernova, G3 Nova and Robert Sorby Patriot Jaws. This will be of particular interest to any owners of those chucks looking for a second chuck and wanting to be able to continue using any jaws they already own.
A 95mm diameter scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. The fully enclosed body of the chuck prevents dust and chips from getting inside and plugging up the teeth of the gear mechanism. Ideal for Midi sized lathes and upwards. The standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned. The chuck fits directly onto lathes with headstock thread size of M33 x 3.5tpi. For other thread sizes, an optional insert is required. We also include a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.
Supplied with standard dovetail jaws, wood screw, T-bar for locking the jaws and T-handled hex key for swapping the jaws. We have an extensive range of optional jaws and accessories available for the Nexus3R chuck.
Specification
| Direct Mounting Thread | M33 x 3.5 |
| Chuck Body Diameter | 95mm |
| Standard Jaws Expand from | 53mm to 80mm |
| Standard Jaws Contract from | 68mm to 41mm |
| Jaw Travel | 27mm |
| Thread Depth | 30mm |
| Weight | 2165g |
