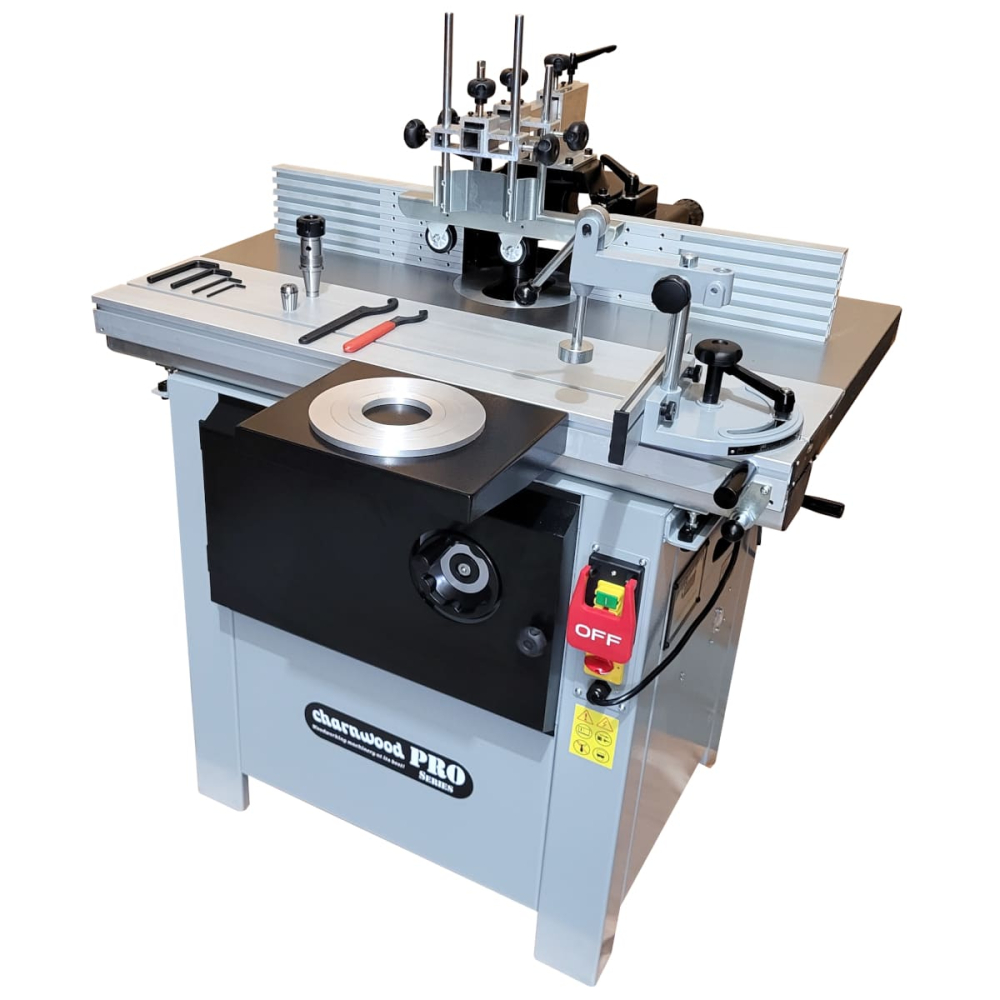

A powerful trade rated spindle moulder, capable of using tooling up to 200mm in diameter.
- 2.8kW Induction Motor with Brake
- Four Speeds with Digital read-out
- Sliding Beam 48" Capacity
- Cast Iron Main Table
- 45 degree Backwards Tilting Spindle
- Independently Adjustable Fences
- 30mm Spindle Included
- 1/4" & 1/2" Diameter Routing Spindle Included

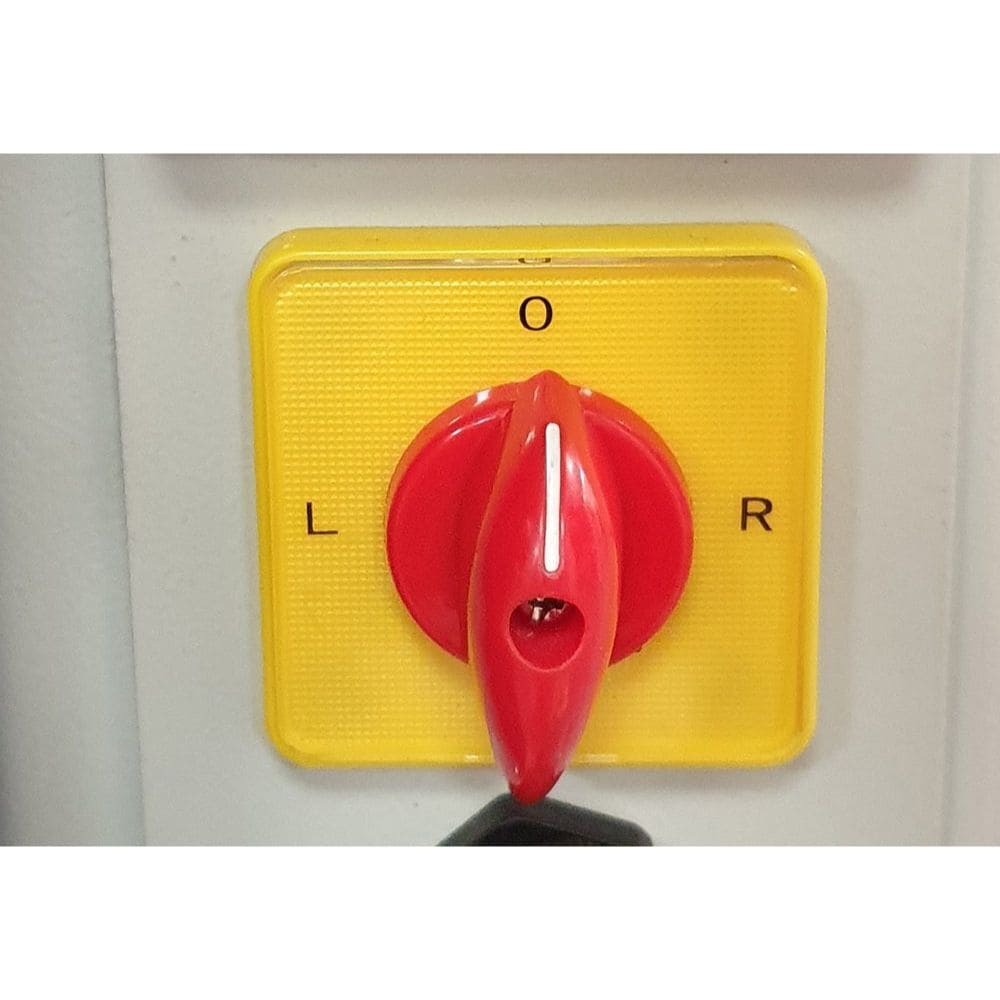

- Spindle Runs In Both Directions
- Optional Outrigger with Squaring Arm
A powerful trade rated spindle moulder, capable of using tooling up to 200mm in diameter.

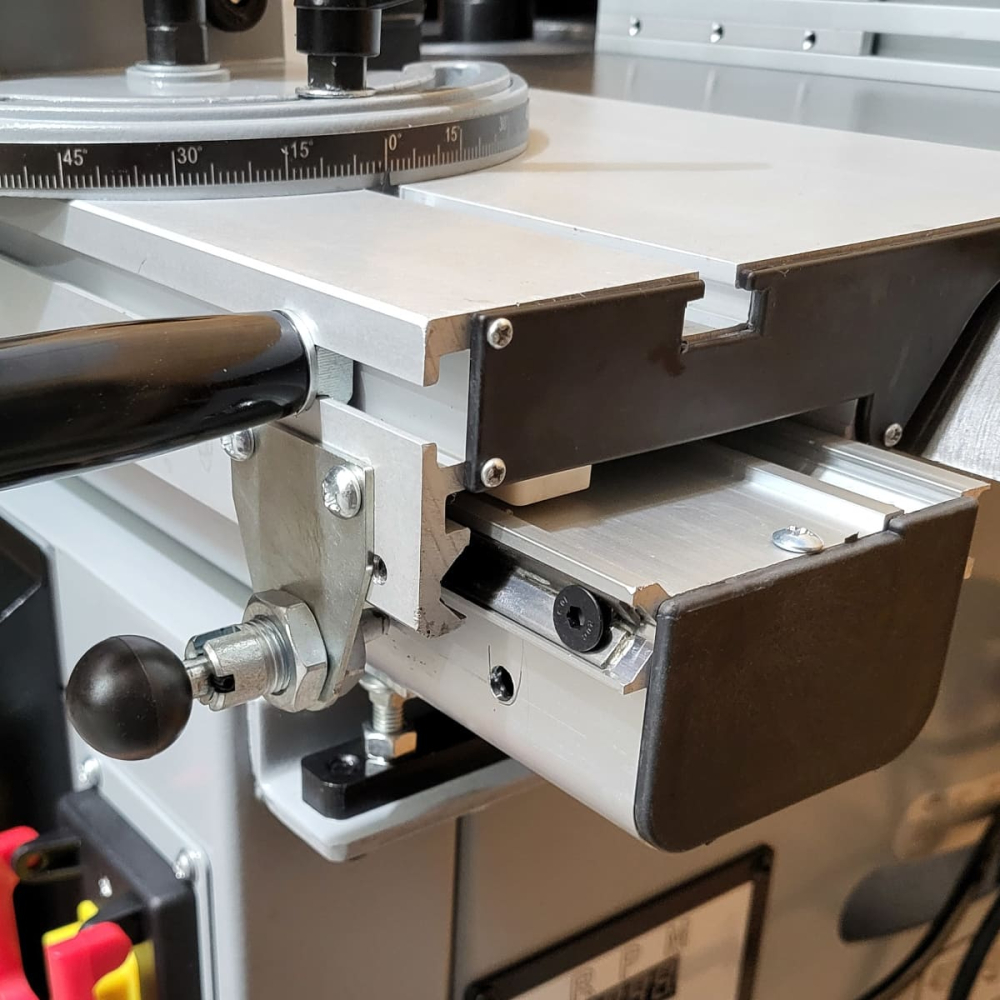

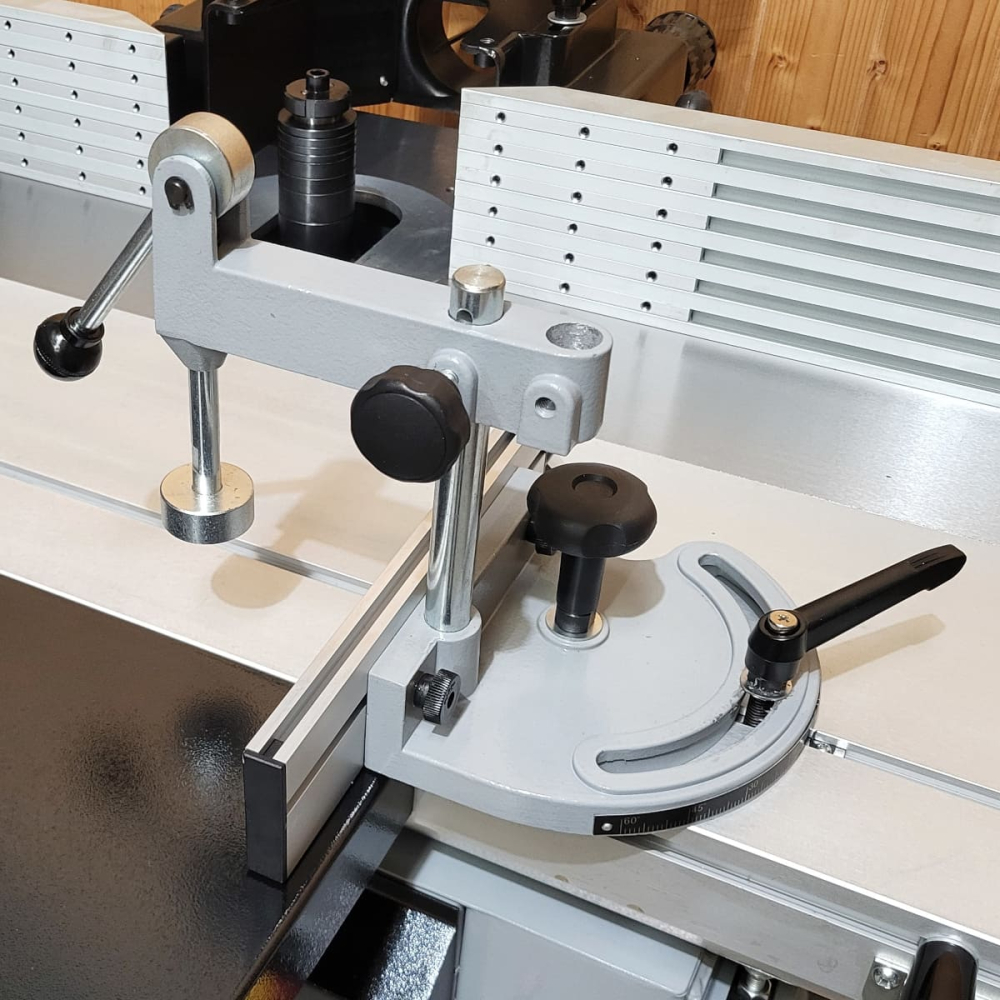

A large precision ground cast iron table forms the main surface. In front of this sits a full width sliding bed, which includes a mitre fence and work clamp as standard equipment.

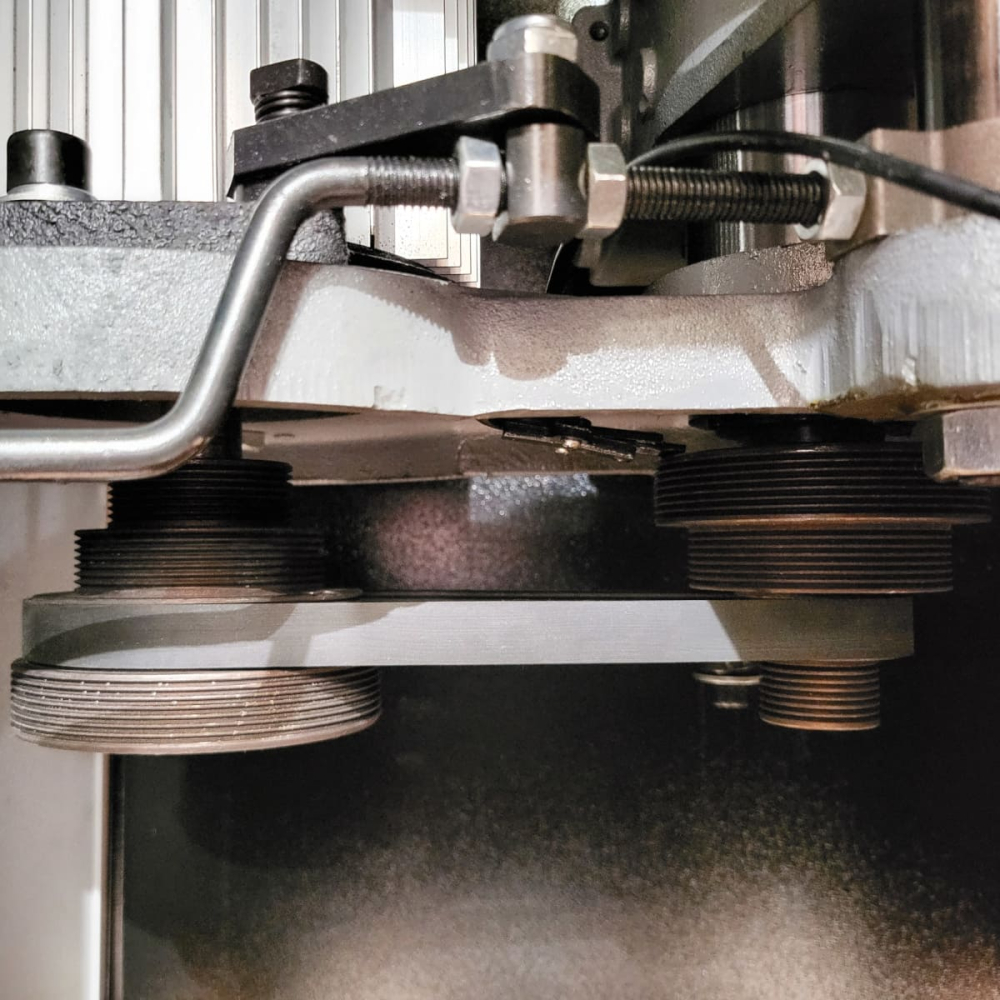

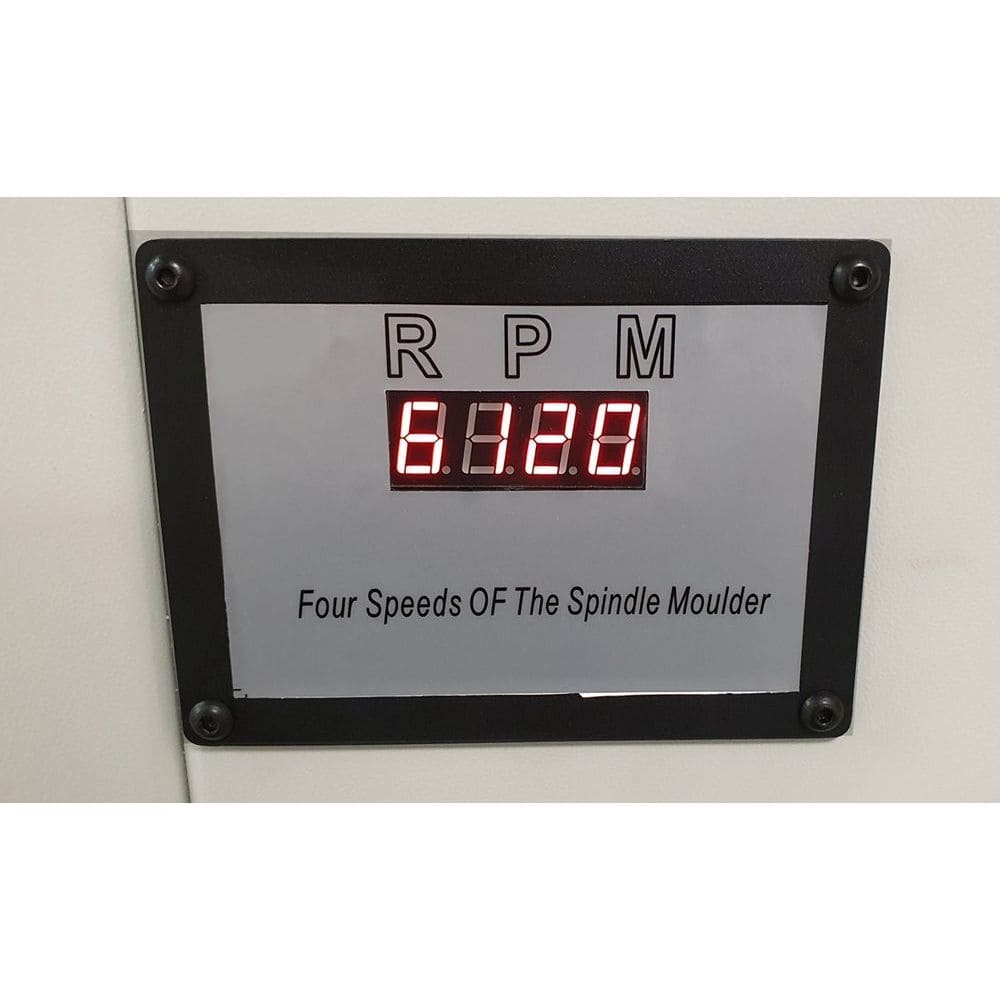

A mechanically braked motor offers ample power to use tooling up to 200mm in diameter with a choice of four speeds to allow a wide range of tooling to be used. A digital speed display informs the operator of the current speed setting.

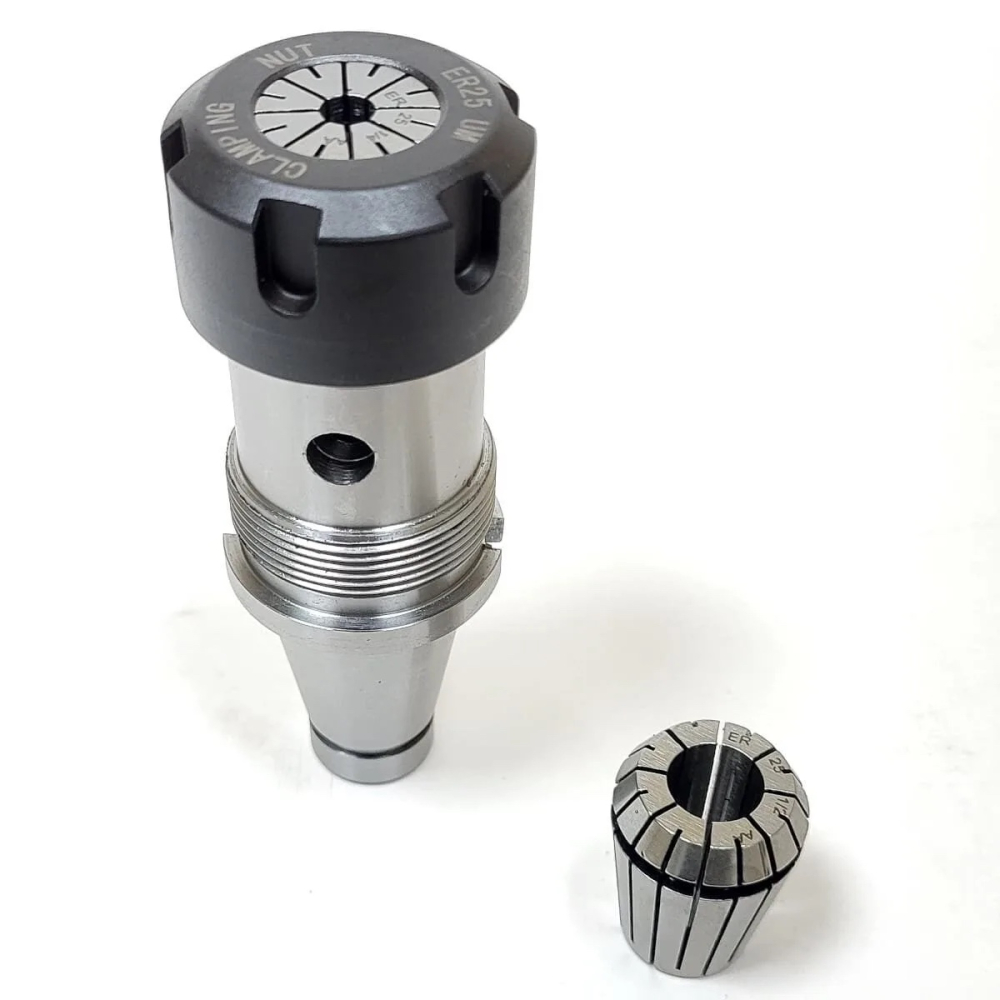

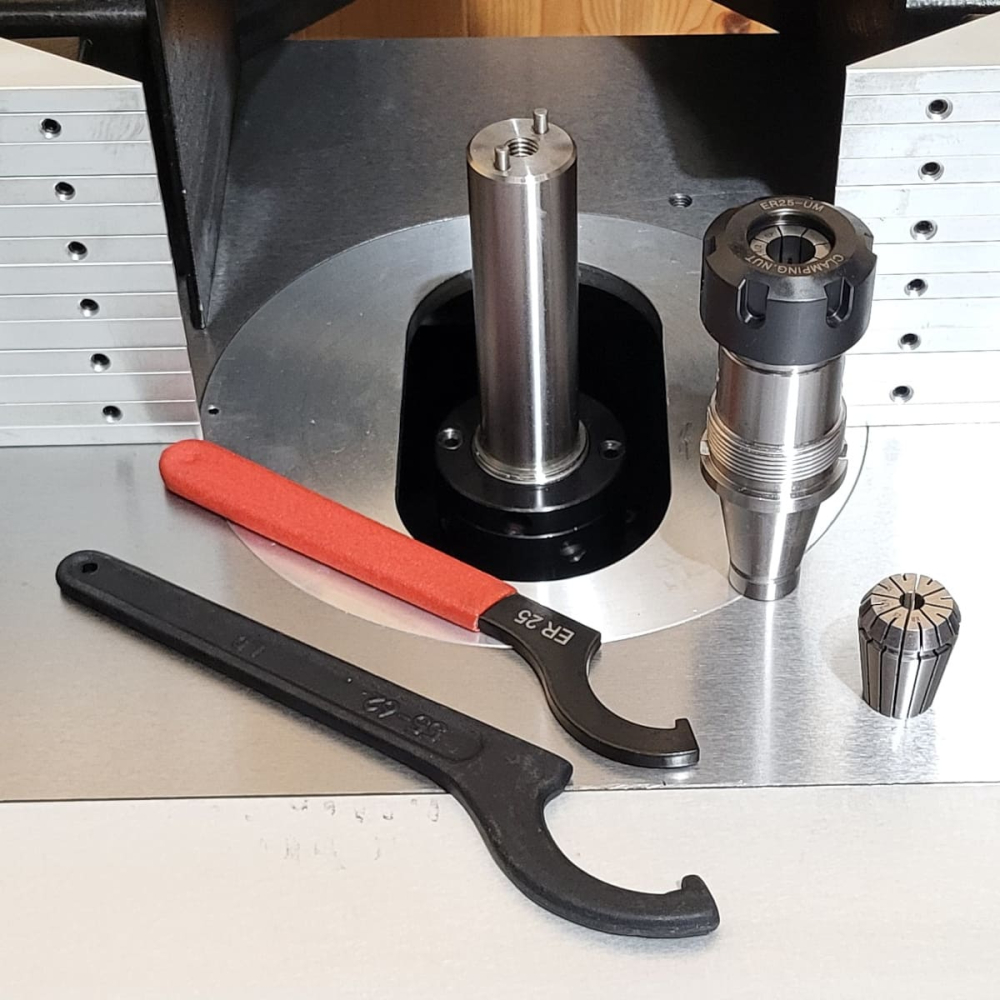

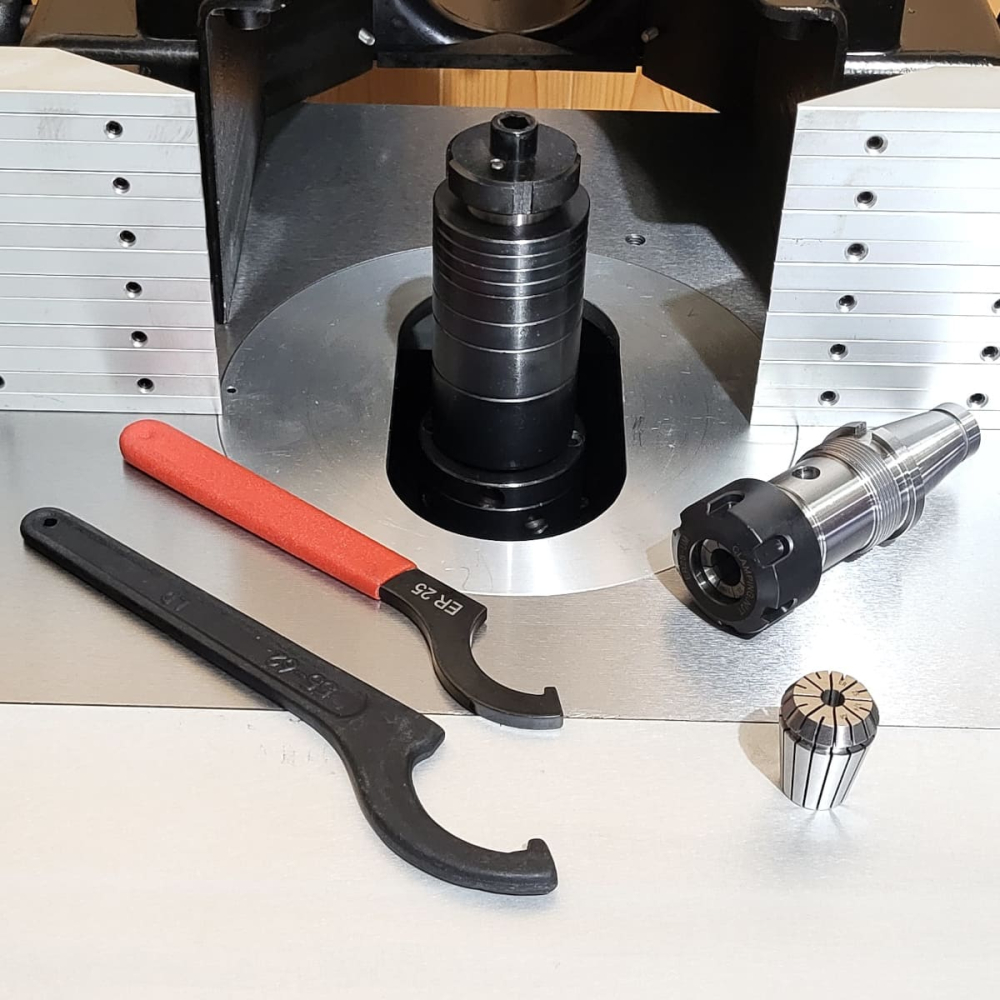

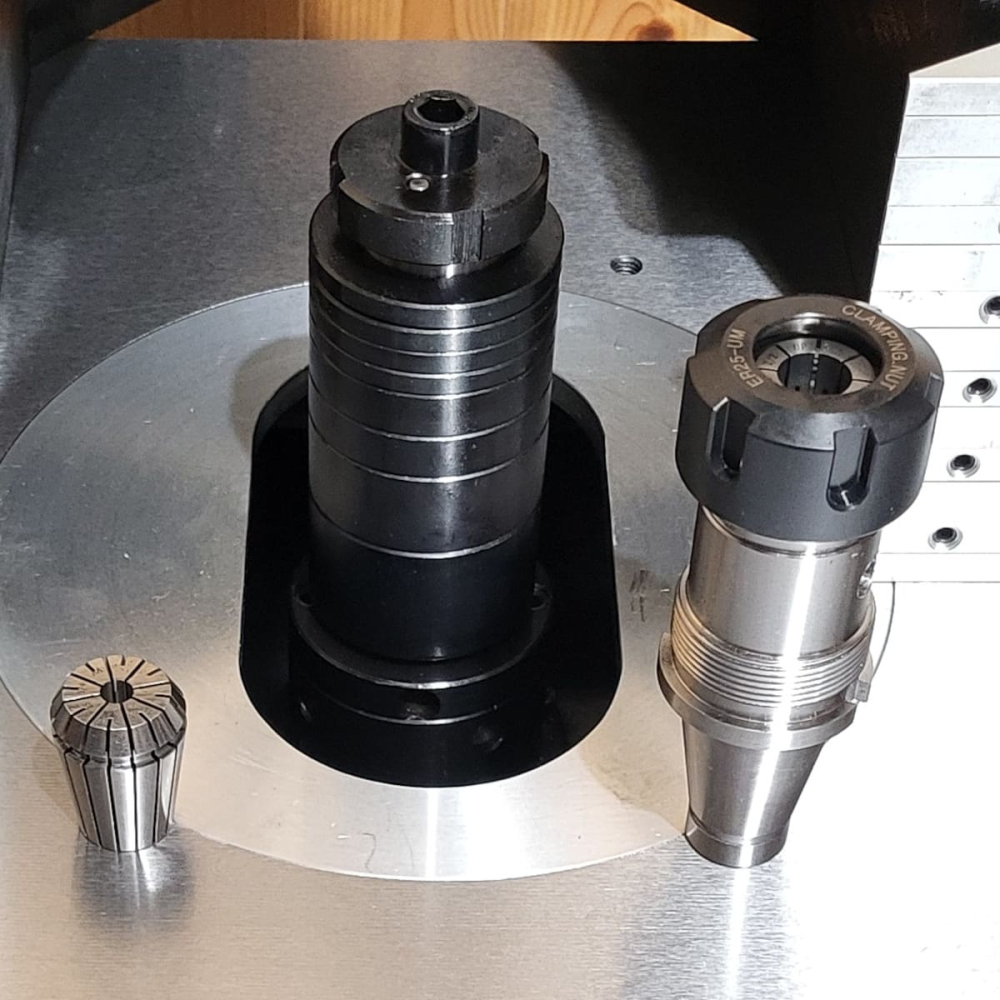

The top spindle is removable and there are 2 options: Standard 30mm Spindle for cutter blocks and Routing spindle with 1/4" & 1/2" diameter collets.

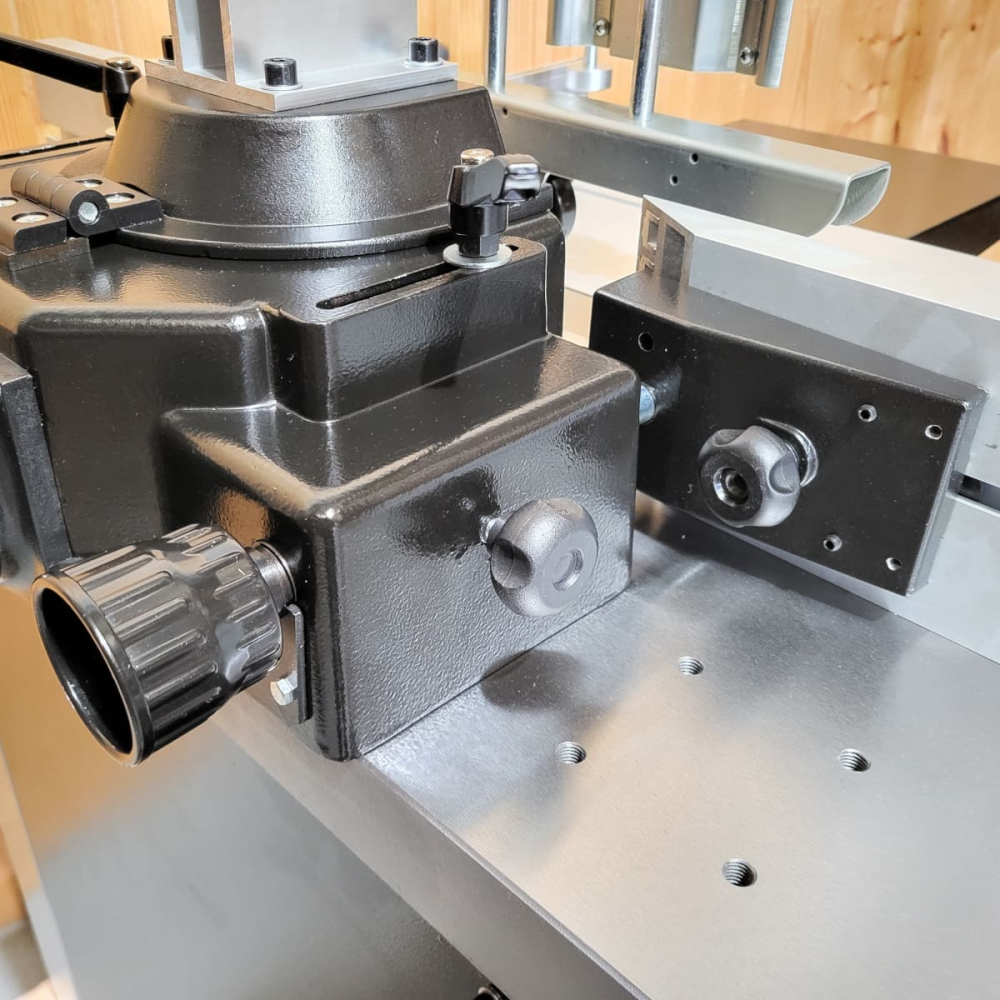

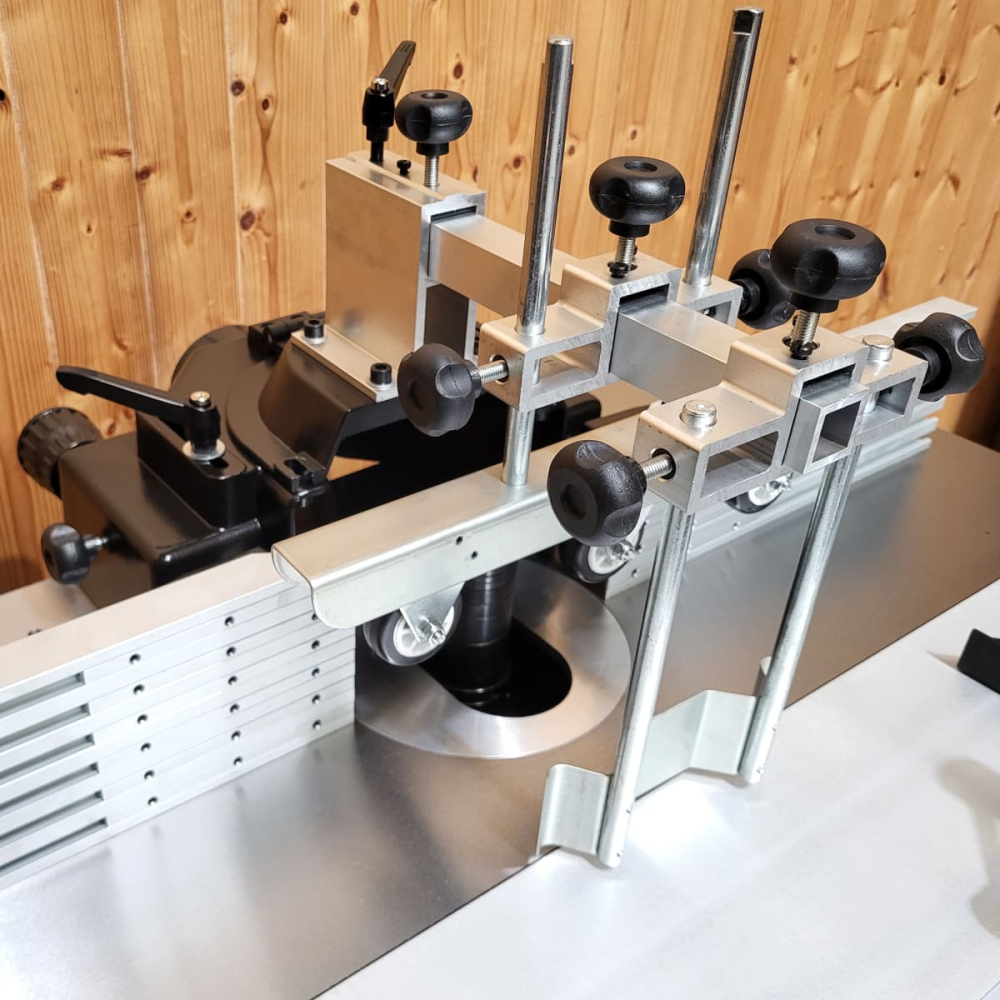

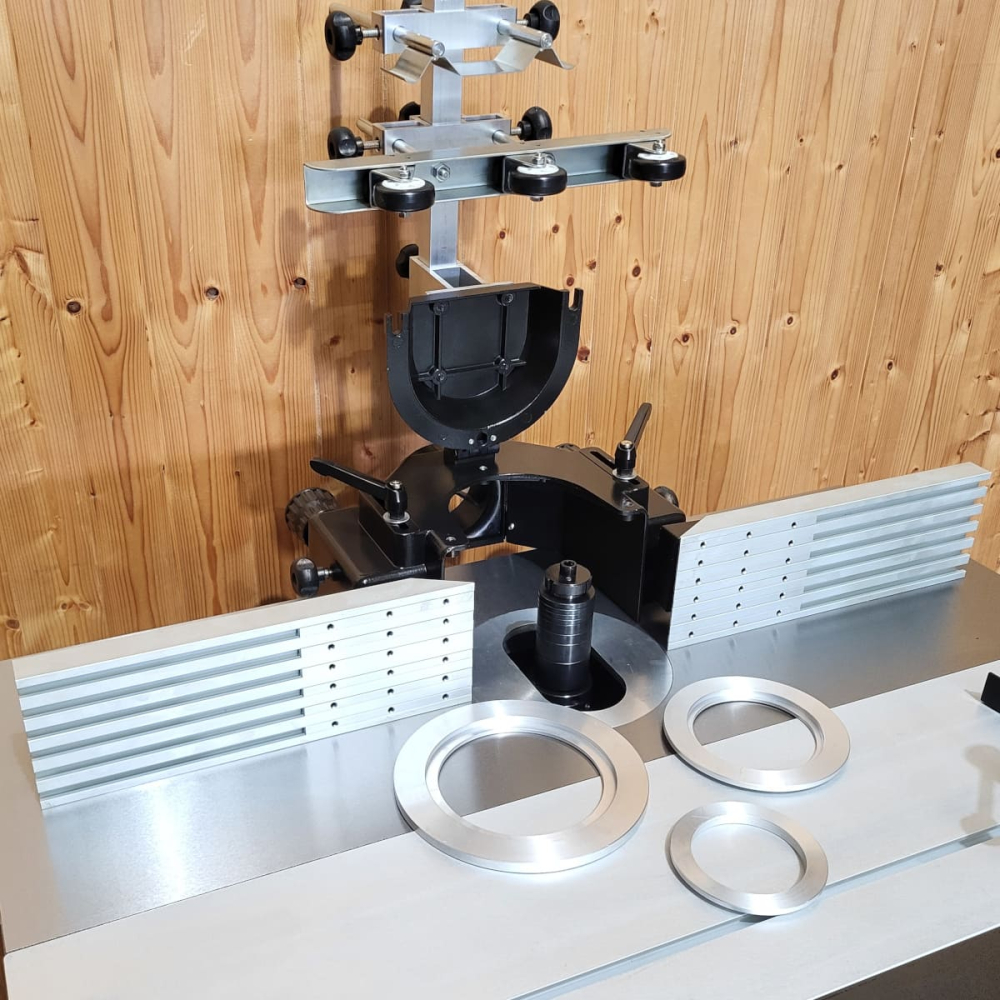

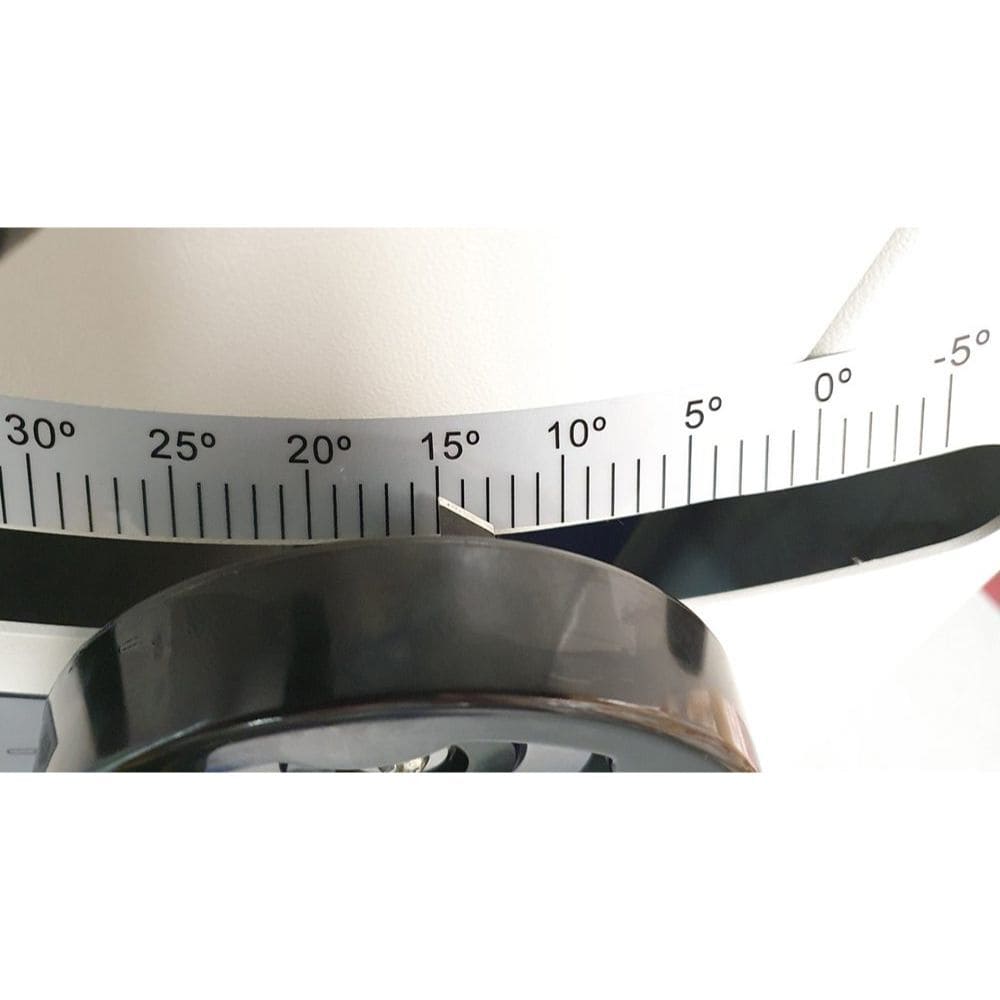

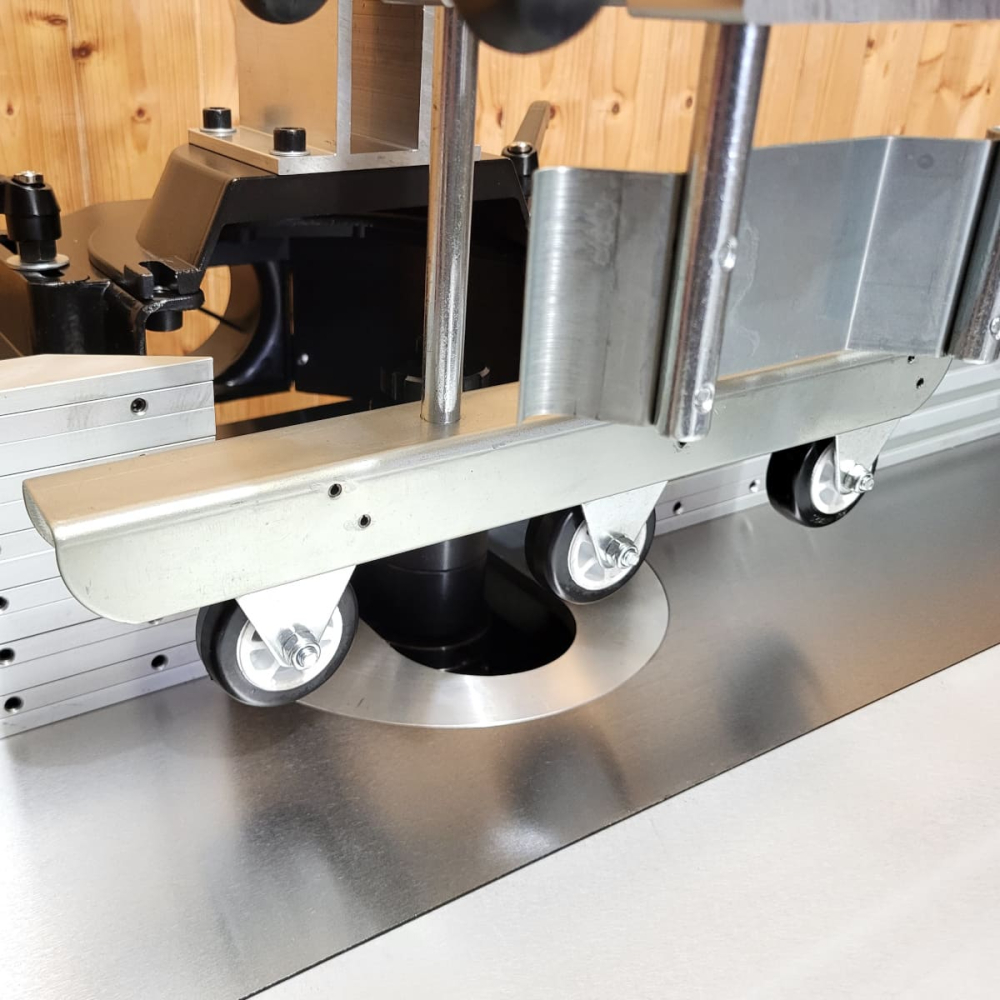

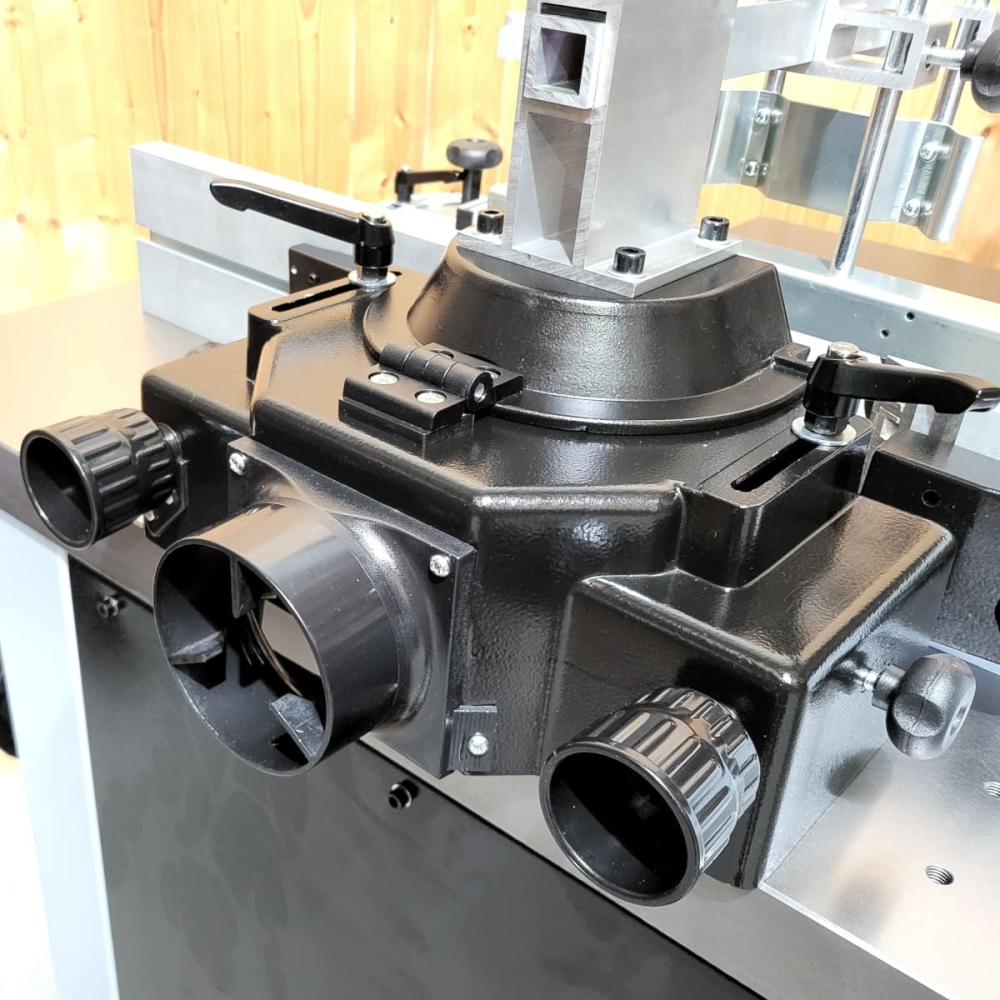

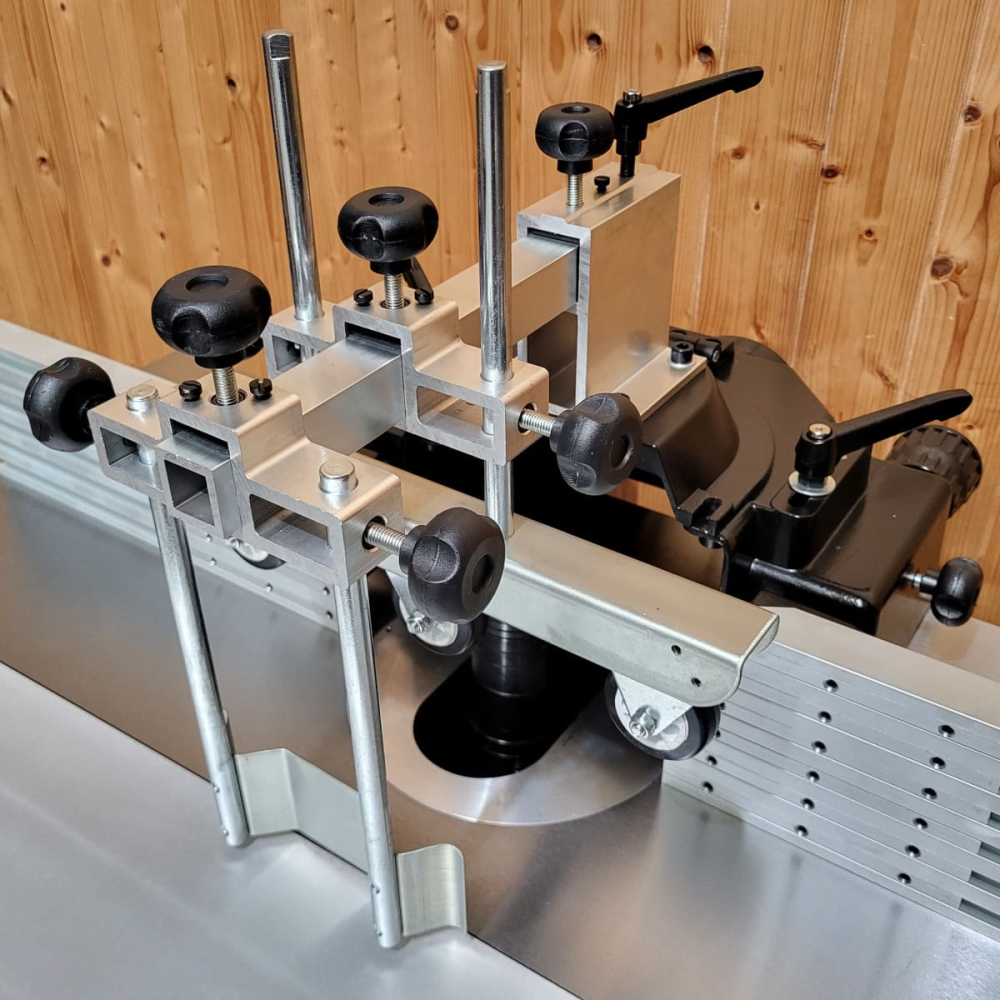

Further versatility is provided by the backwards tilt facility. The spindle hood is of cast alloy and is fitted with long, fully adjustable fences, a vertical hold down, front clamp and a 100mm dust outlet. A hinged lid allows for easy access when setting the tooling.

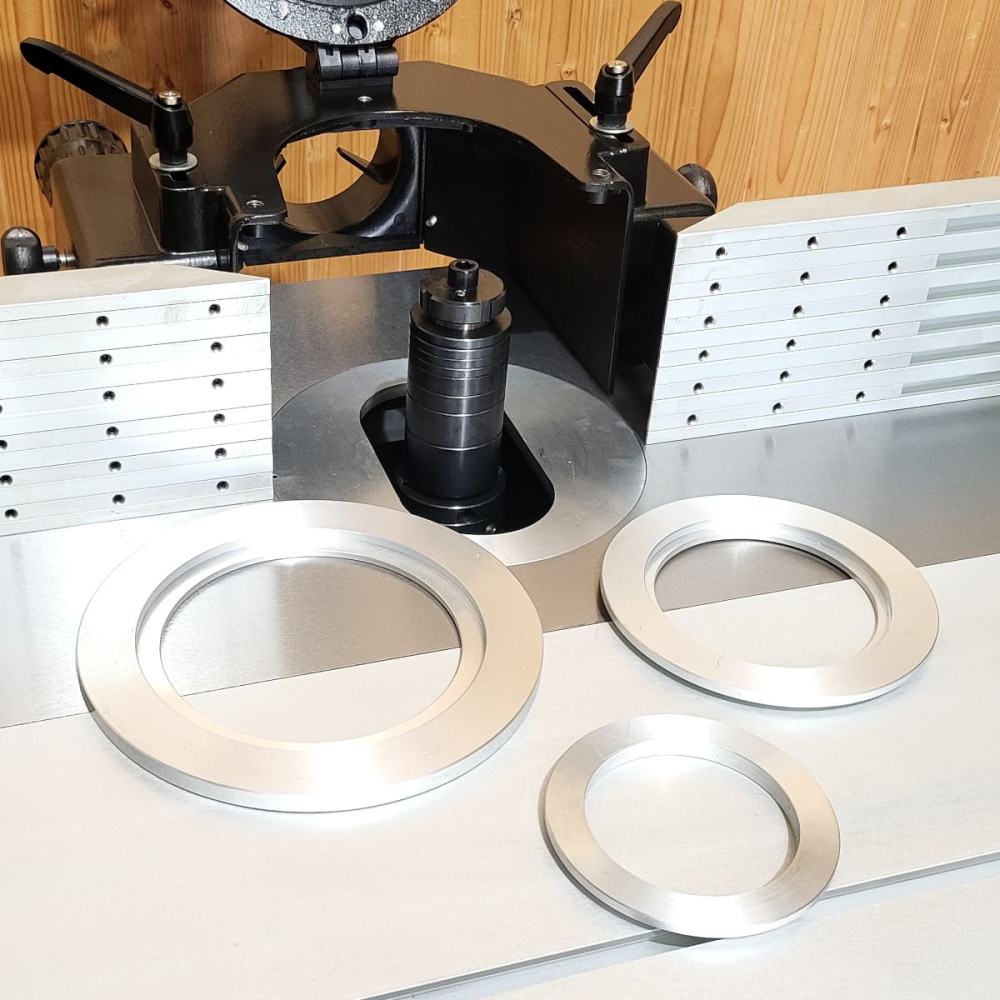

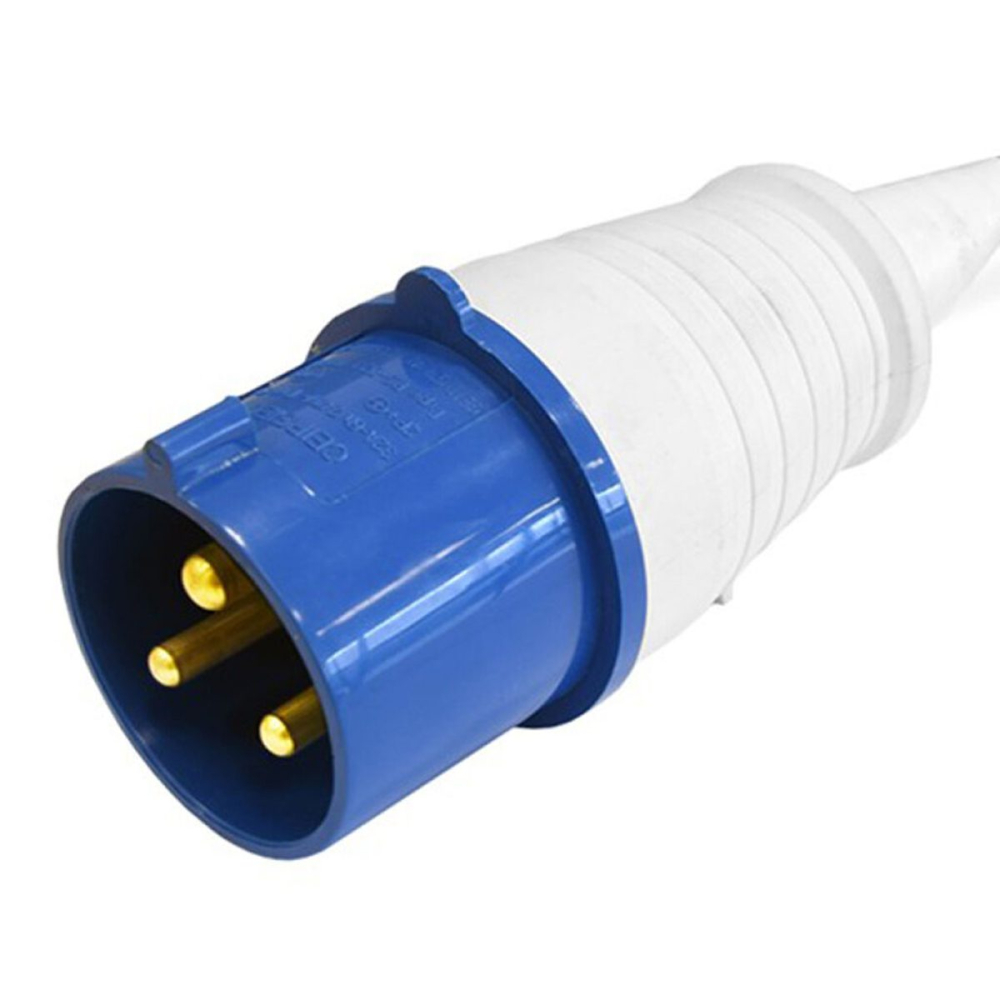

Supplied with set of spindle spacers, table inserts (80mm, 110mm & 150mm), 1/4" & 1/2" routing collets, 2.0m power cable, 16amp industrial plug.
A 16 amp, 240v electric supply is required to run this machine. We also recommend using a 16amp Type C breaker.
Optional Items:

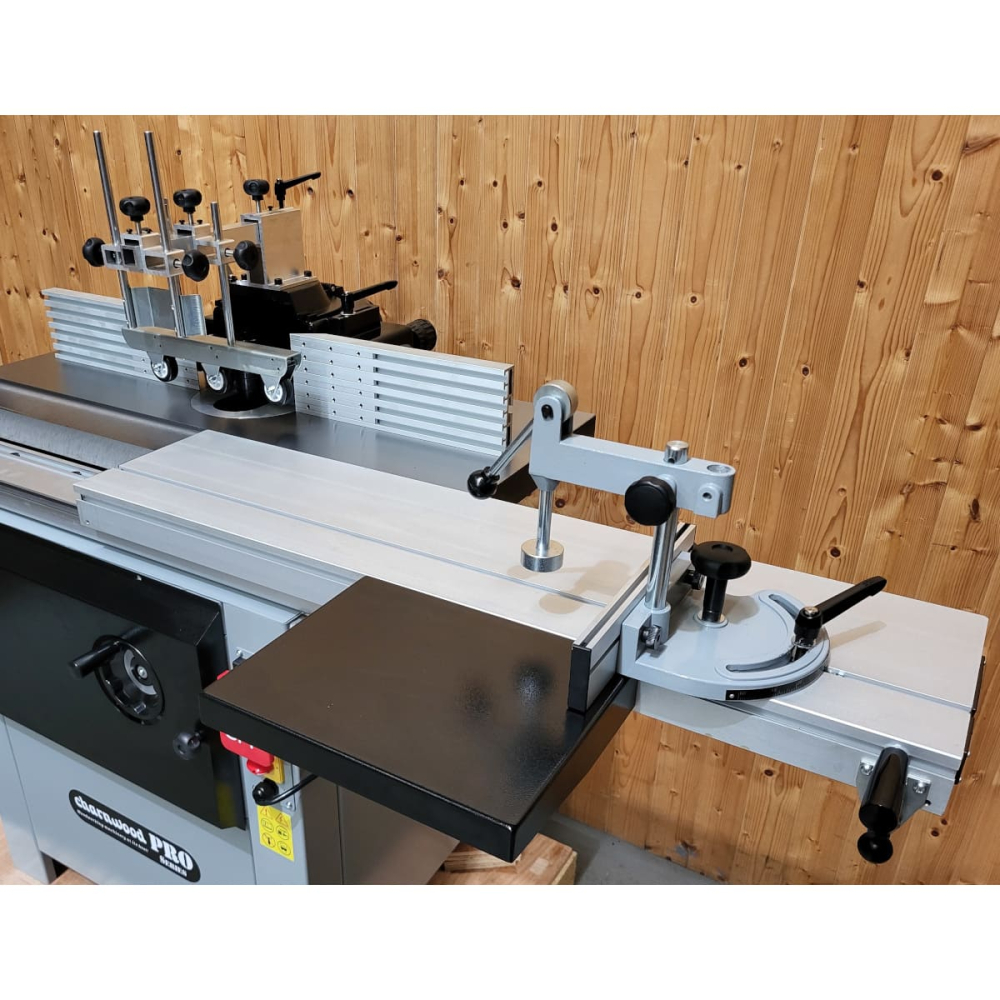

W050ET: The optional outrigger table with telescopic support arm is ideal for those working with larger panels or longer lengths of timber. A squaring arm can be set to any angle and has a flip-over sliding length stop graduated in millimetres up to 1500mm.
SMRF: The optional Ring Fence allows safe working when putting an edge moulding onto curved shaped pieces. It consists of a round fence to control the depth of cut, a transparent cutter guard, a lead in guide and a 100mm diameter extraction outlet. The W050 Table is pre-drilled ready to accept the ring fence.
Specification
| Motor (induction) Braked | 2800w (3.75hp), 240v |
| Main table size | 1000mm x 360mm |
| Sliding carriage size | 1000mm x 240mm |
| Sliding carriage stroke | 1200mm |
| Spindle diameter | 30mm |
| Spindle Tilt | +5 to - 45 degrees |
| Speeds | 4 (1800, 3000, 6000 & 9000rpm) |
| Vertical stroke | 100mm |
| Maximum tooling diameter (above table) | 200mm |
| Maximum tooling diameter (below table) | 180mm |
| Table aperture depth | 50mm |
| Table height | 900mm |
| Dust extraction outlet | 100mm |
| Assembled Dimensions (WxDxH) | 1000mm x 1300mm x 1250mm |
| Assembly Time Required | 30 Minutes (Needs 2 People) |
| Minimum Door Access Width | 670mm |
| Weight | 218kg |
| Rating | Trade |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
