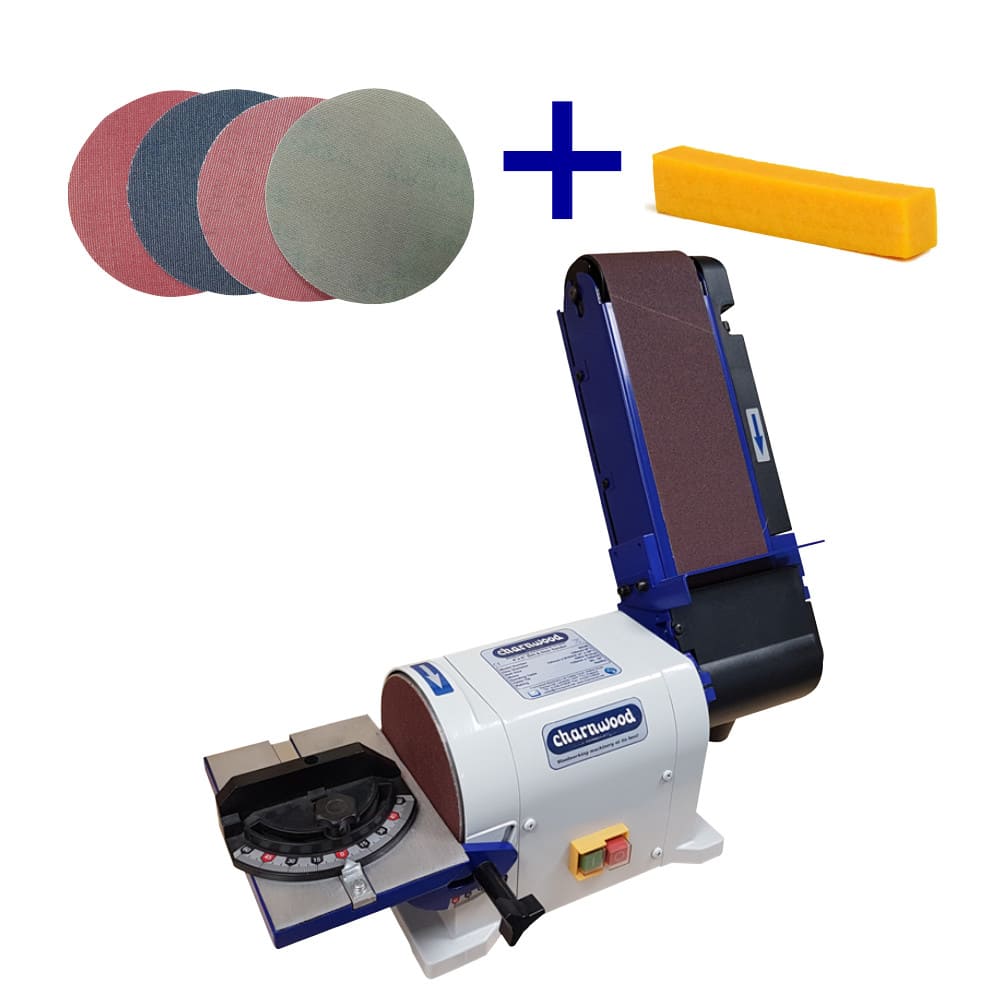

Package Includes:
- BD46 Belt & Disc Sander 4" x 6"
- BC01 Belt Cleaner
- VB150 Conversion Kit

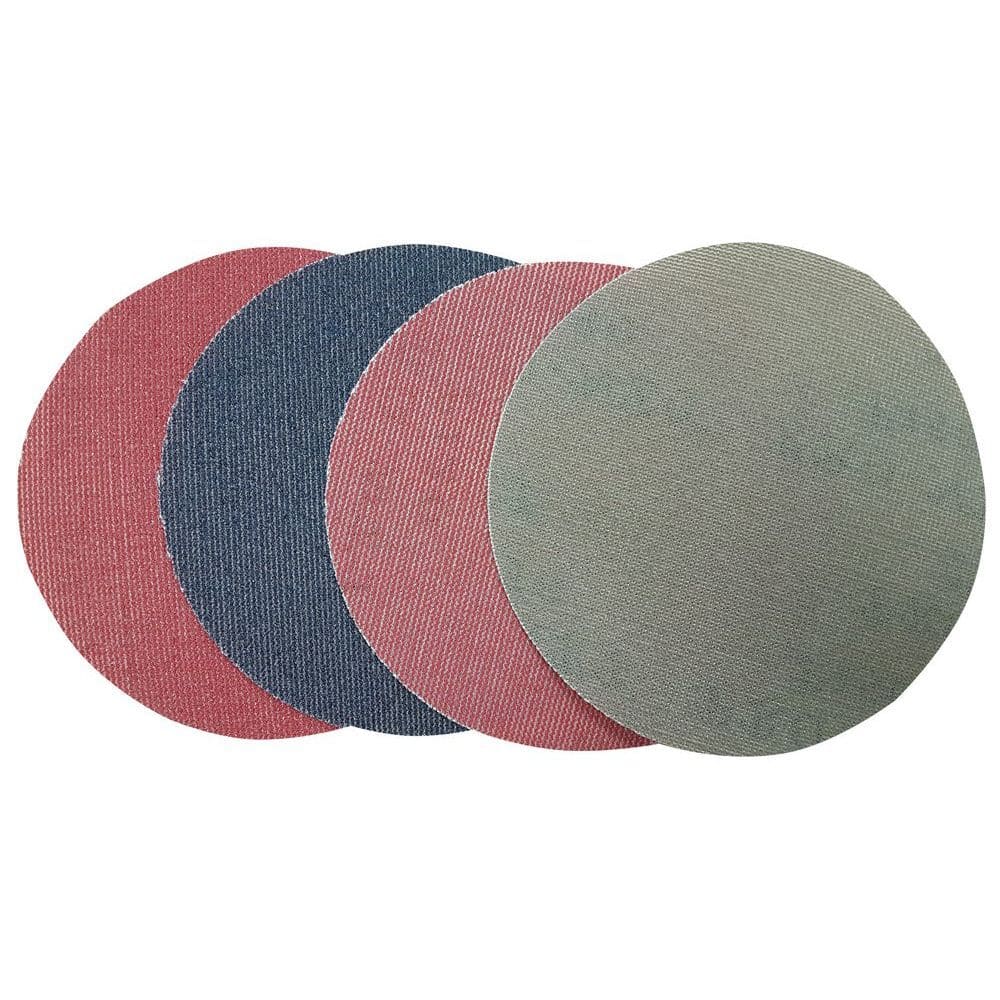

- 4 x 6" Hook & Loop Discs

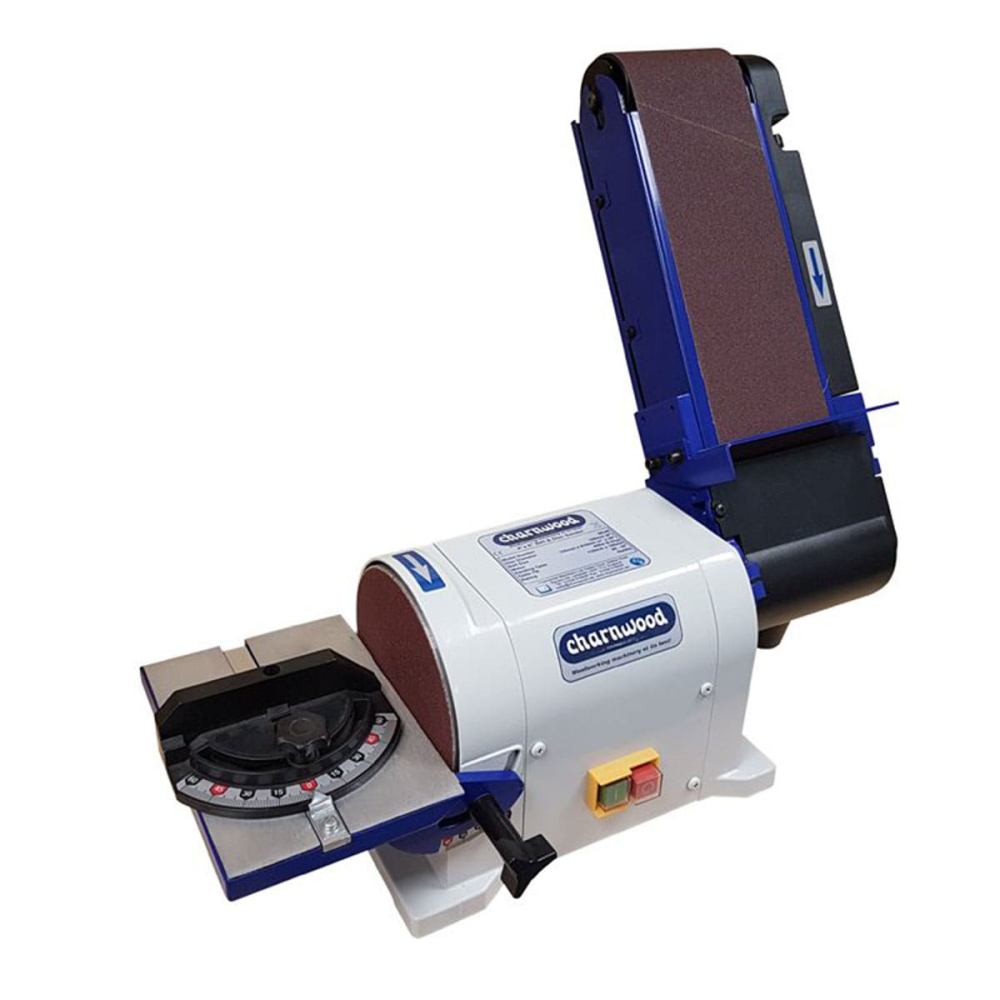

BD46 Belt & Disc Sander 4" x 6"
The design has been updated and simplified from the traditional belt driven sander. Both the belt & disc functions are powered directly from the motor shaft.

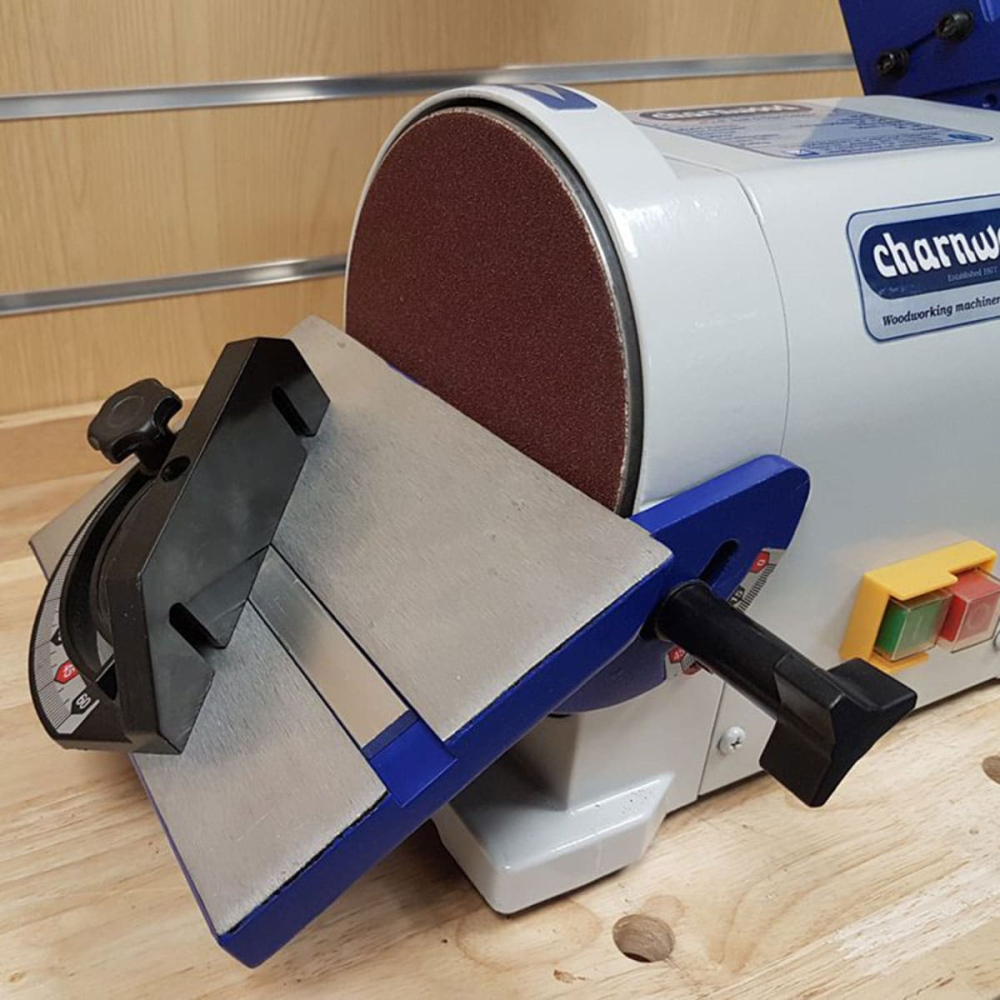

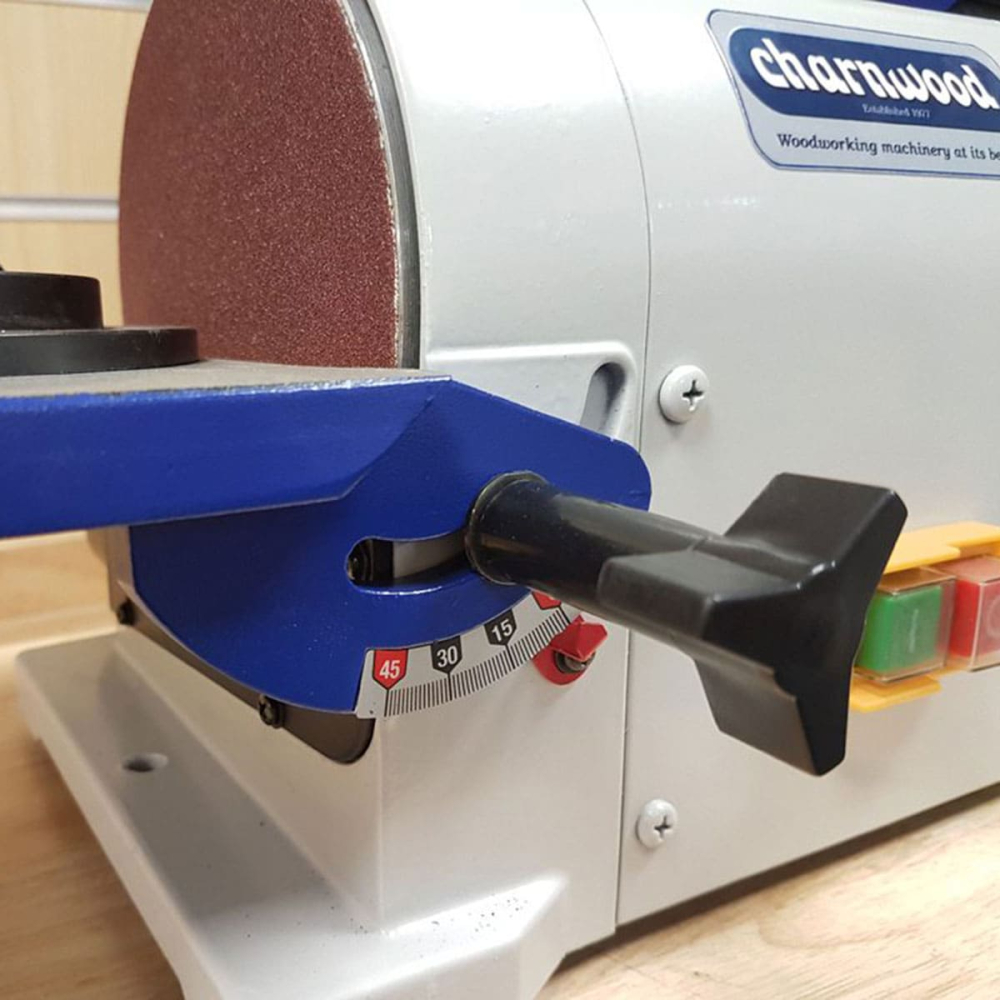

The disc sander side has a 150mm diameter disc complimented by a solid one piece aluminium work table with 45 degree tilt. A mitre guide fits onto a slot in the work table allowing the disc to be used for accurate sanding of square edges as well as bevels, mitres and even compound angles. A dust extraction outlet is provided to connect to a suitable vacuum or extractor.

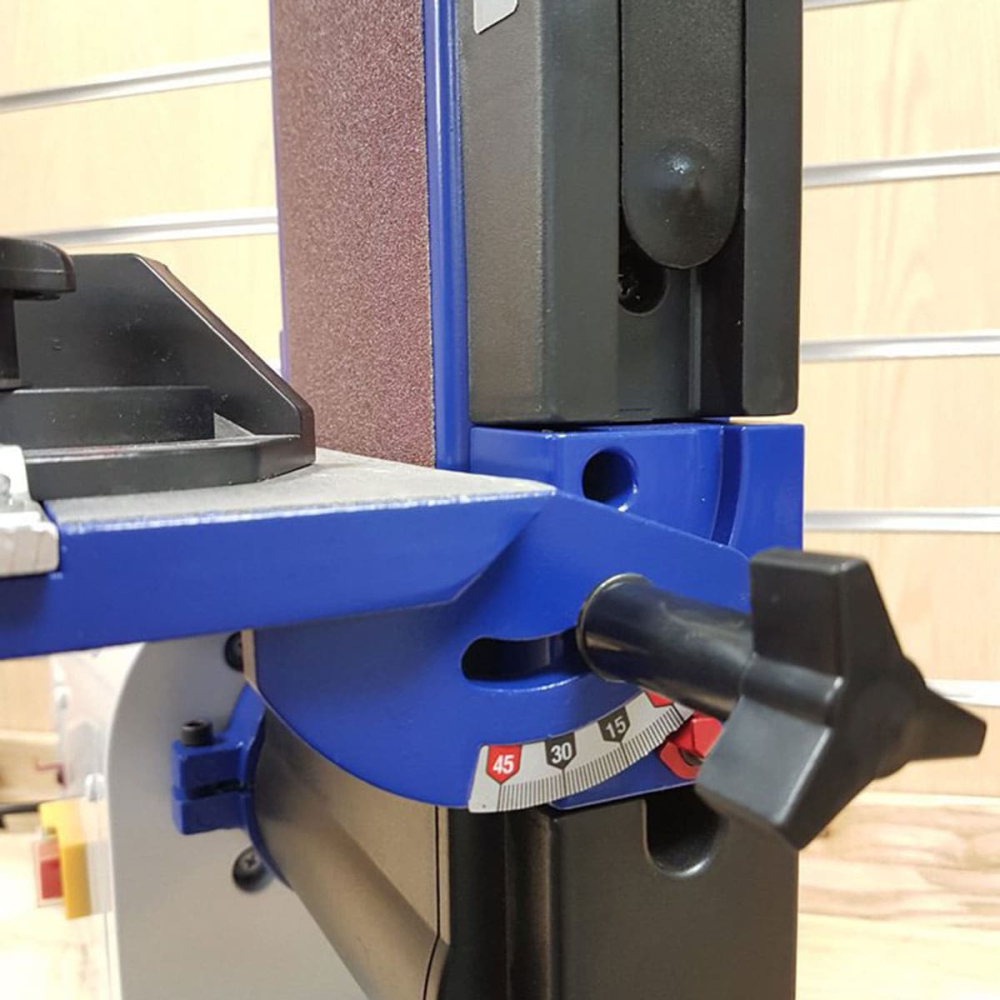

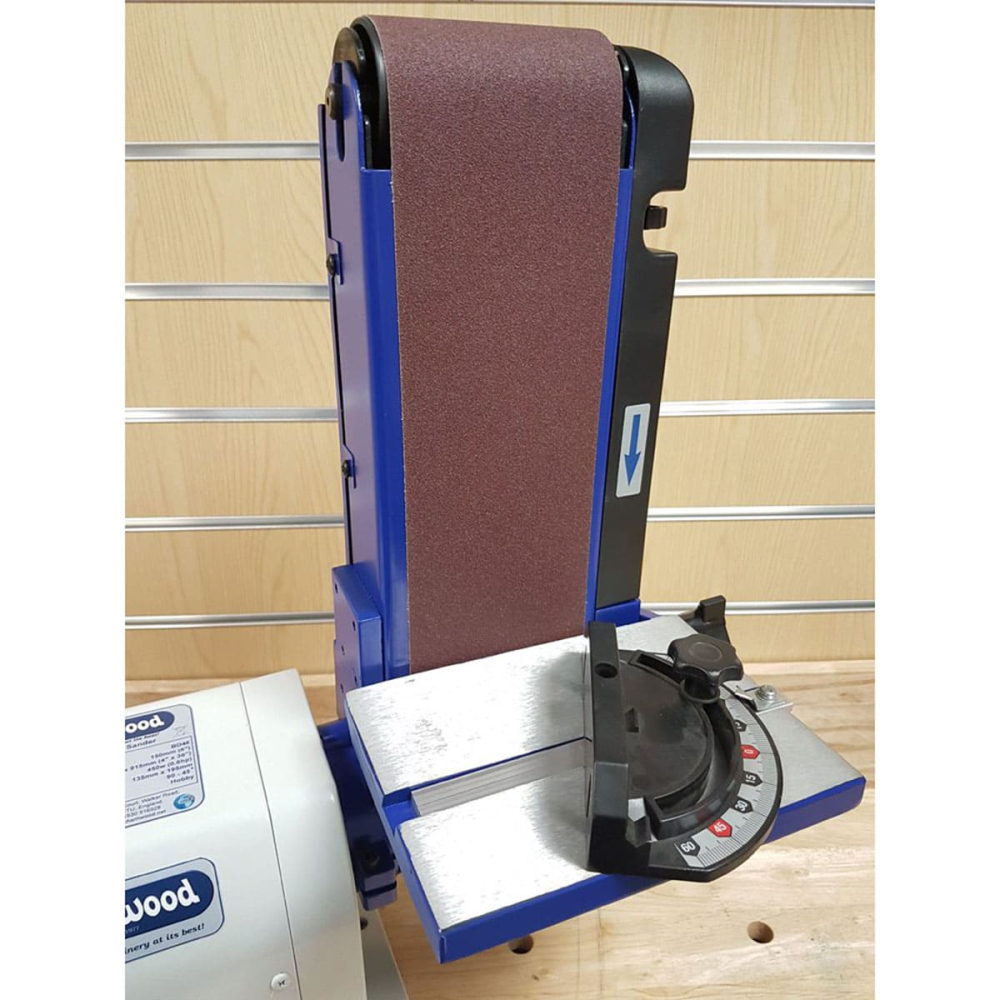

The sanding belt can be used in horizontal or vertical mode. It can also be locked at any angle in between, sometimes more comfortable for sharpening tools.

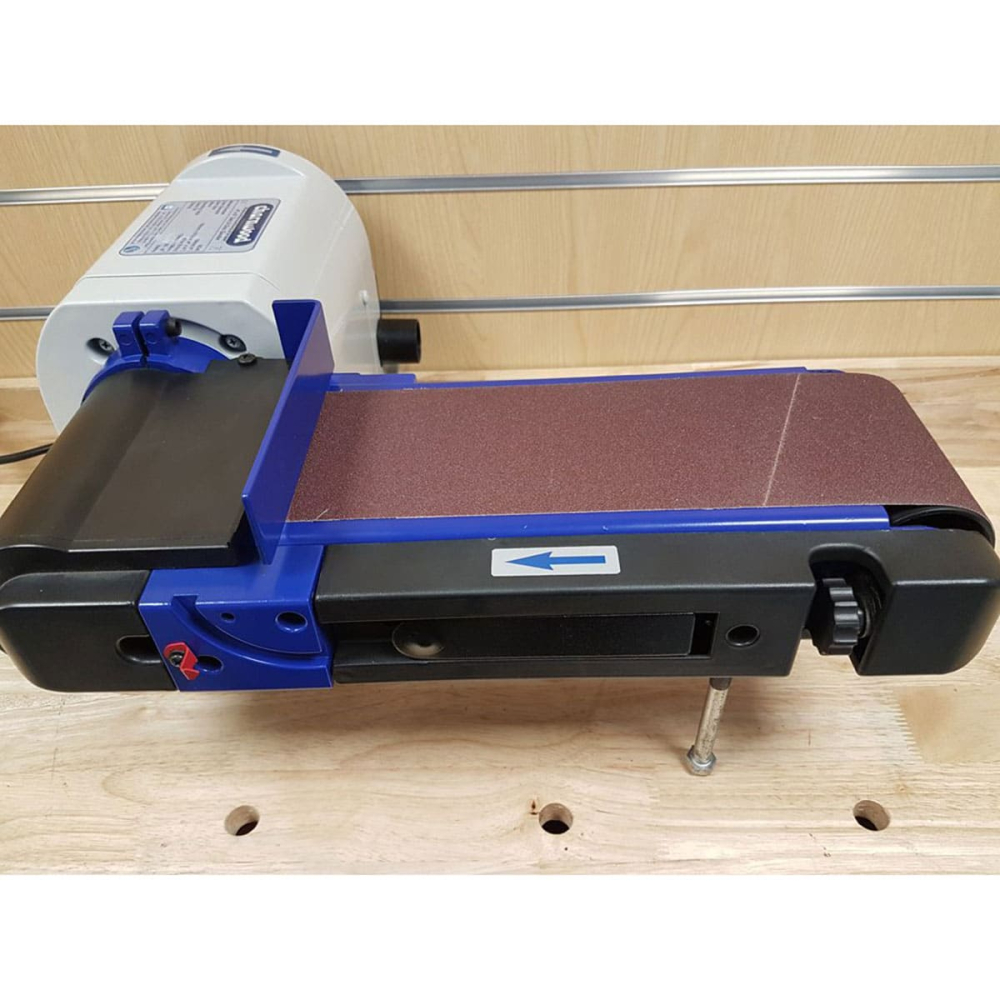

When used horizontally for face sanding the belt is fitted with a back stop. This can be quickly removed and replaced with the work table.
The open drum end of the belt can be used for sanding curved edges, cut on a bandsaw or scroll saw.

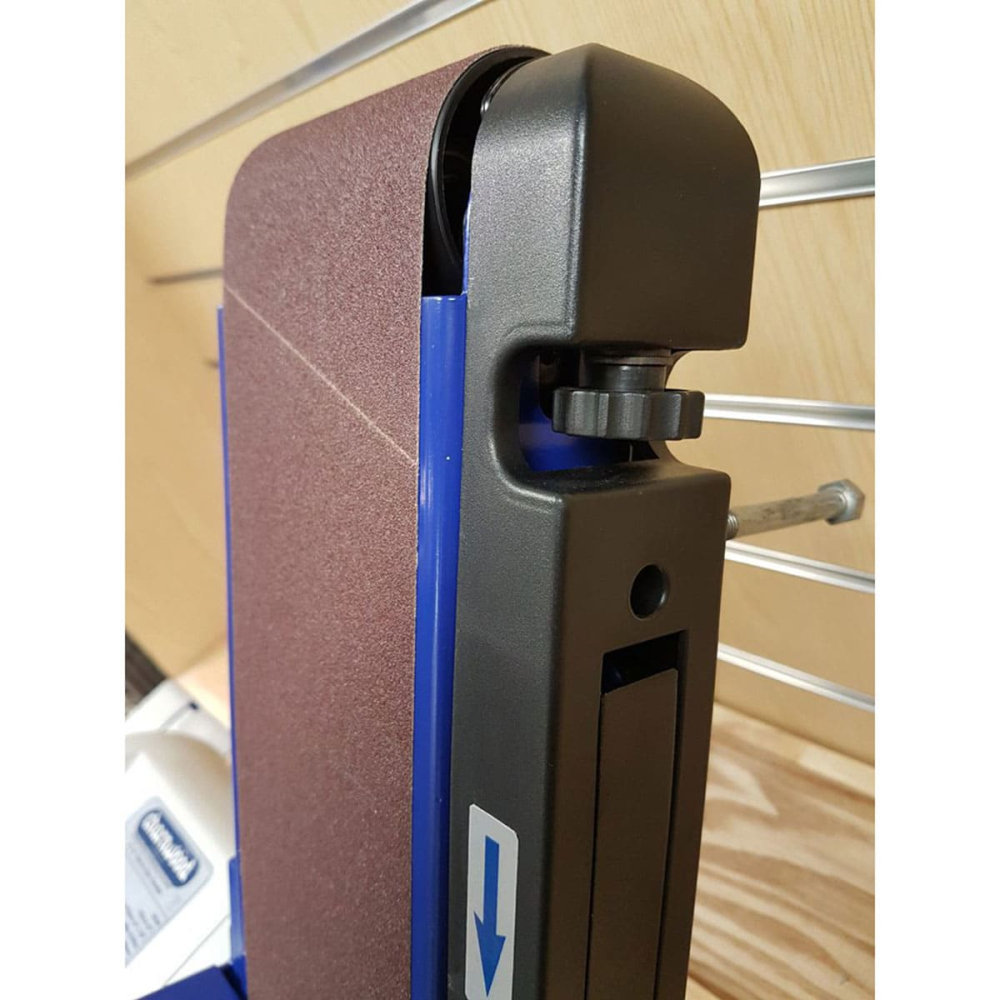

When the time comes to replace the sanding belt there is a quick release tension lever and tracking adjustment to balance the new belt.
The sander sits on 4 rubber feet to provide a stable platform. It can also be secured to a work bench using the 2 mounting points provided.
Supplied with mitre fence, 1 x 80 grit sanding belt, 1 x 80 grit self adhesive sanding disc, 1.9m power cable & UK 3 pin plug.
We recommend wearing a face mask or respirator during all sanding operations, even if a dust extraction system is in place. Don't take chances with your health.

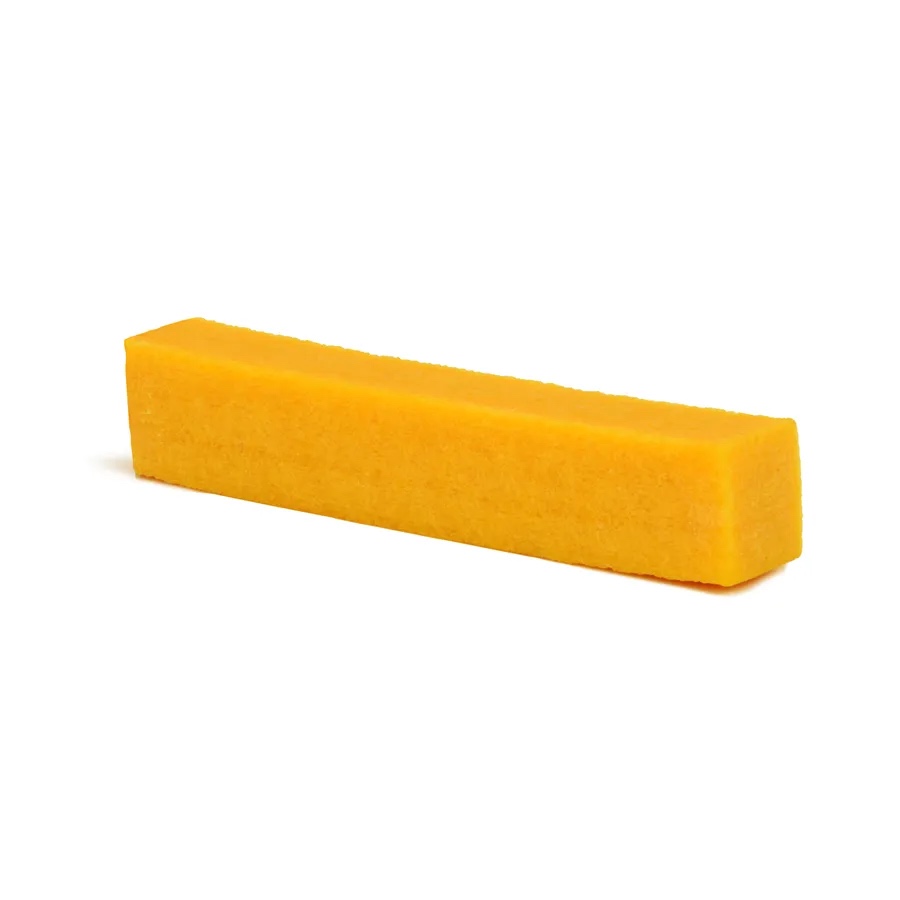

BC01 Sanding Disc, Belt & Sleeve Cleaner
Dramatically increase the life of sanding belts, discs & sleeves with this cleaning stick. Removes clogged up pitch and sawdust when pressed lightly against a moving abrasive material. Can be used on sanding discs, sanding belts and sanding drums. Size 35mm x 35mm x 215mm.

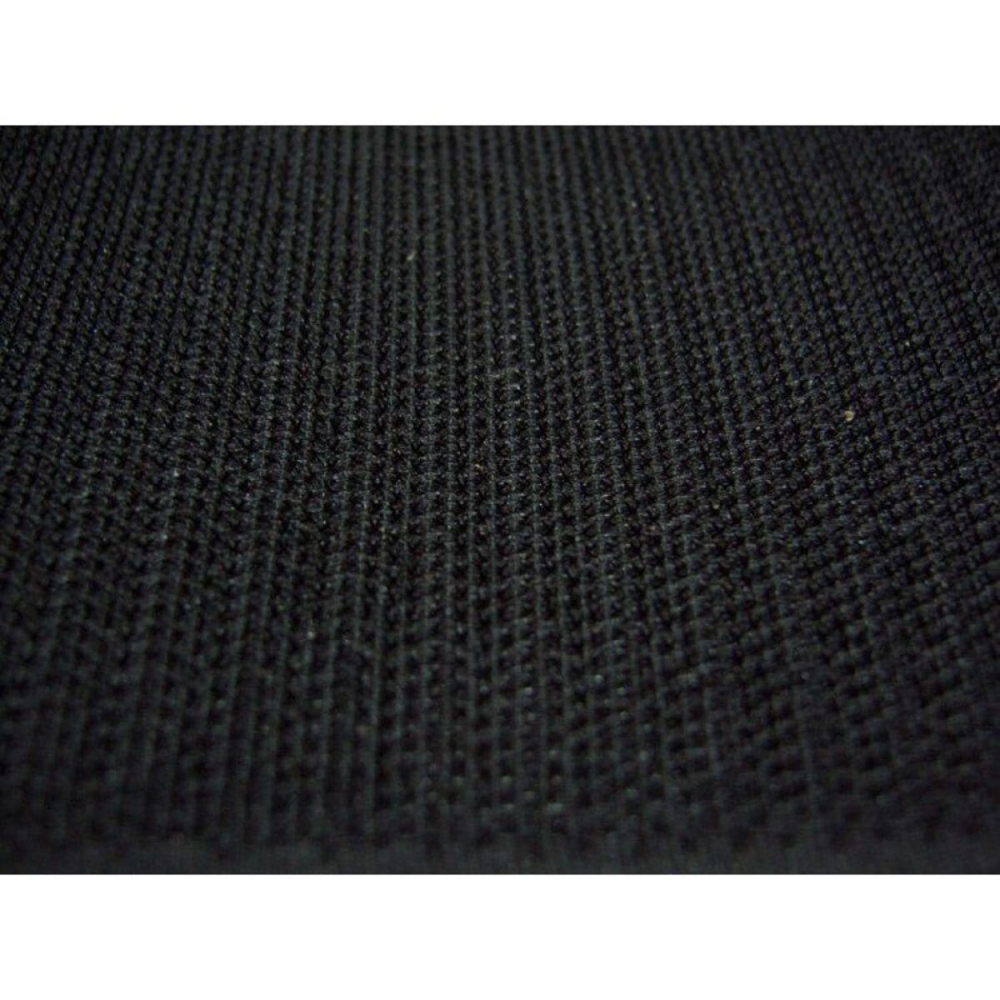

VB150 Hook & Loop Pad to Convert Sanding Discs up to 150mm (6") Diameter
Convert your disc sander to unlock the advantages of the Hook & Loop system.
- Change from one disc to another in seconds
- Work up through grit sizes to achieve a higher quality finish on your work
- Remount a part worn disc
No more wasting a half used disc when switching from one grit to another and no more scraping off old adhesive and stubborn bits of old disc. Simply stick this self adhesive backed hook pad, manufactured by Velcro, onto your disc and trim the edges. Pack contains a square pad 150mm x 150mm. Can be used with any sized disc up to 150mm (6") diameter. Trim to size.
Specification
| Disc Diameter | 150mm (6") |
| Disc Speed | 2850rpm |
| Belt Size | 100mm x 915mm (4" x 36") |
| Belt Speed | 550m/min |
| Motor (Induction) | 240v, 50hz 450w (0.6hp) |
| Work Table Size | 195mm x 35mm |
| Work Table Tilt | 90 to 45 degrees |
| Work Table Guide Slot | 16mm (5/8") |
| Dust Extraction Outlet x 2 | 37mm OD, 31mm ID |
| Overall Dimensions (WxDxH) | 550mm x 530mm x 200mm |
| Shipping Dimensions | 530mm x 580mm x 270mm |
| Weight | 14kg |
| Assembly Time Required | 5 Minutes |
| Rating | Hobby |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
