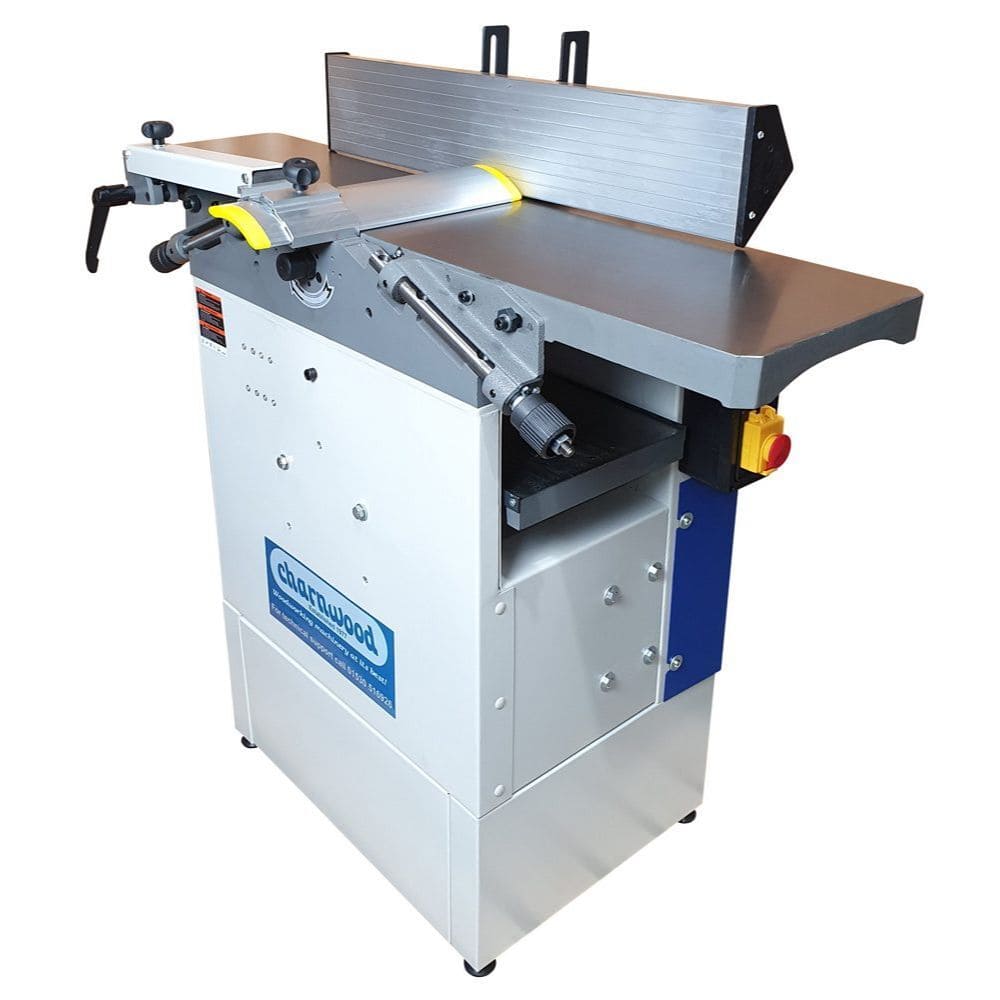

A solid and well finished planer thicknesser for the busy workshop.
- Precision Ground Cast Iron Beds
- 2hp Induction Motor
- 3 Knife Cutterblock for Superior Finish
- 10'' Planing Capacity
- 10'' x 7'' Thicknessing Capacity
- Rubber Coated Outfeed Roller
- 100mm diameter Dust Extraction Outlet

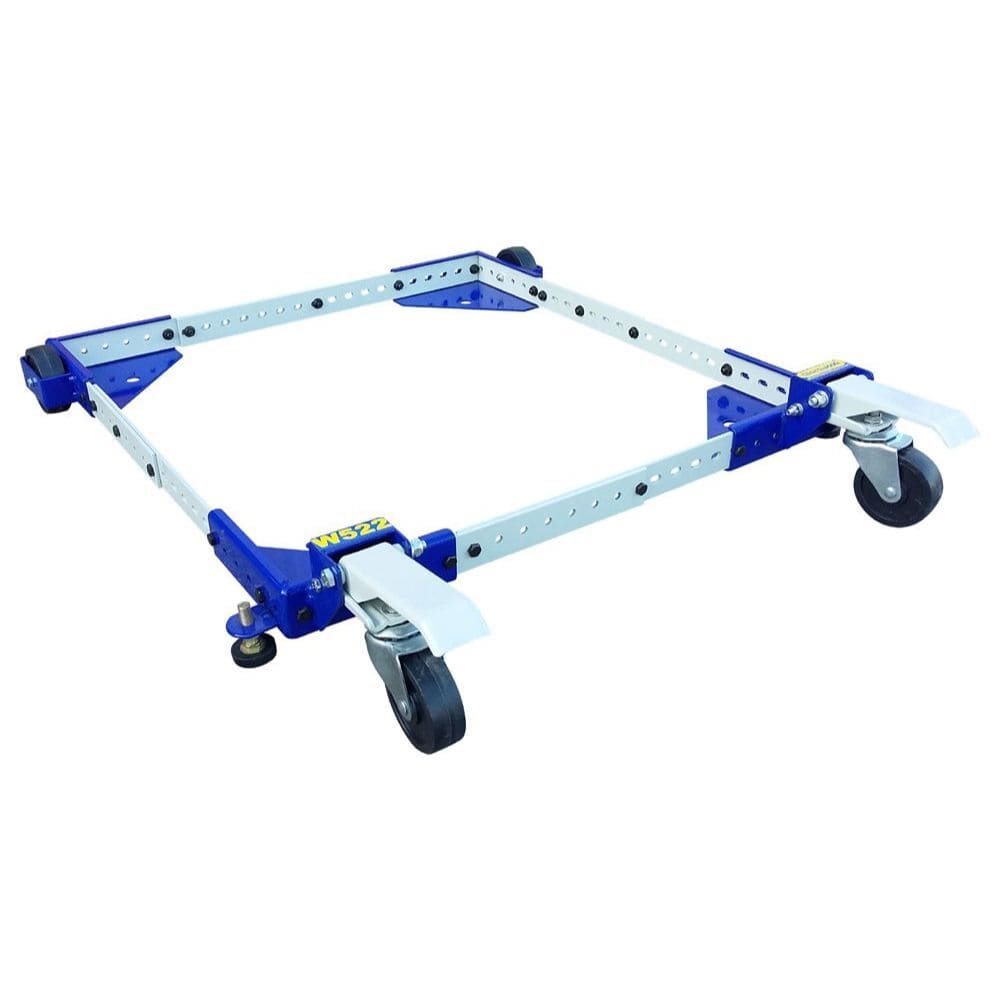

- Optional Wheel Base Available
A solid and well finished planer thicknesser for the busy workshop.

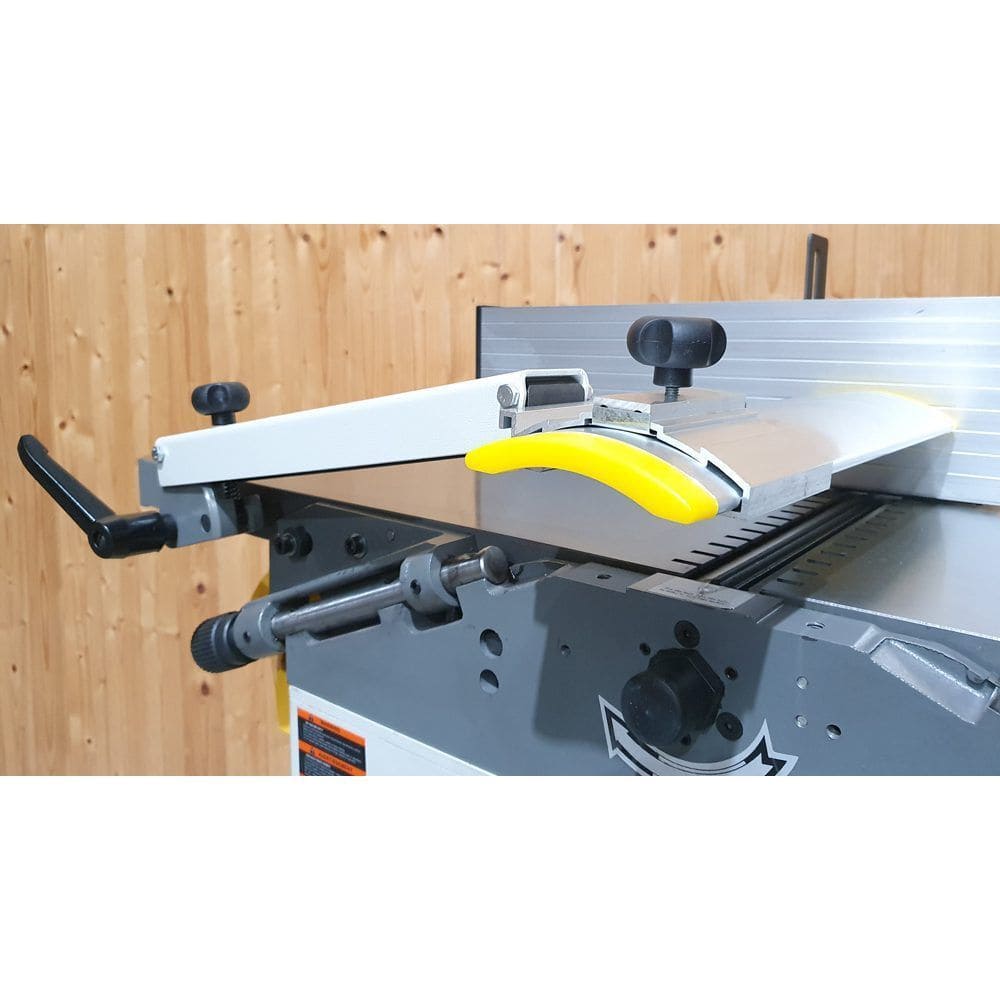

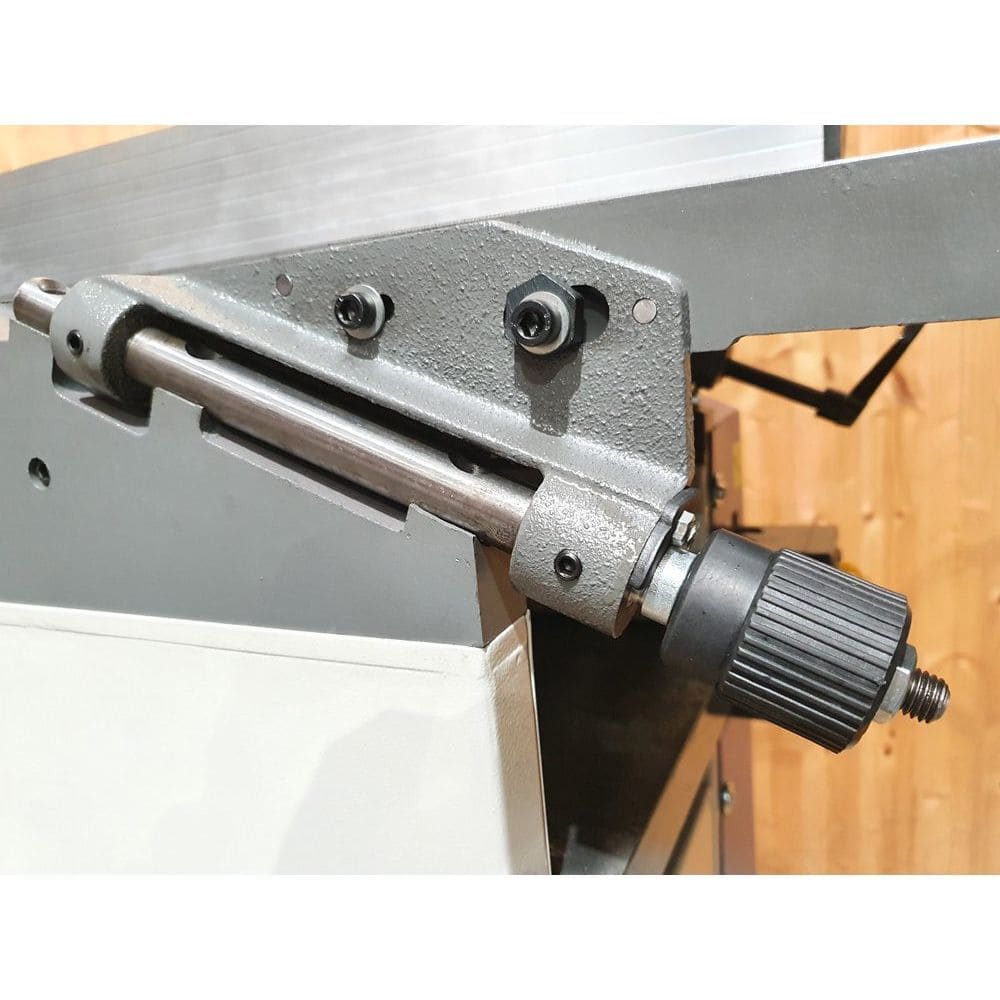

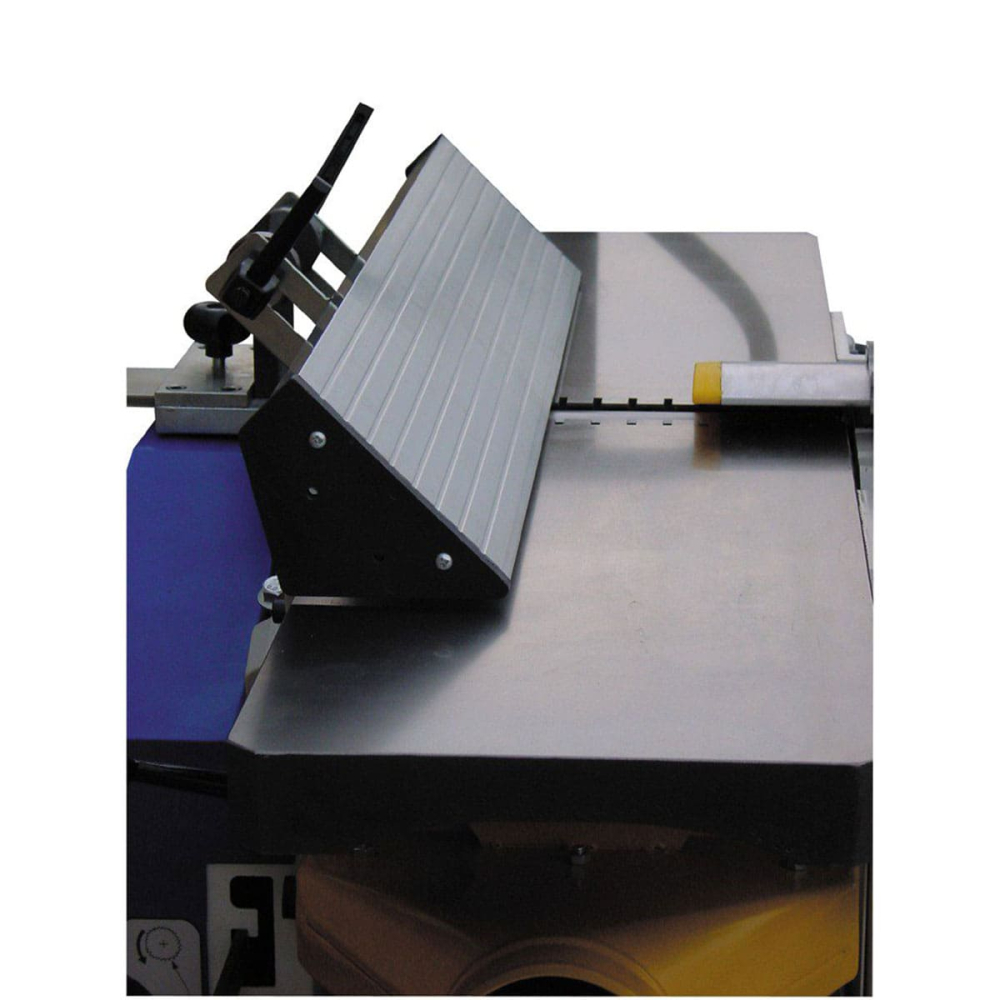

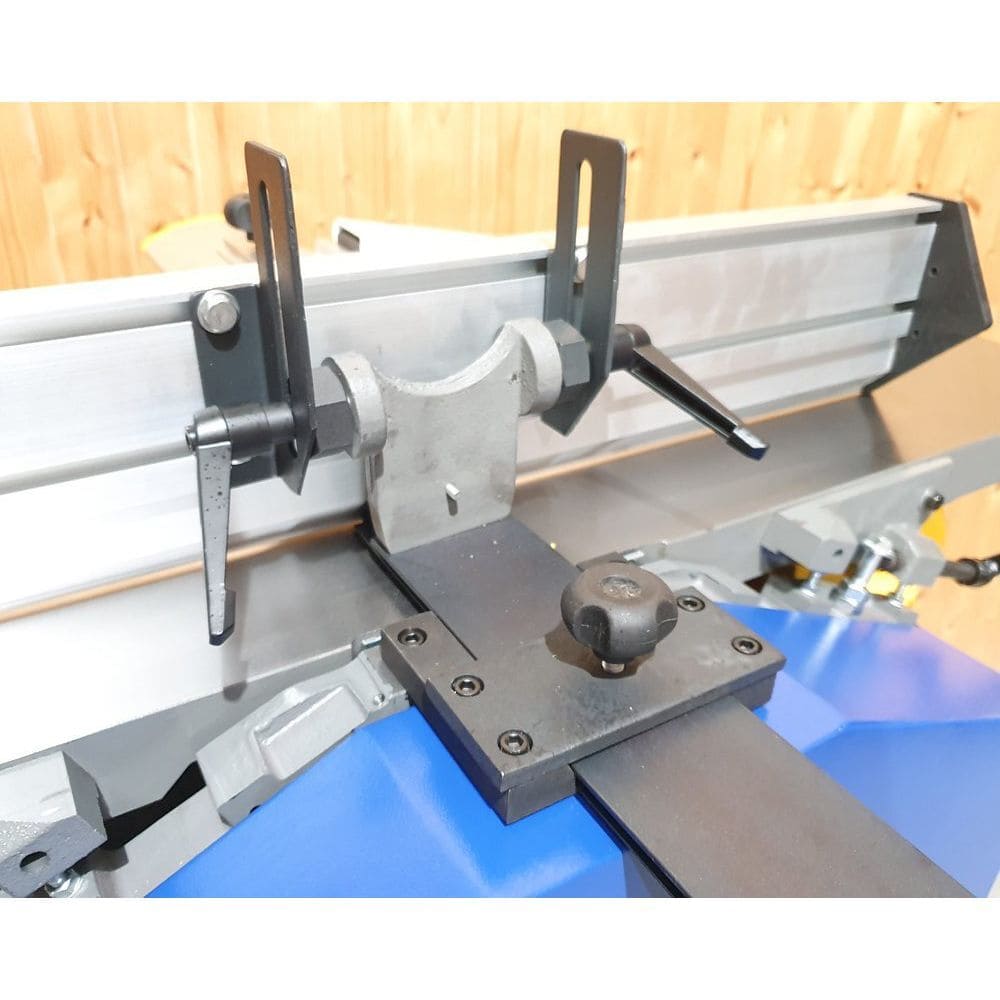

Precision ground cast iron beds and a long tilting fence which can be positioned at any point across the table make this machine a delight to use. The 3 knife cutterblock is powered by a 2hp induction motor and is capable of a cut up to 5mm deep in a single pass.

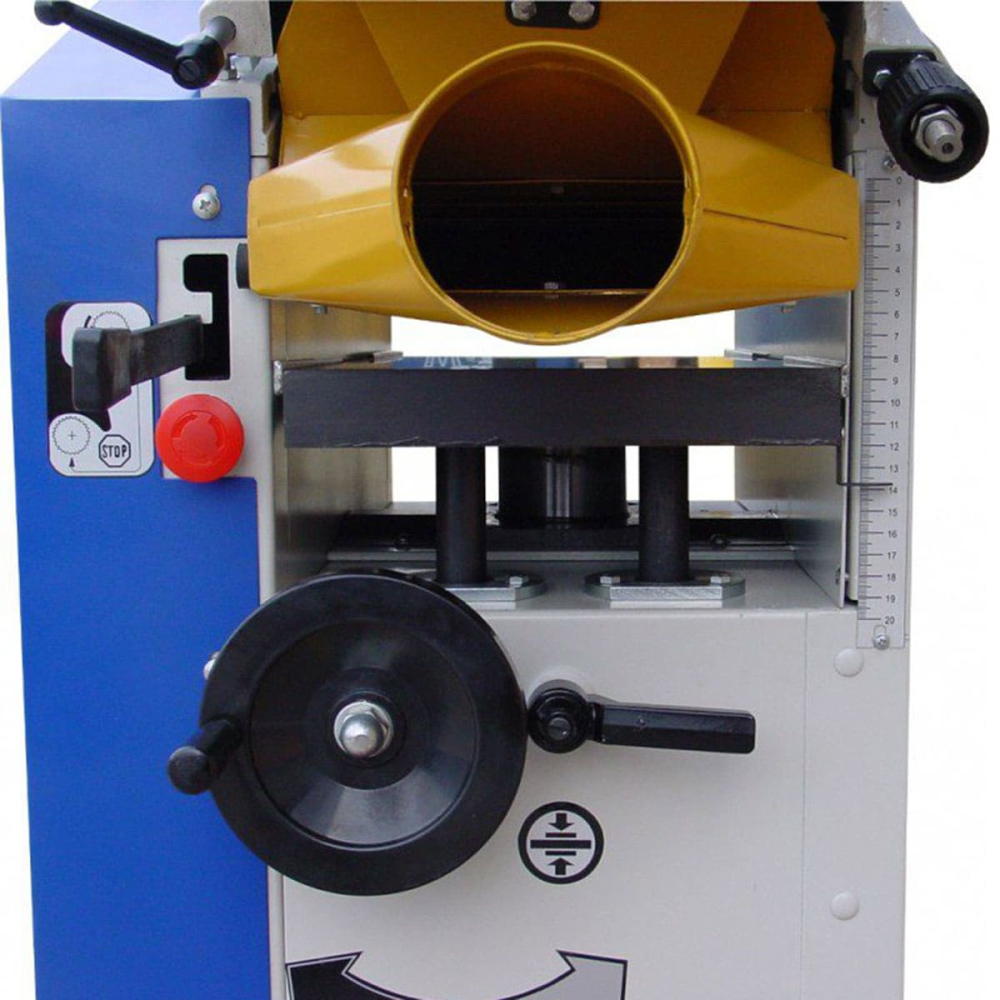

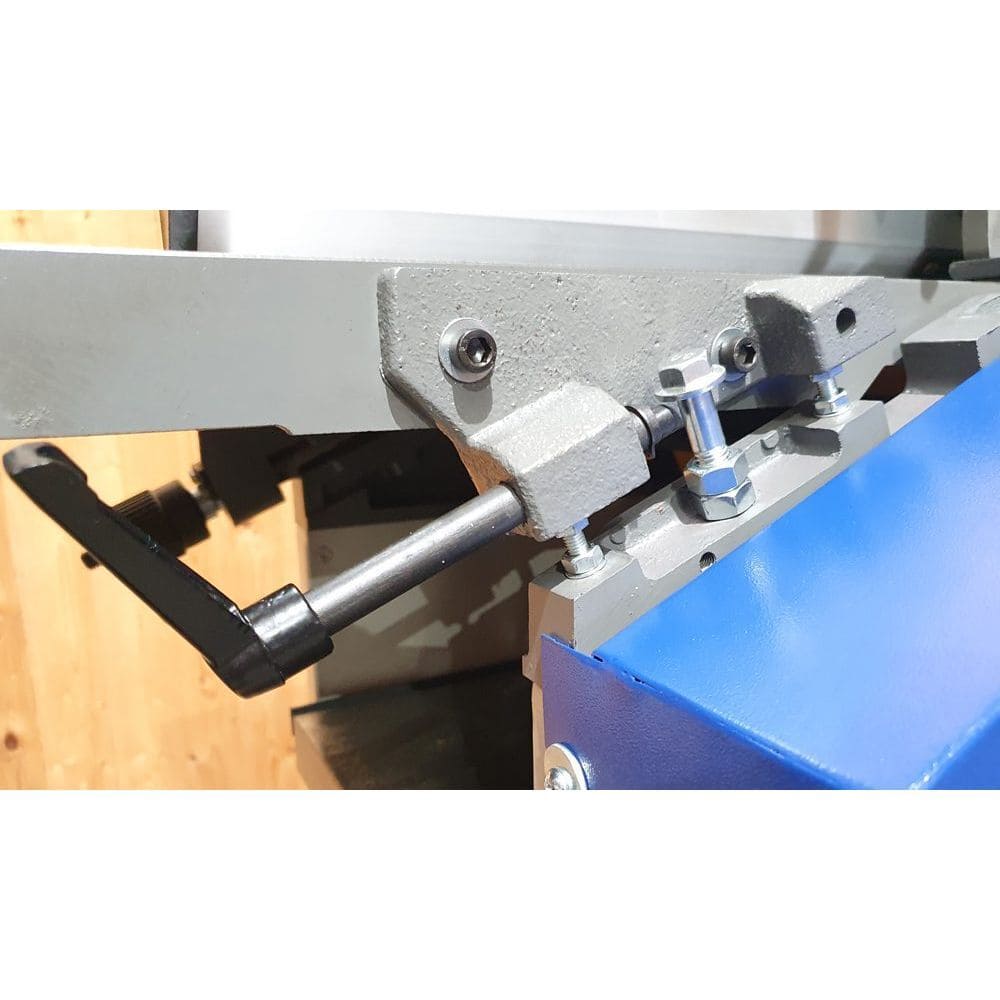

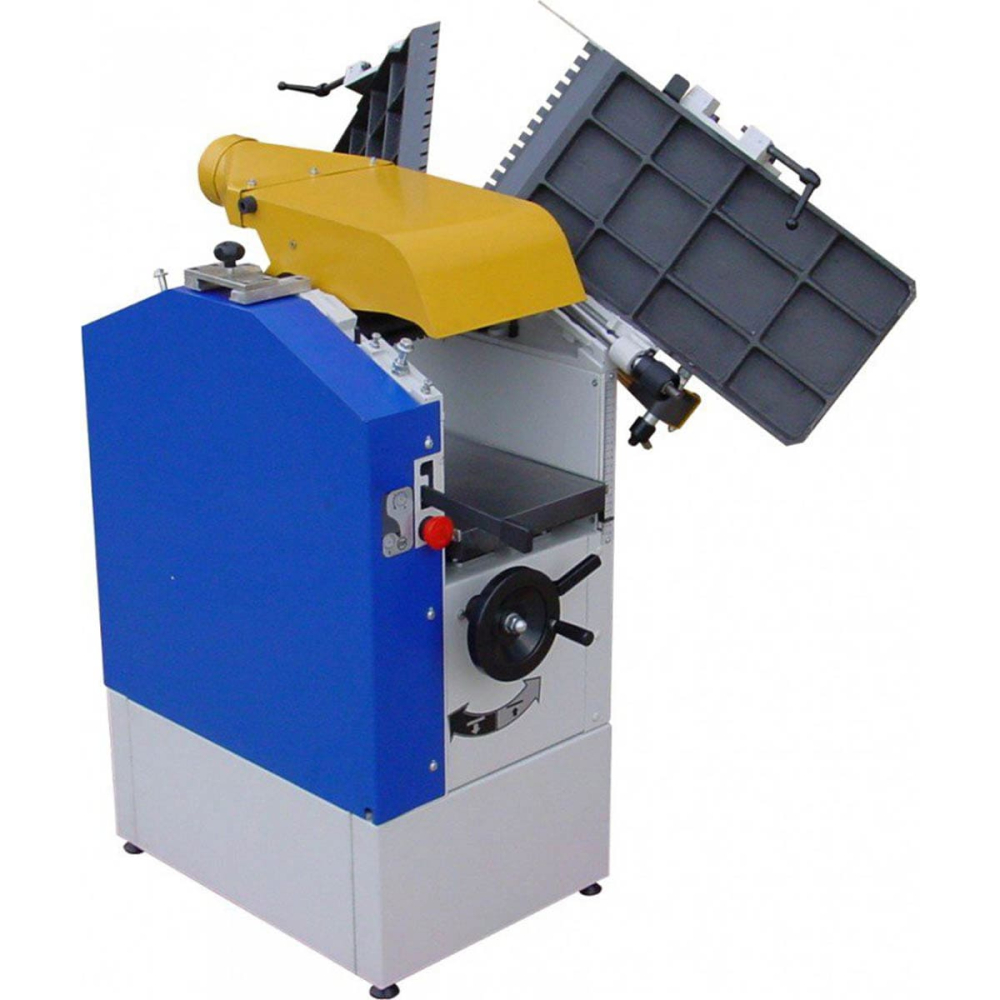

To gain better visibility and access for thicknessing, both of the planing beds are hinged and swing out of the way, without using any tools. A dust hood / cutter guard then swings into position and the conversion to Thicknesser is complete. A sensor detects when the cutter guard is correctly positioned before allowing the motor to run.

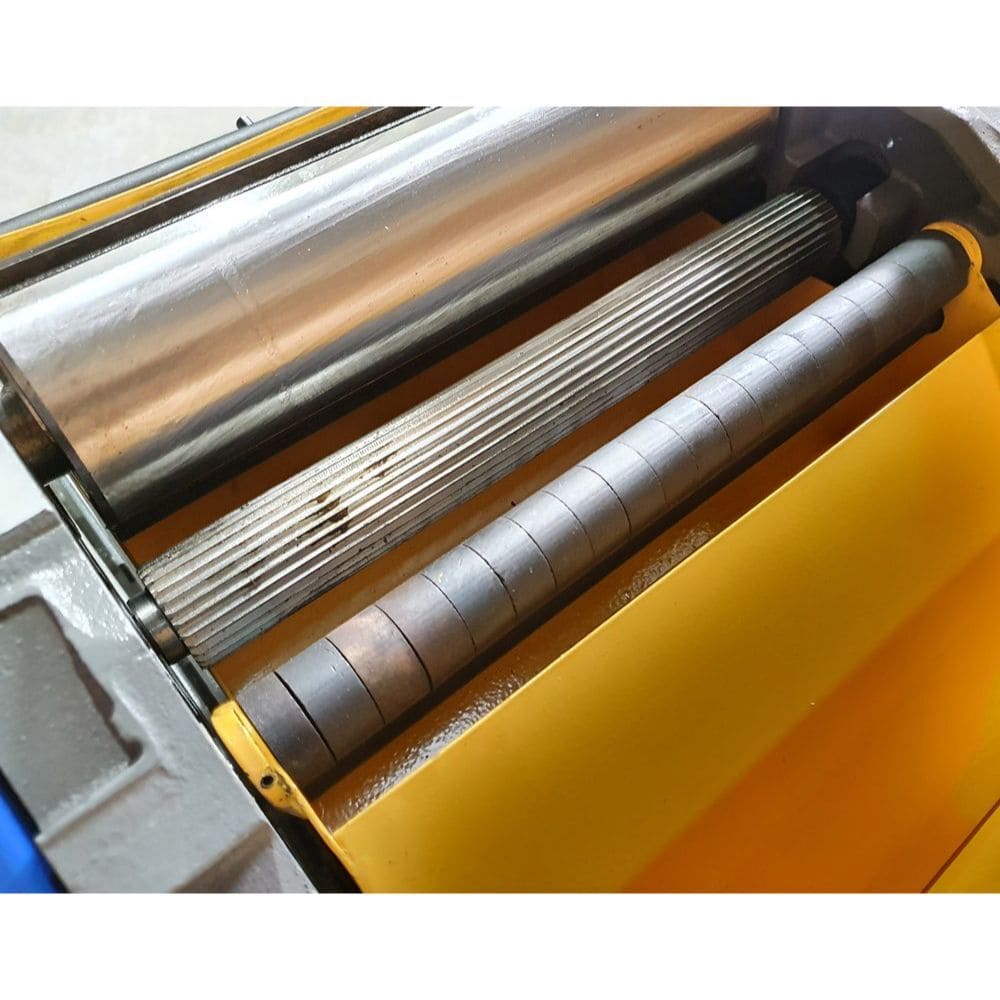

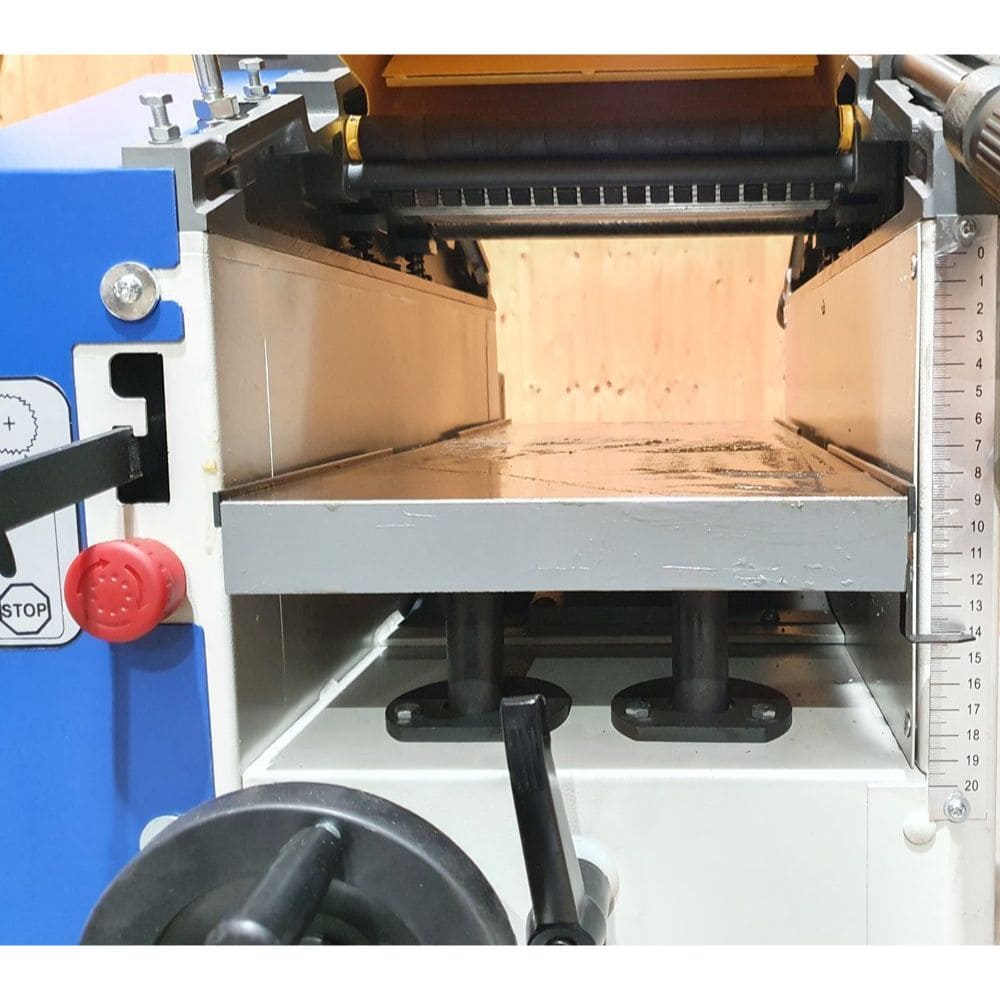

The feed roller drive, which features a rubber outfeed roller, can be disengaged during planing operations to save motor power and general wear on the machine.

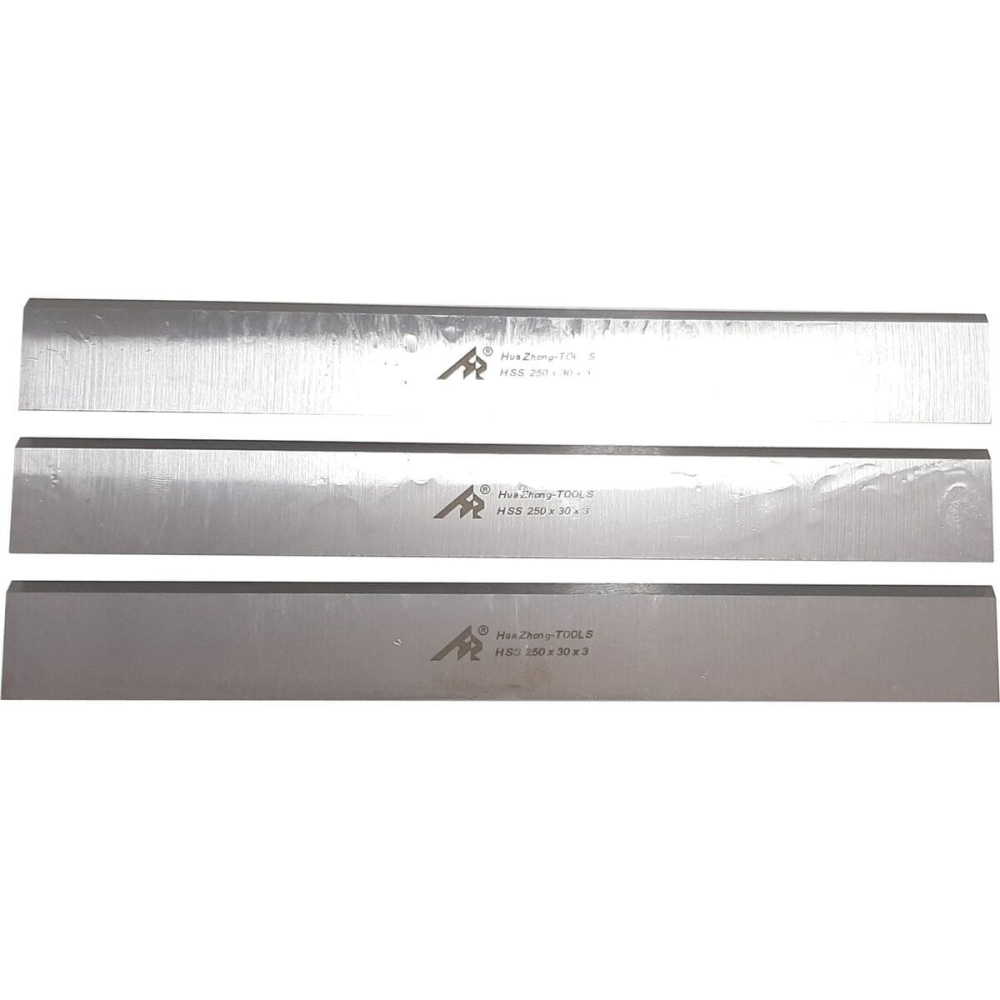

Supplied with 3 knives, 100mm dust extraction outlet, 4 adjustable feet, 1.6m power cable and UK 3 pin plug.
Our W583 planer thicknesser will run off any standard 13amp supply.
It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives. We recommend our W696 Extractor to use with this planer.
Specification
| Surfacing width | 250mm (10") |
| Length of surfacing tables | 1085mm |
| Maximum depth of cut | 5mm |
| Fence tilt | 90 - 45 degrees |
| Table height | 856mm |
| Thicknessing capacity | 5-195mm (1/4"-7") |
| Length of thicknessing table | 600mm |
| Feed speed | 5.5m/min |
| Maximum depth of cut | 2.5mm |
| Cutterblock speed | 4000rpm |
| Number of knives | 3 |
| Motor ( induction) | 1500w (2hp) |
| Assembled Dimensions (WxDxH) | 1100mm x 780mm x 1050m |
| Assembly Time Required | 45 Minutes (Needs 2 People) |
| Weight | 150kg |
| Shipping Crate Dimensions (WxDxH) | 1130 x 500 x 740mm |
| Minimum Door Access Width | 450mm |
| Rating | Trade |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
