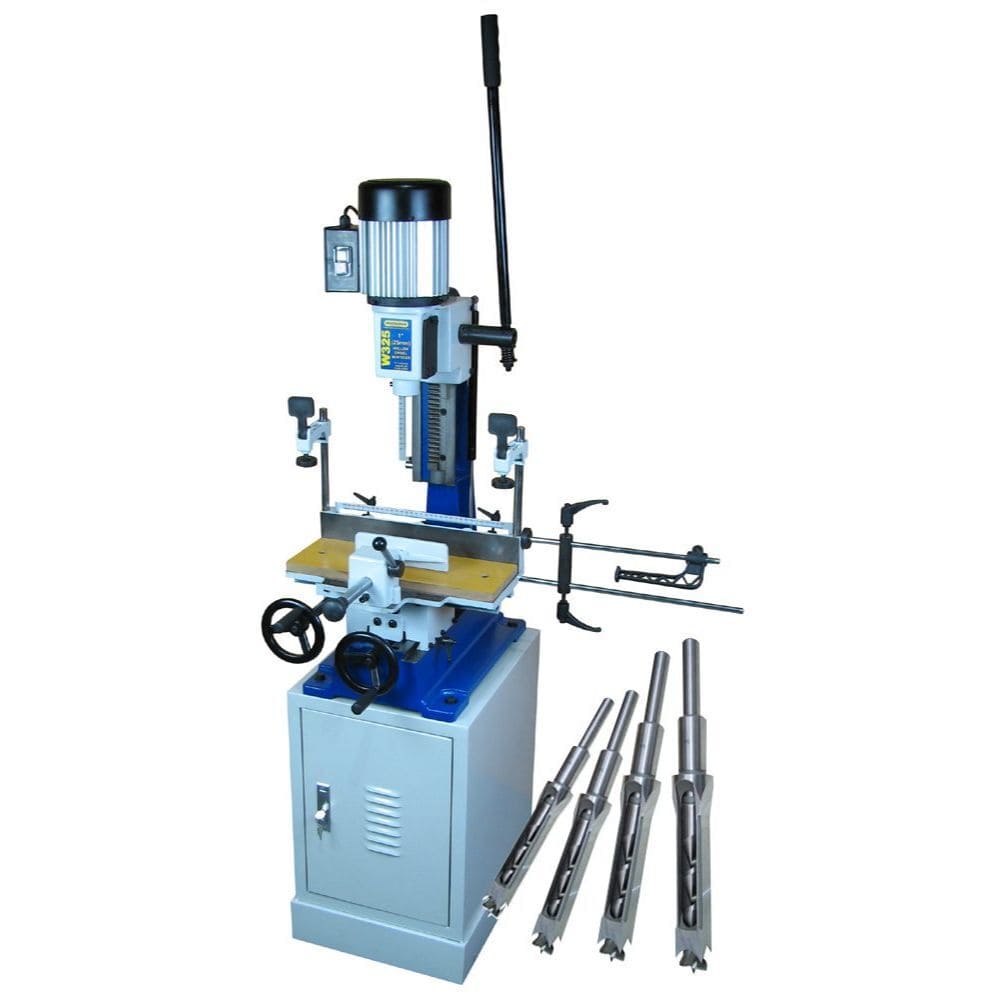

Package consists of:
- W325 Floor standing Morticer
- MCT2 1/4_ Professional Quality Chisel & Bit
- MCT3 3/8_ Professional Quality Chisel & Bit
- MCT4 1/2_ Professional Quality Chisel & Bit
- MCT6 3/4_ Professional Quality Chisel & Bit

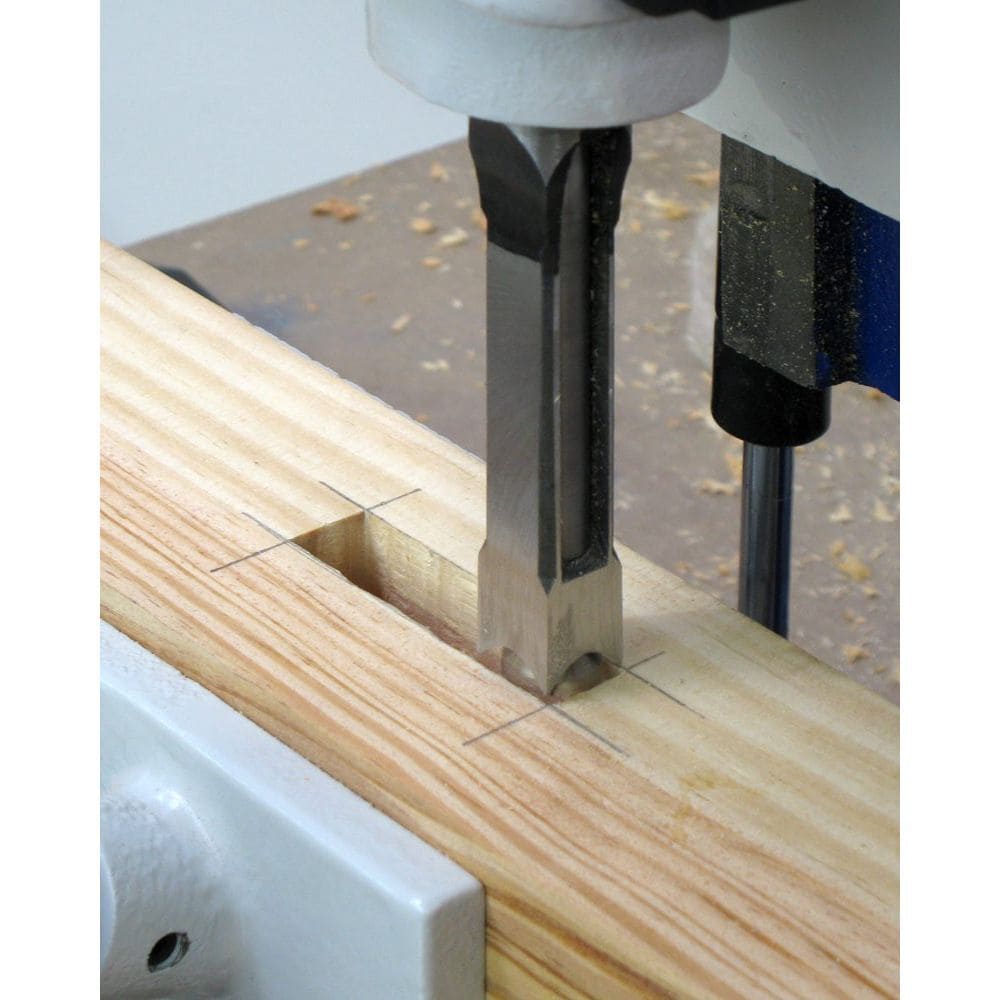

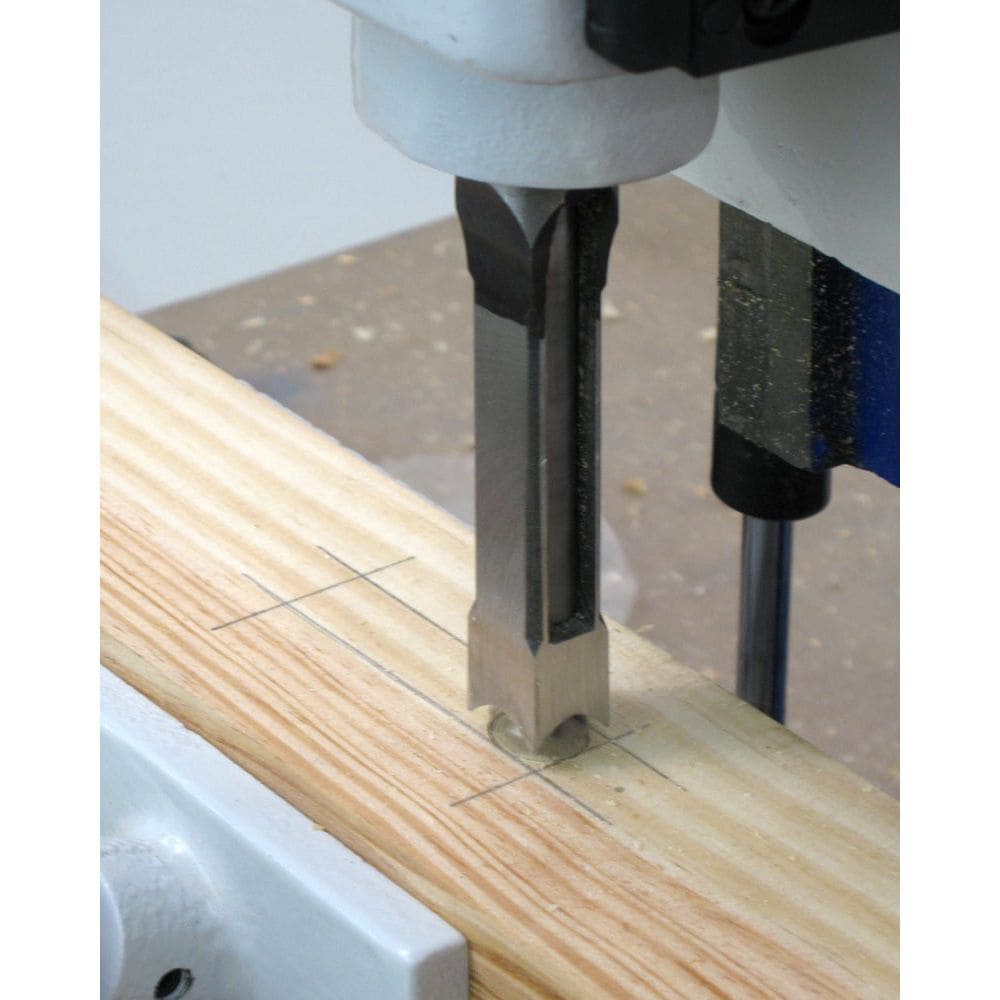

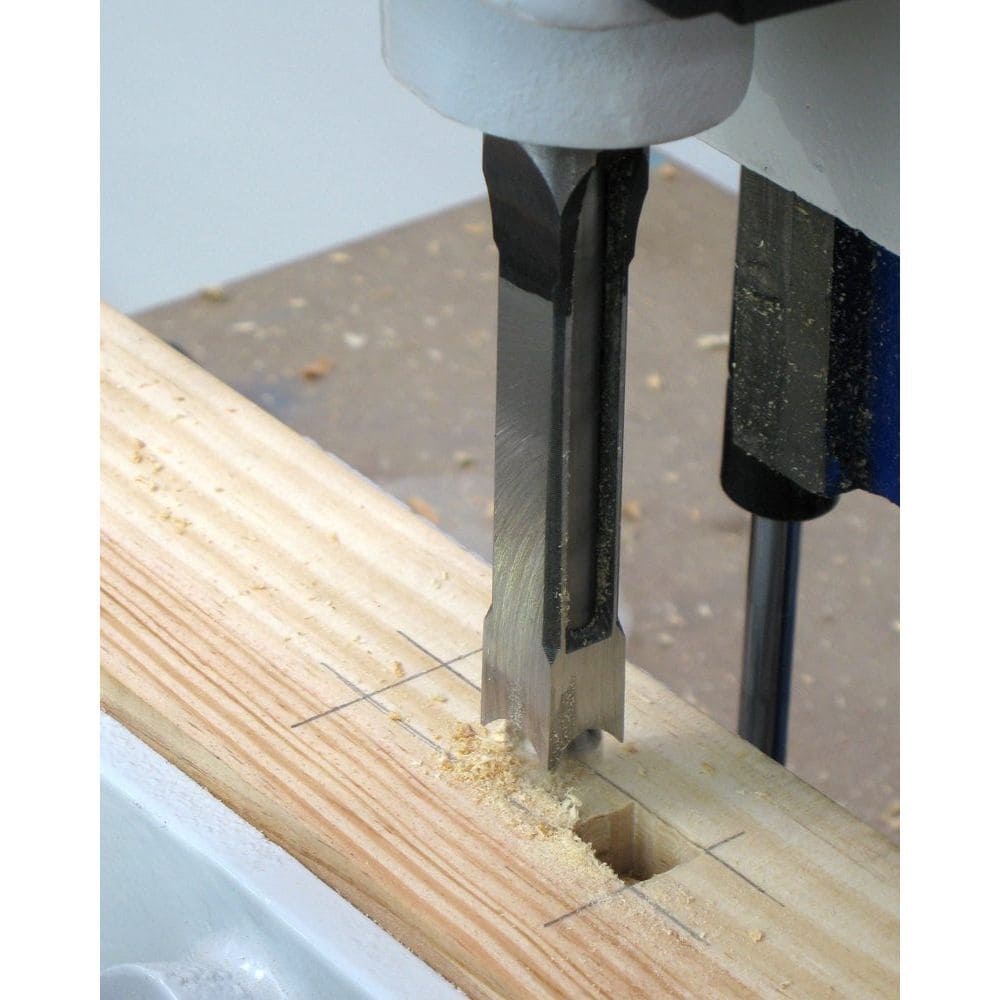

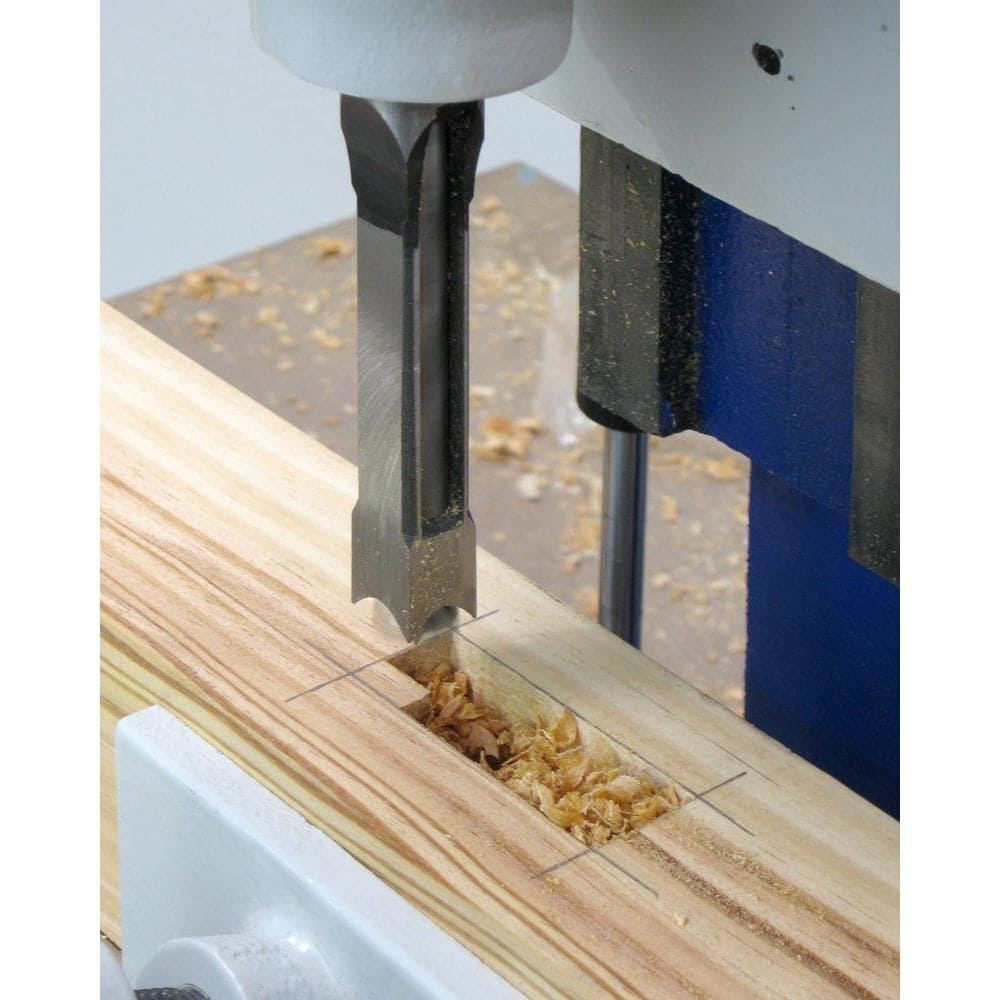

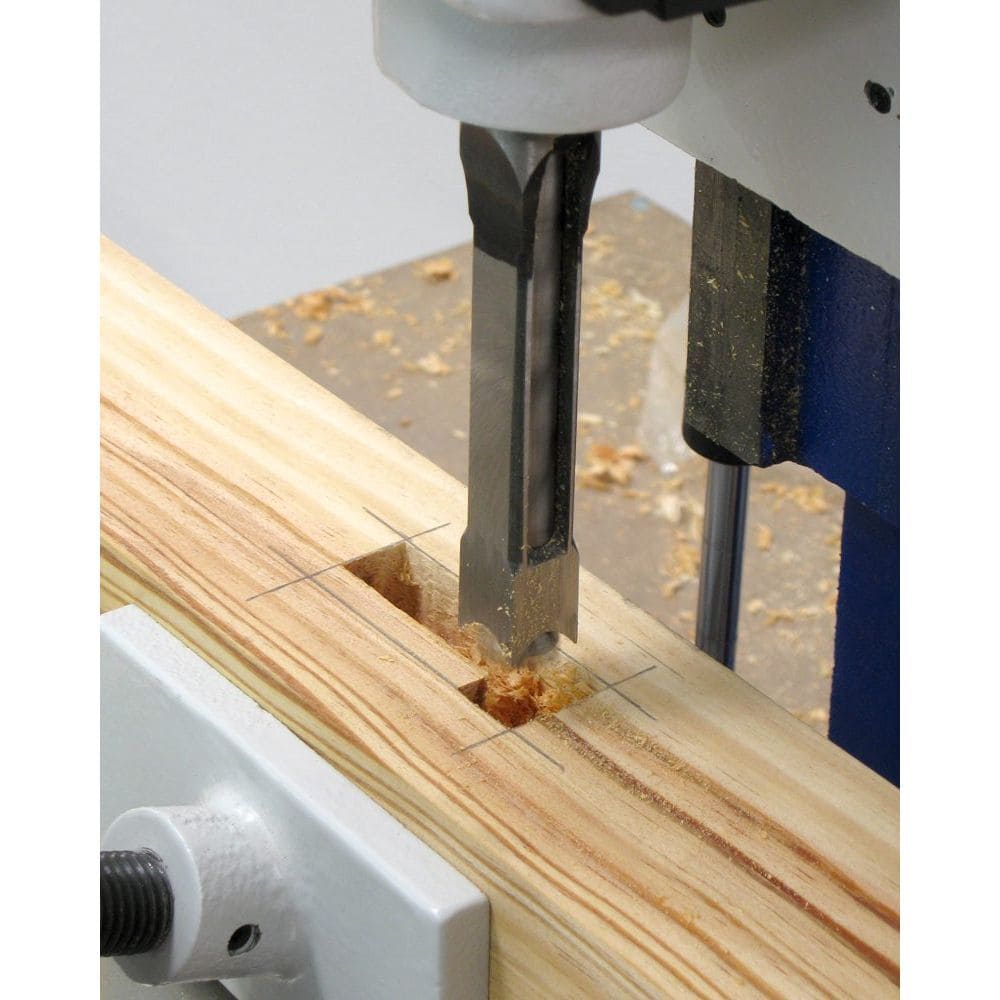

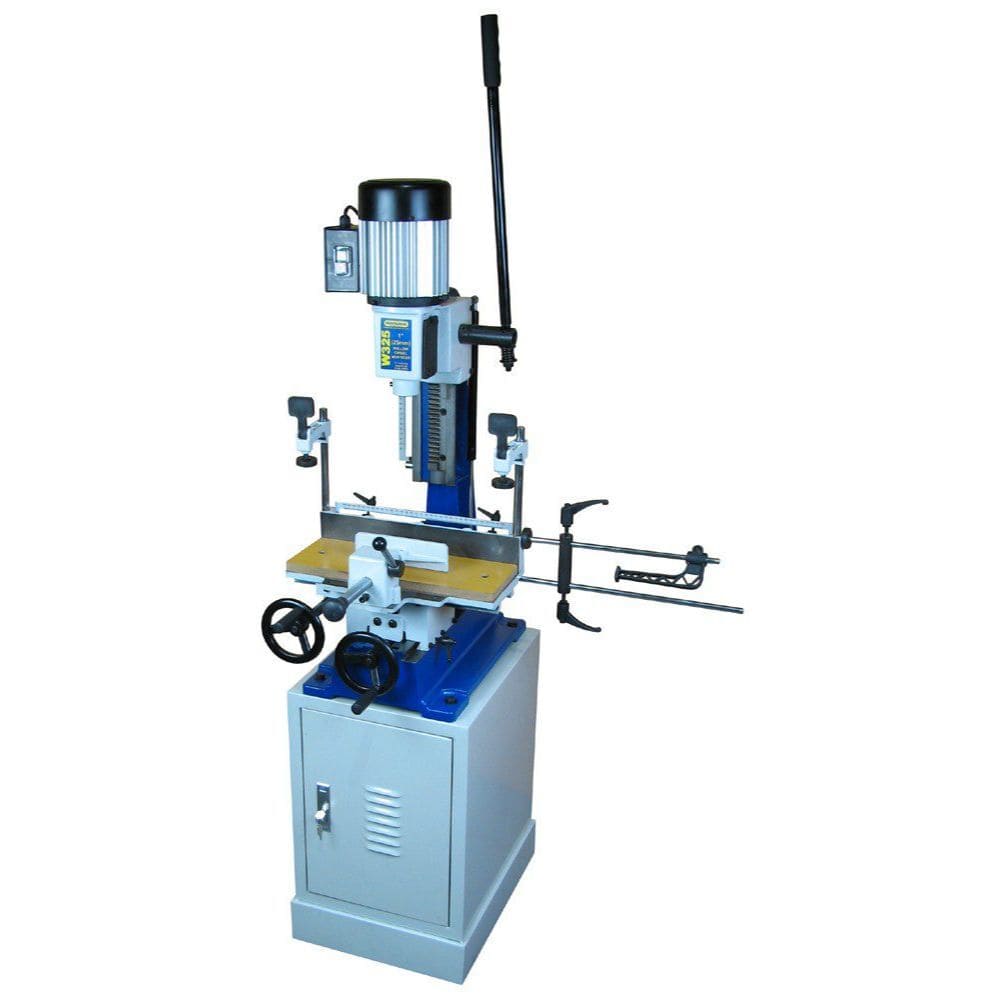

W325: This floor standing hollow chisel mortiser has a huge timber clamping capacity of 8_ x 6_ and can cut mortices up to 85mm deep.

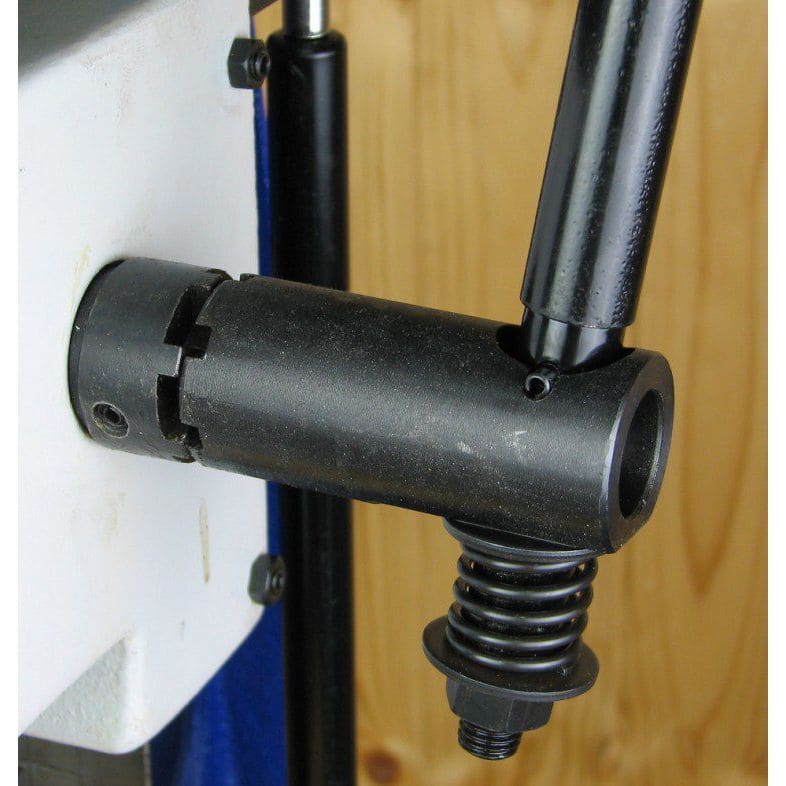

Extensive use of cast iron gives the entire machine strength and solidity allowing larger sizes of chisels to be used without any flexing. The down feed handle can be adjusted so that a comfortable starting position can always be found. When cutting mortices in smaller timber, the head can be lowered so that the starting point of the chisel is just above the timber, which speeds up cutting.

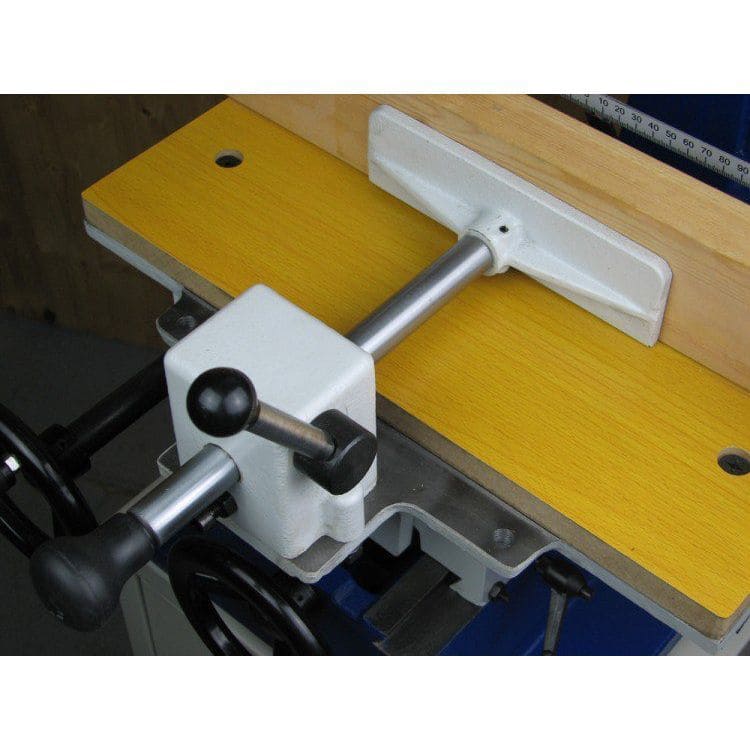

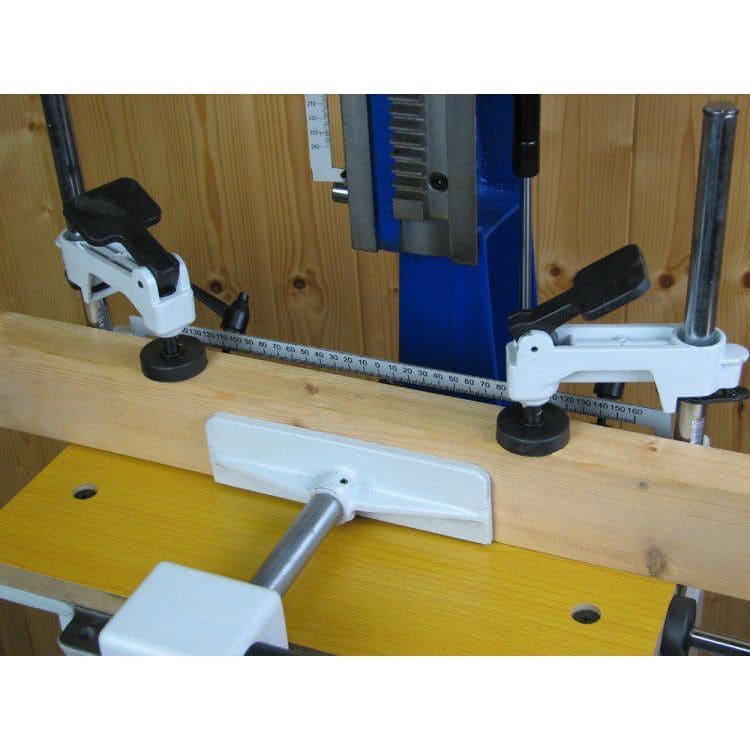

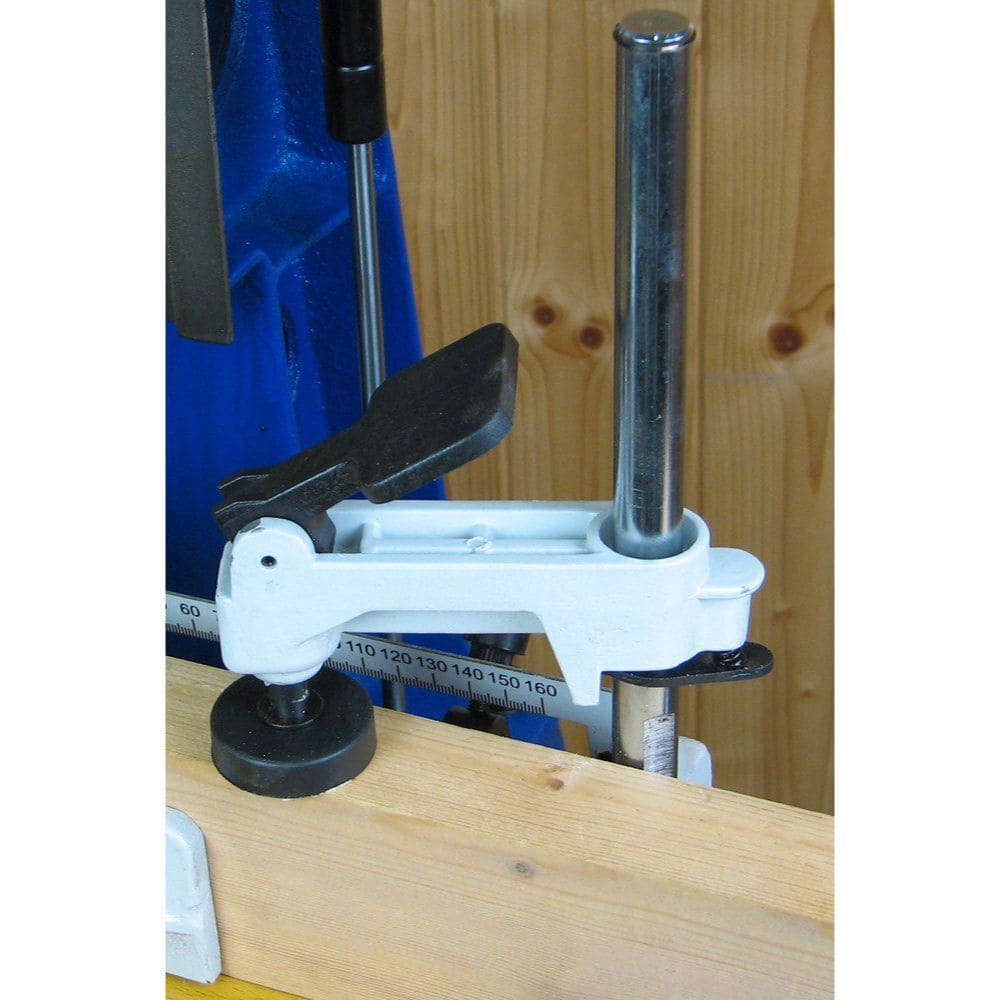

The timber is held in place by a front clamp with a quick action lock and two further cam lock clamps which hold the timber firmly down against the table, to prevent lifting when raising the chisel.
There are then two separate controls for moving the table. Firstly the operator winds the table forwards or back until the chisel is aligned with the back edge of the mortice. The second hand wheel is turned to move the table left or right until the chisel is positioned at one end of the mortice.
The motor has been specially produced to run at a lower rpm than standard motors, which gives a better cut, with less chance of burning.
The cabinet style base, included as standard, has a lockable hinged door on the front with a large storage area inside, perfect for keeping your chisels and service tools safe. 4 adjustable rubber feet ensure that levelling on an uneven floor is simple.

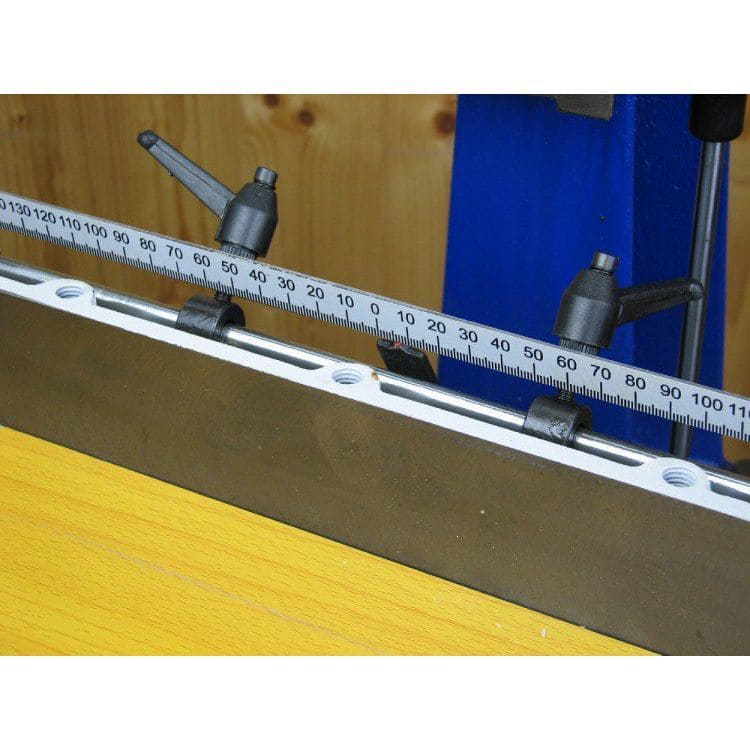

For anyone involved in component production, and wanting to make a series of identical cuts there are stops fitted to the table travel to set the width of the mortice.

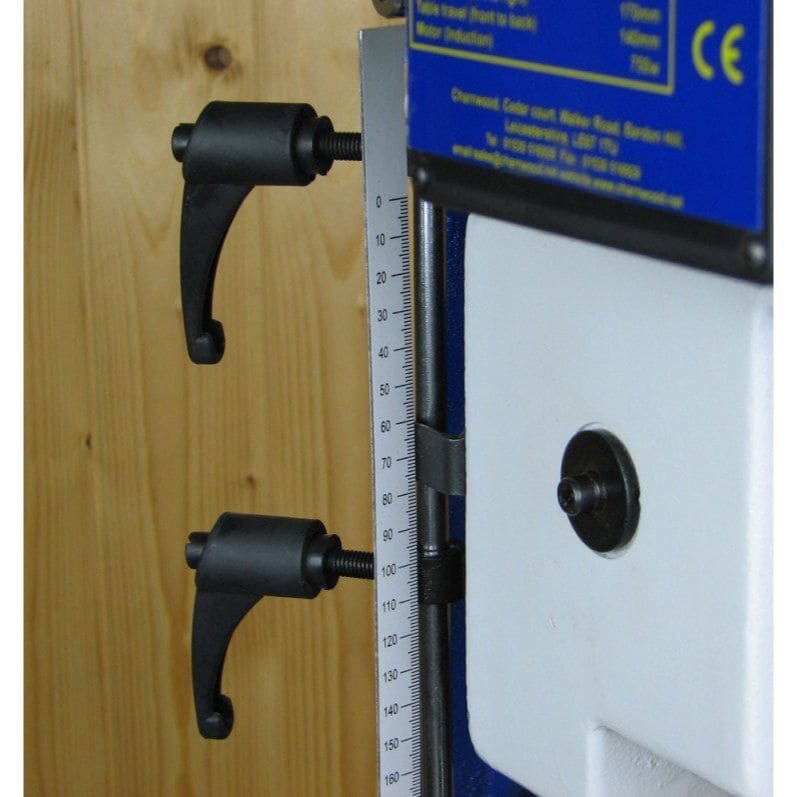

Supplied with, chuck key, bottom depth stop, handle return stop, Left and Right table stops, Length stop, 3/4_ chisel bush, adjustable rubber feet, 1.75m cable and UK 3 pin plug.

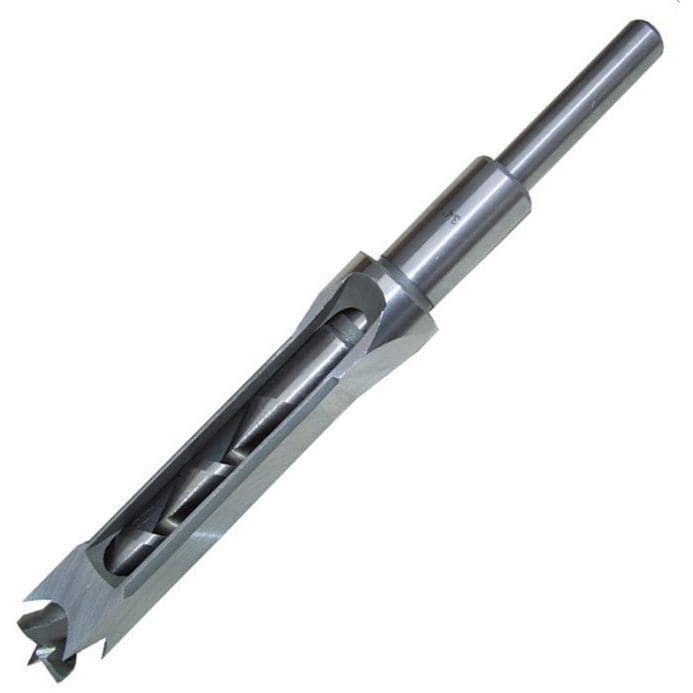

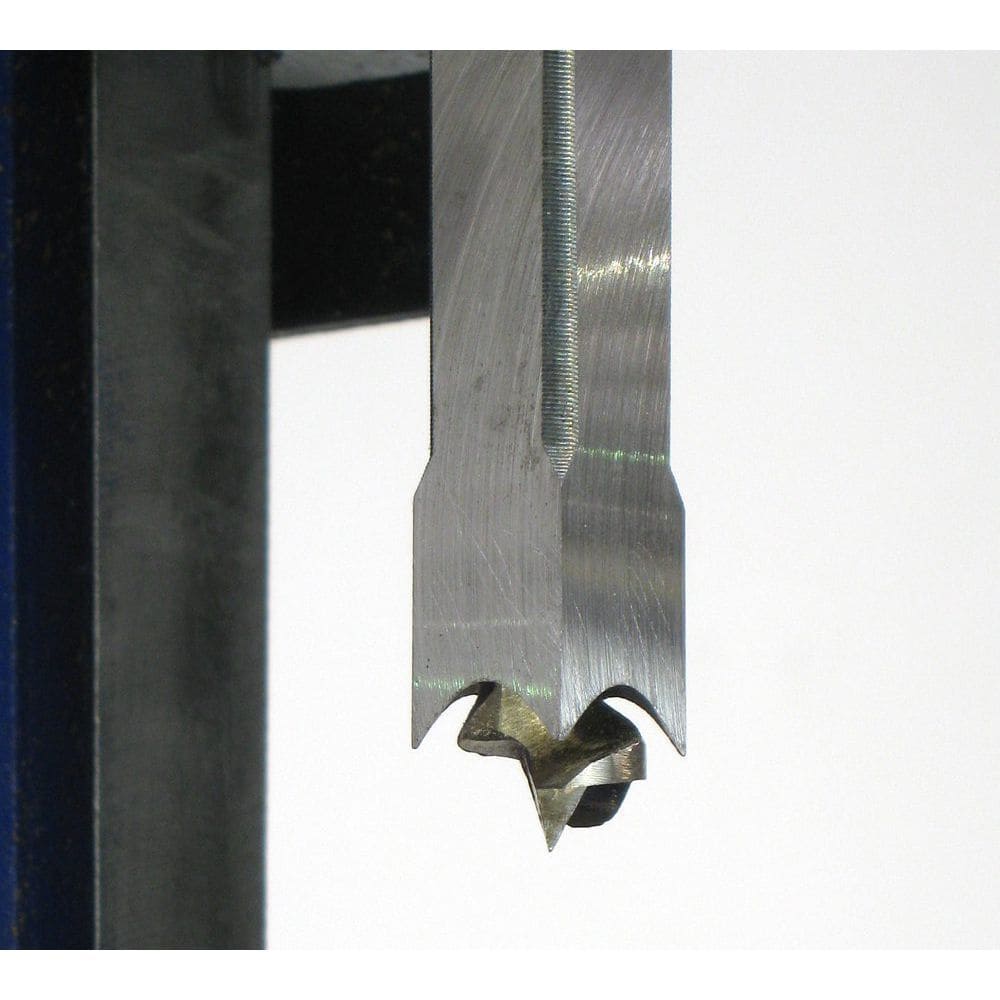

MCT2-6 Chisels: A set of 4 chisels to cover all your morticing joint needs. These are professional quality chisels in imperial sizes with a 3/4_ shank diameter. The auger bit has a point on the end, one cutting spur and a single spiral for rapid chip clearance. The chisel is finely ground with a slight taper to allow easy withdrawal from the mortice.
- MCT2: 1/4_ Chisel, Cutting Depth 40mm
- MCT3: 3/8_ Chisel, Cutting Depth 60mm
- MCT4: 1/2_ Chisel, Cutting Depth 60mm
- MCT6: 3/4_ Chisel, Cutting Depth 85mm
Specification
| From Chisel Bush to Table | 315mm (12") |
| Maximum timber height with a 1/2" Chisel | 205mm (8") |
| Maximum clamping width | 145mm (6'') |
| Chisel capacity | 1/4" to 3/4" (8mm to 18mm) |
| Vertical Chisel Stroke (1 Stroke / Total Travel) | 110mm (6") / 230mm (9'') |
| Accepts chisel shank size | 3/4" |
| Optional chisel shank size (Requires optional bush) | 13/16" |
| Table travel (left to right) | 165mm (6.5'') |
| Table travel (front to back) | 150mm (6'') |
| From Back Fence to Chisel Centre | 0mm to 150mm |

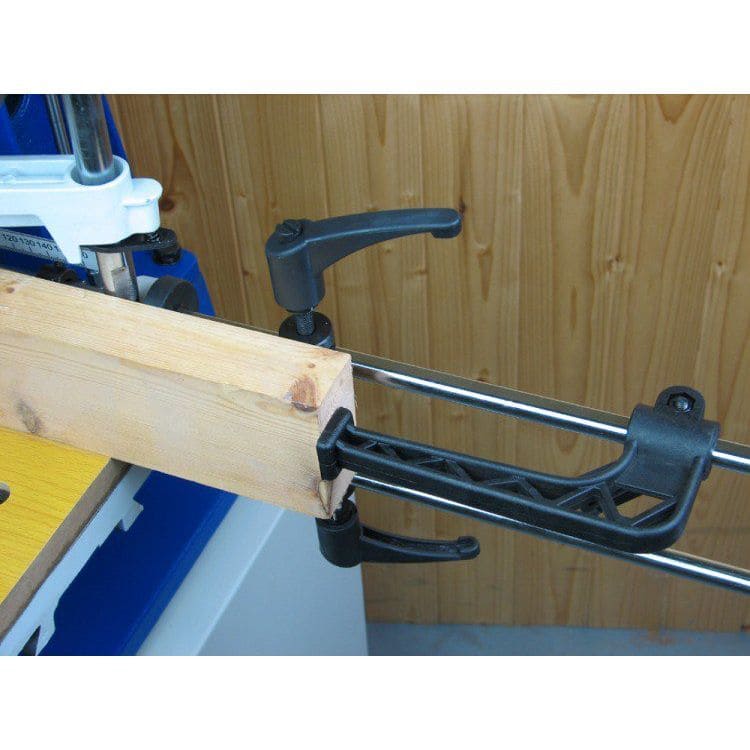

| Length Stop Capacity | 730mm (29") |
| Motor (induction) | 750w (1hp), 240v |
| Motor Speed | 1400rpm |
| Floor to Table | 810mm |
| Dimensions (WxDxH) | 820mm x 720mm x 1800mm |
| Weight | 120kg |
| Assembly Time Required | 30 Minutes (Needs 2 People) |
| Rating | Trade |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
