- Professional Quality Motor
- Can Run up to 8 Hours a Day
- Ample 1000m3/hour Flowrate
- Quiet Induction Motor
- Transparent Collection Bag
- 2m Length of Hose Included
- 1 micron cartridge filter

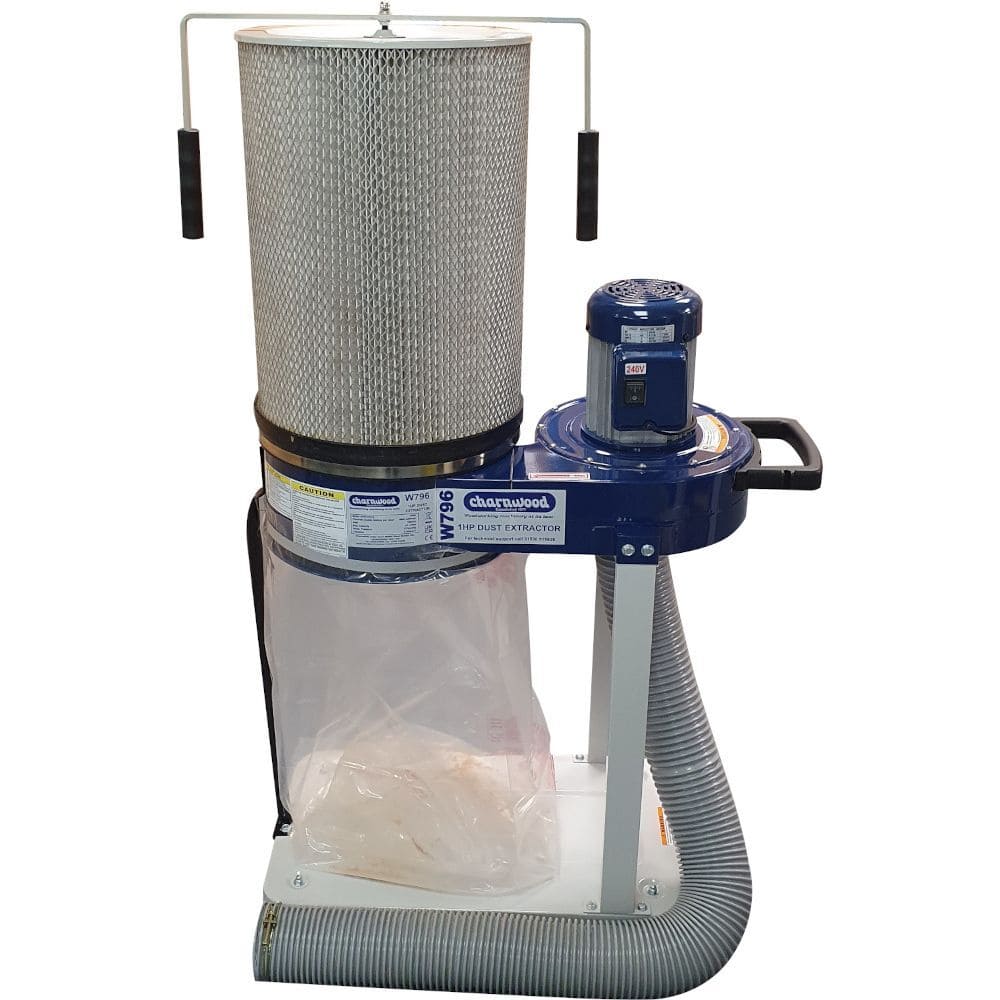

W796 1hp Professional Dust Extractor with 1 Micron Cartridge Filter Upgrade

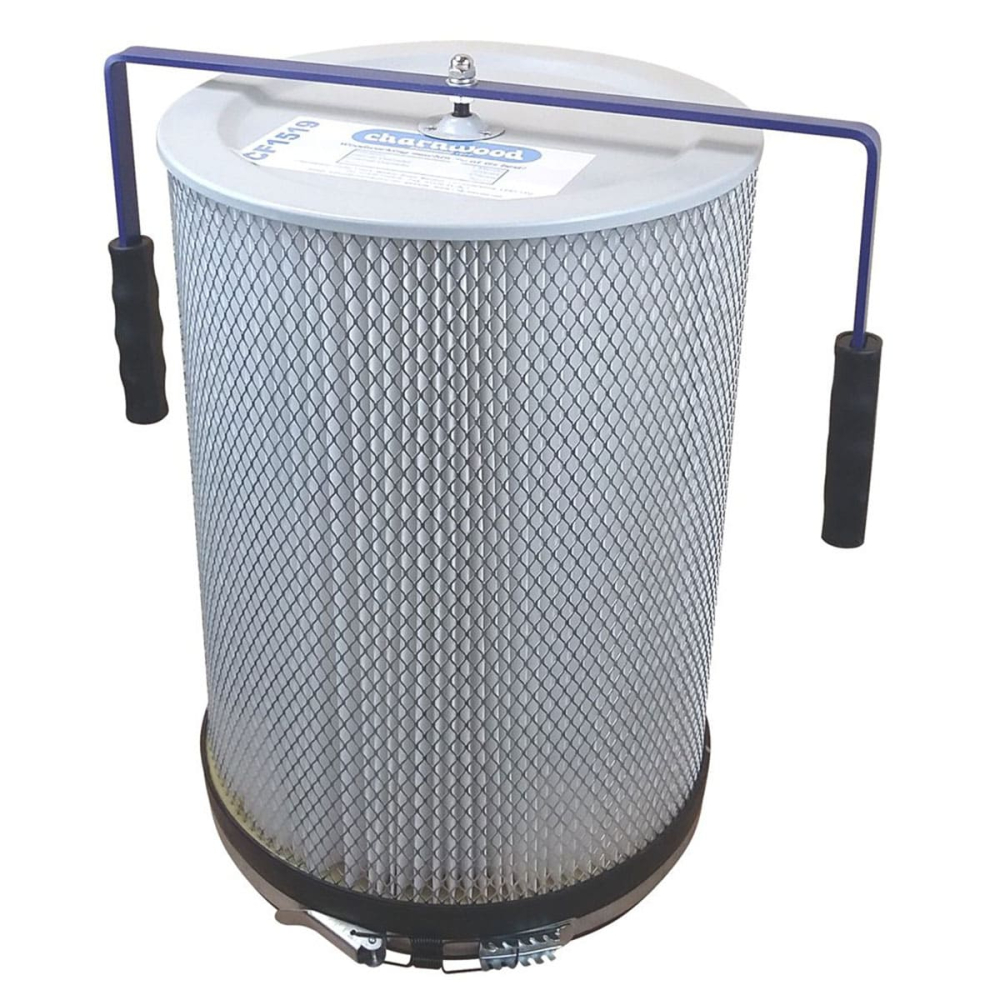

The W796 is a professional level dust extractor, capable of extended running times up to 8 hours per day. This package upgrades the normal 2 micron cloth filter to a 1 micron cartridge filter.
The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.

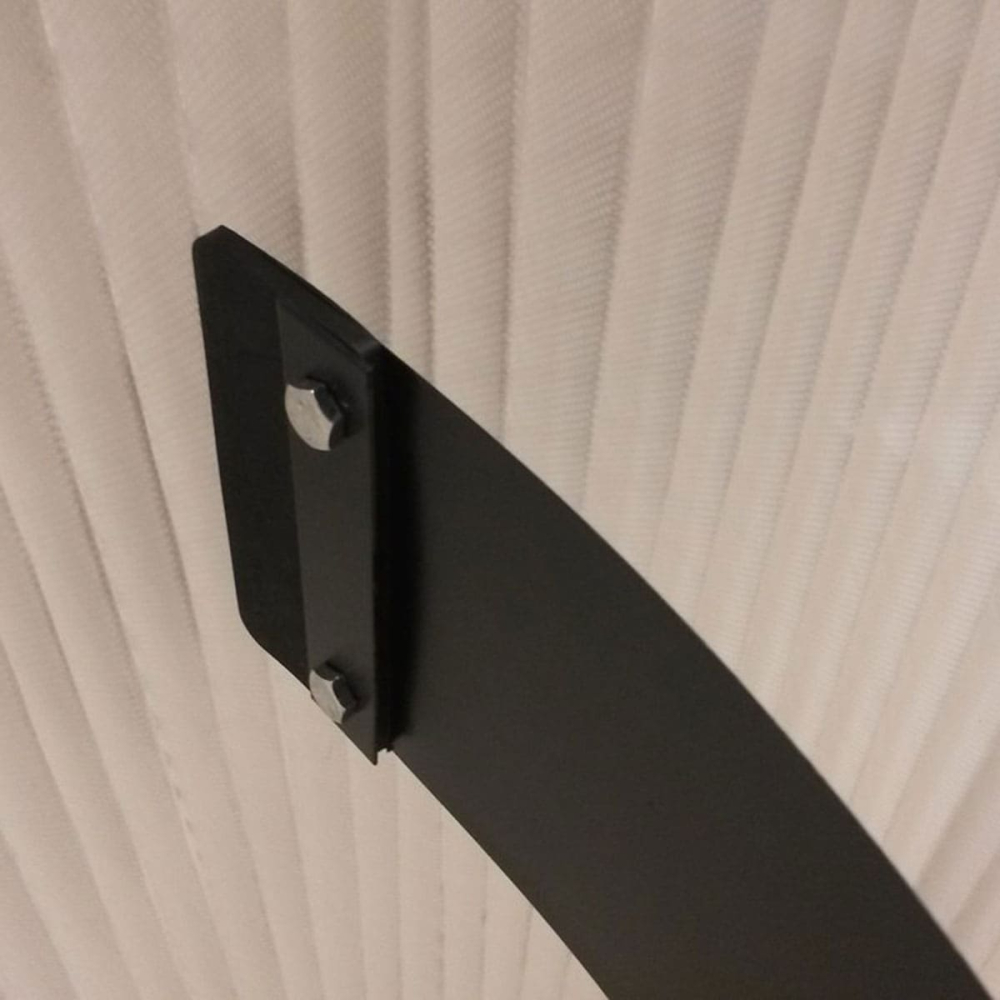

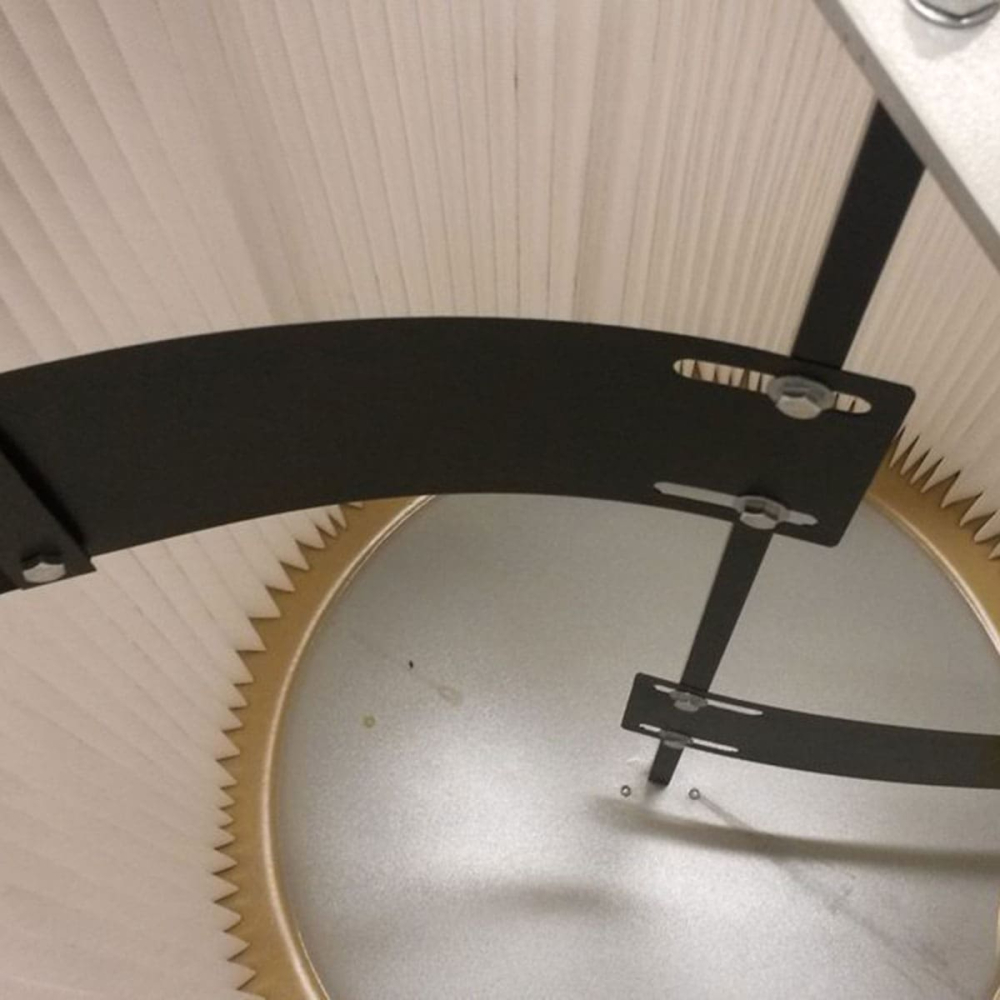

This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range. The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders. To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handle, moves the internal paddles which clean the inside of the filter and prevent clogging.

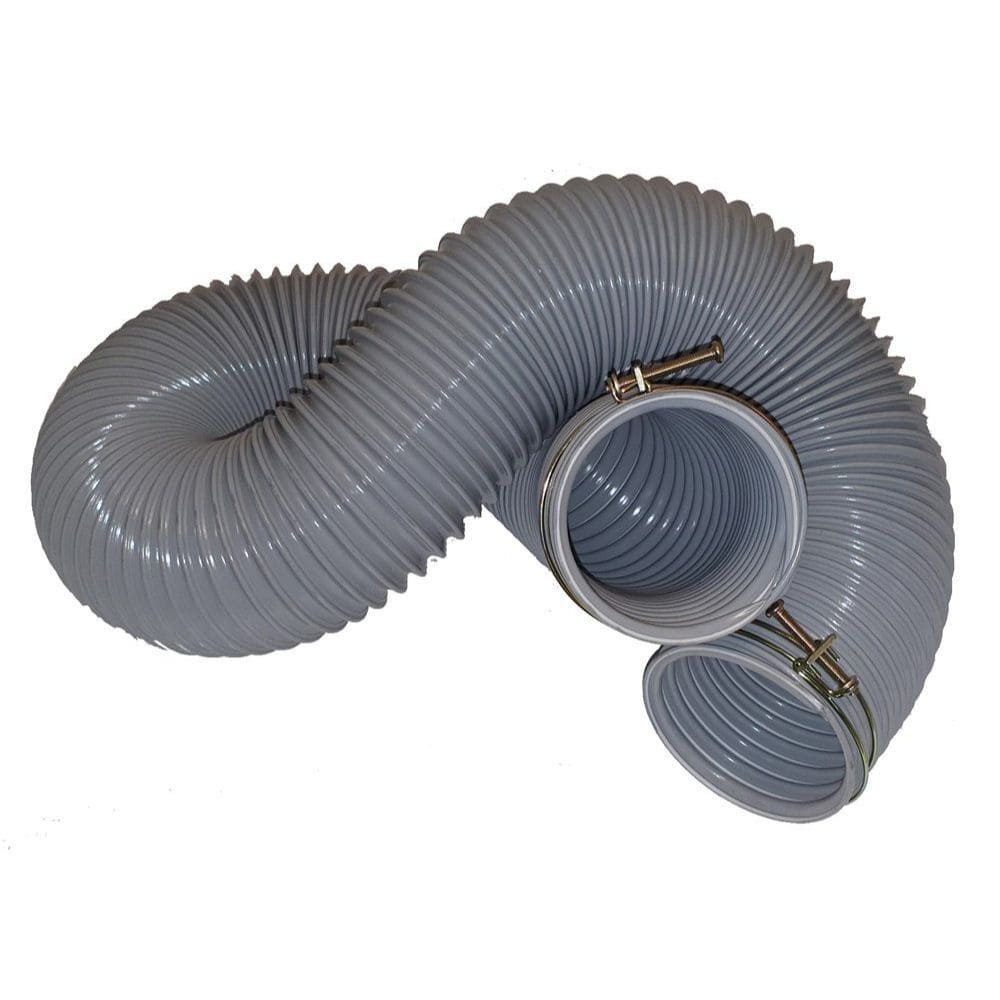

It is supplied with a length of 100mm diameter hose, ready to connect to most machinery.

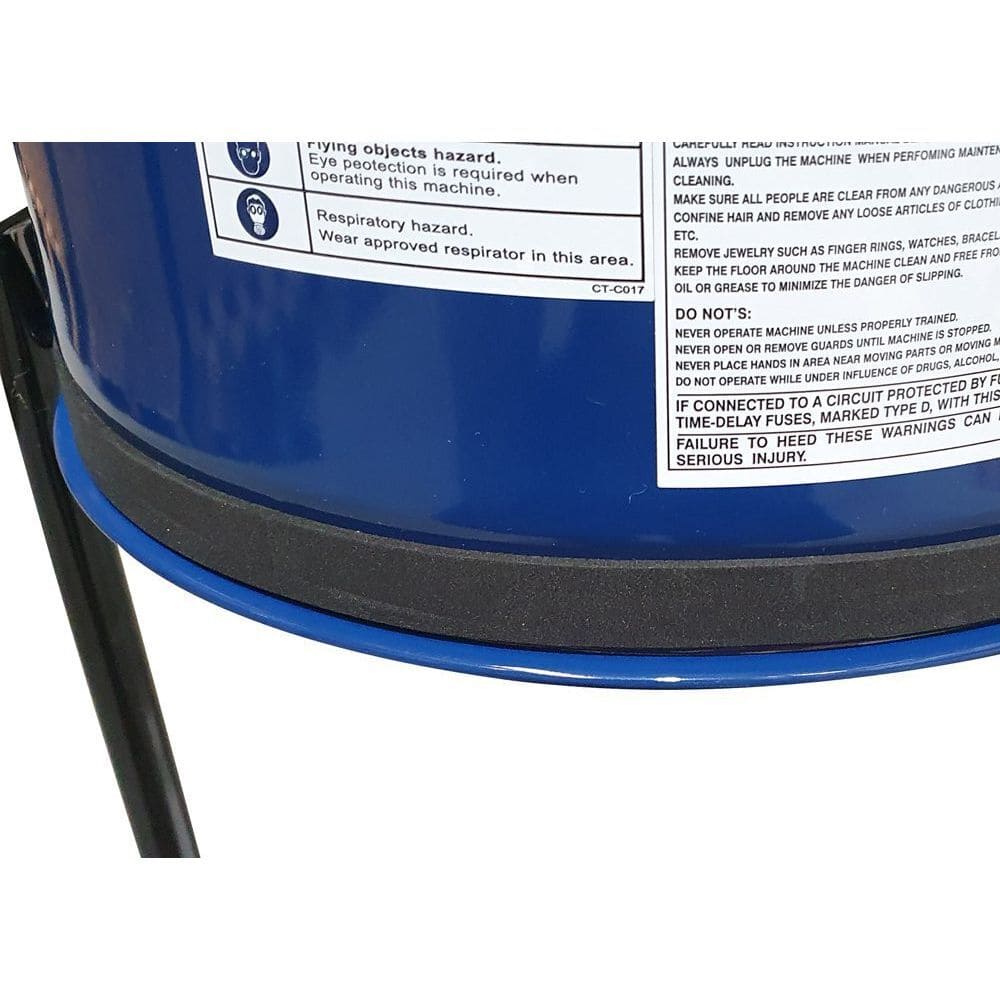

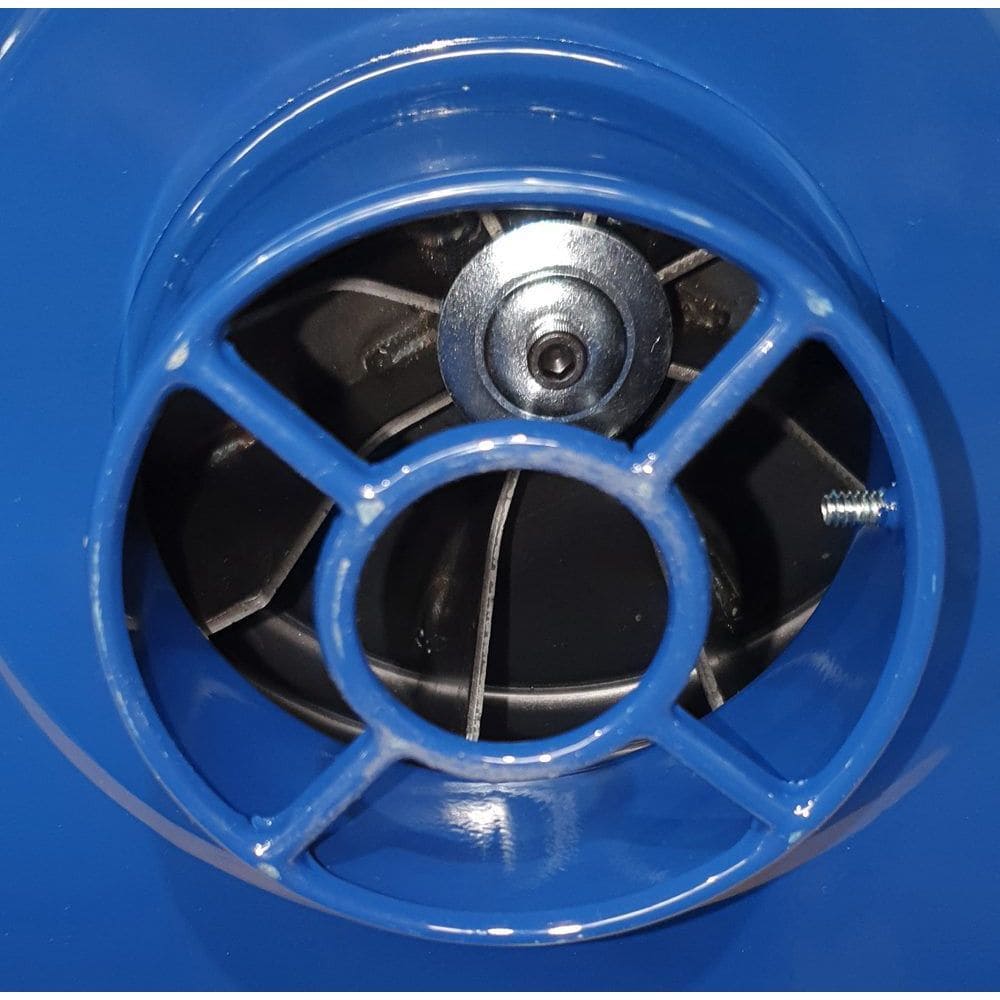

The induction motor runs quietly, turning a steel fan to generate the airflow. Dust, chips and shavings are all forced down into the collection bag, with air then passing through the filter material. The collection bag is a see through heavy gauge plastic fastened by a quick release metal strap. A rubber strip runs around the rim of the collector body to ensure a tight seal when the bag is clamped.

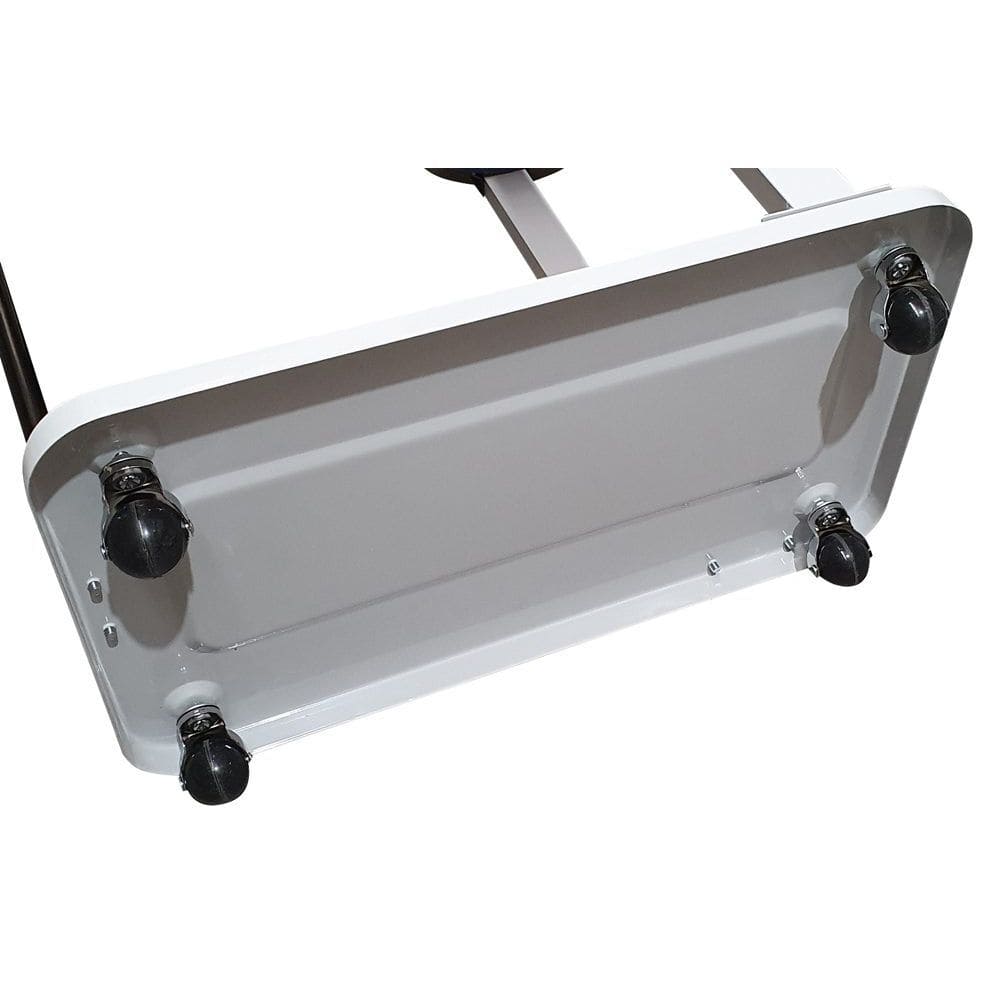

Supplied with 'indestructible' steel fan, 2m length of 100mm diameter flexible hose, 2 hose clips, 100mm inlet, transparent collection bag, 4 steering castors, 1.6m power cable and UK 3 pin plug. Runs on a standard 13 amp fused supply.
Please Note : Hose is Left Hand thread so for quick connector use 100QCL
How Often Should The Filter Be Cleaned?
To maintain optimum performance, we recommend: Every time the extractor is turned off, or every 15 minutes during prolonged periods of running. It can be cleaned whilst the extractor is still running.
What Is A Cleaning Cycle?
Rotate the handle 2 full turns in each direction.
What Are The Symptoms Of A Clogged Filter?
1) Because the air cannot escape from inside the extractor there is a build up of pressure inside. Air will be forced out of joins and seals which are normally airtight. Dust might be seen leaking out from unexpected places.
2) There will be a significant drop in airflow, and therefore collection performance, of the extractor.
Specification
| Motor (Induction) | 750w (1hp) |
| Voltage | 240v |
| Flowrate (cubic metres per hour) | 1000 m3/hour |
| Inlet | 100 mm |
| Collection Bag Layflat Size | 600mm x 900mm |
| Collection Bag Capacity | 70 Litres |
| Collector Drum Diameter | 370mm |
| Surface Area Of Filter | 3.3 m2 |
| Dimensions (WxDxH) | 780mm x 390mm x 1370mm |
| Weight | 36 Kg |
| Assembly Time Required | 45 Minutes |
| Rating | Trade |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
