- Quiet 1hp Induction Motor

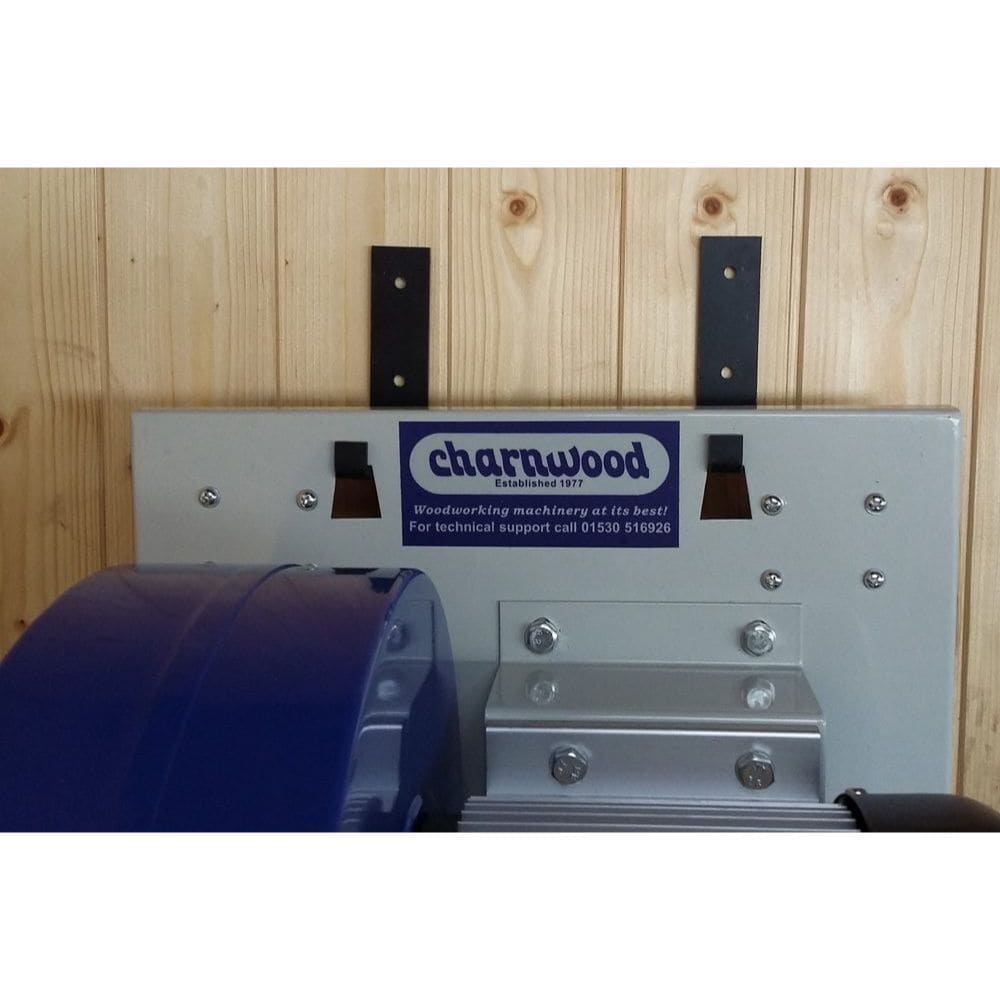

- Supplied with Wall Mounting Brackets

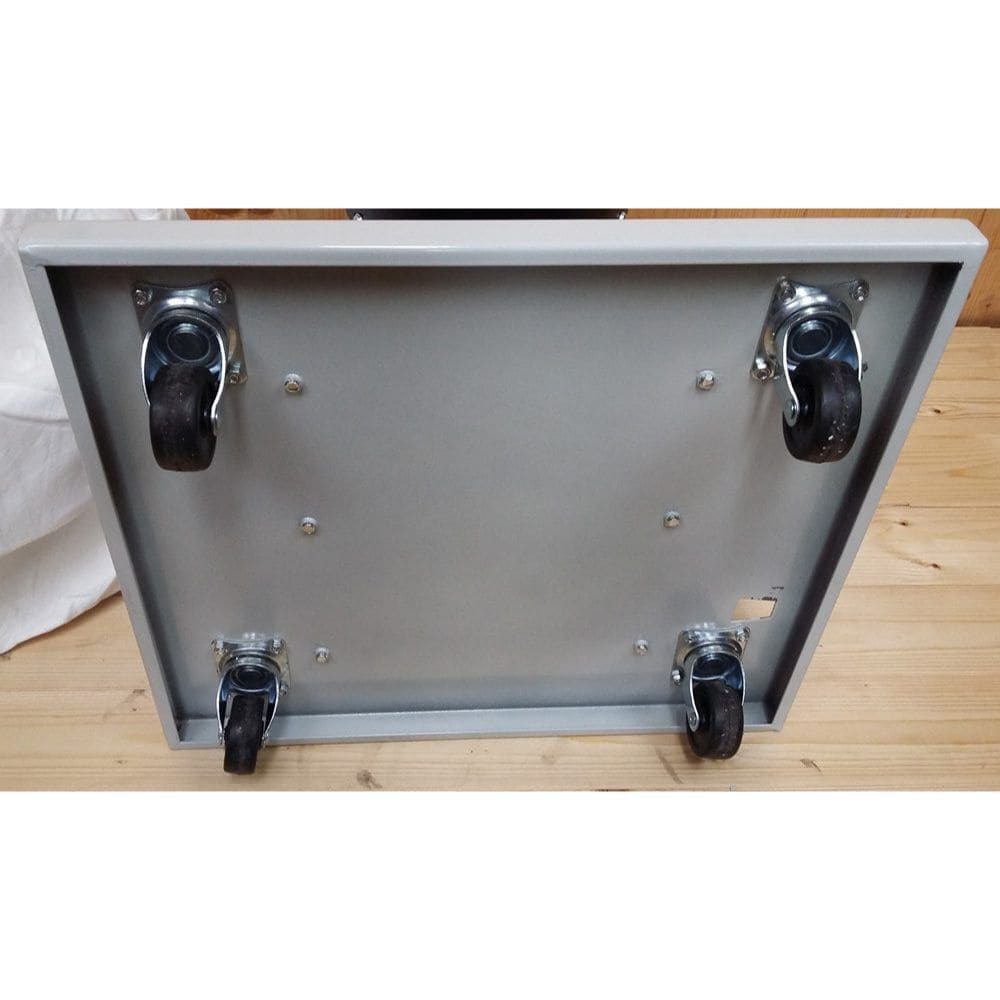

- Supplied with Castors for Under Bench Floor Mounting
- 5 Micron Filter Bag
- Long Life All Steel Fan

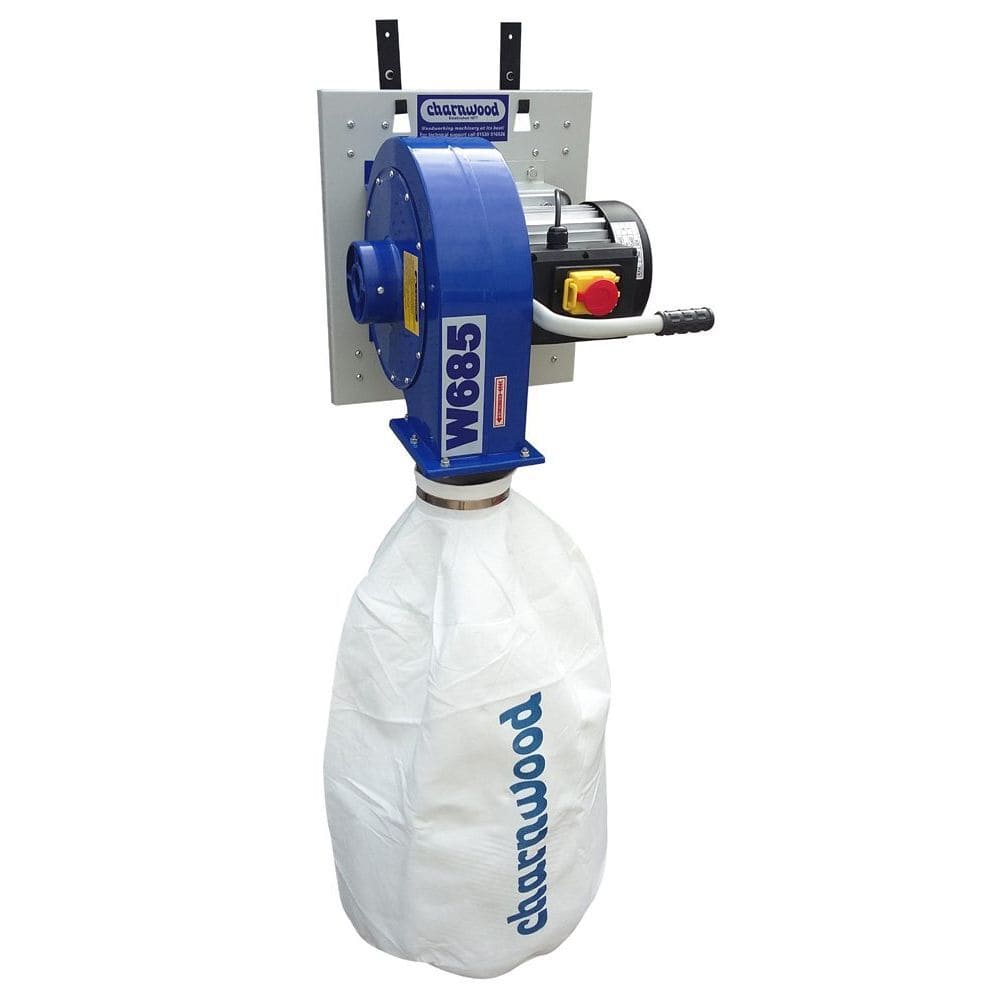

If not having enough space is a problem in your workshop, then this wall mounted extractor may well be the answer. When mounted on a wall the collection/filter bag hangs underneath and collects all the dust and chippings whilst taking up very little space.
Powerful enough for any bench machinery plus bandsaws and table saws.
As an alternative to wall mounting the unit can be used in the horizontal position, under a bench for instance, and is on castors for easy portability around the workshop.
Supplied with wall brackets, 4 castors, carrying handle, 2.0m cable and UK 3 pin plug.
Hose is sold separately, maximum recommended hose length is 3m @ 100mm diameter.

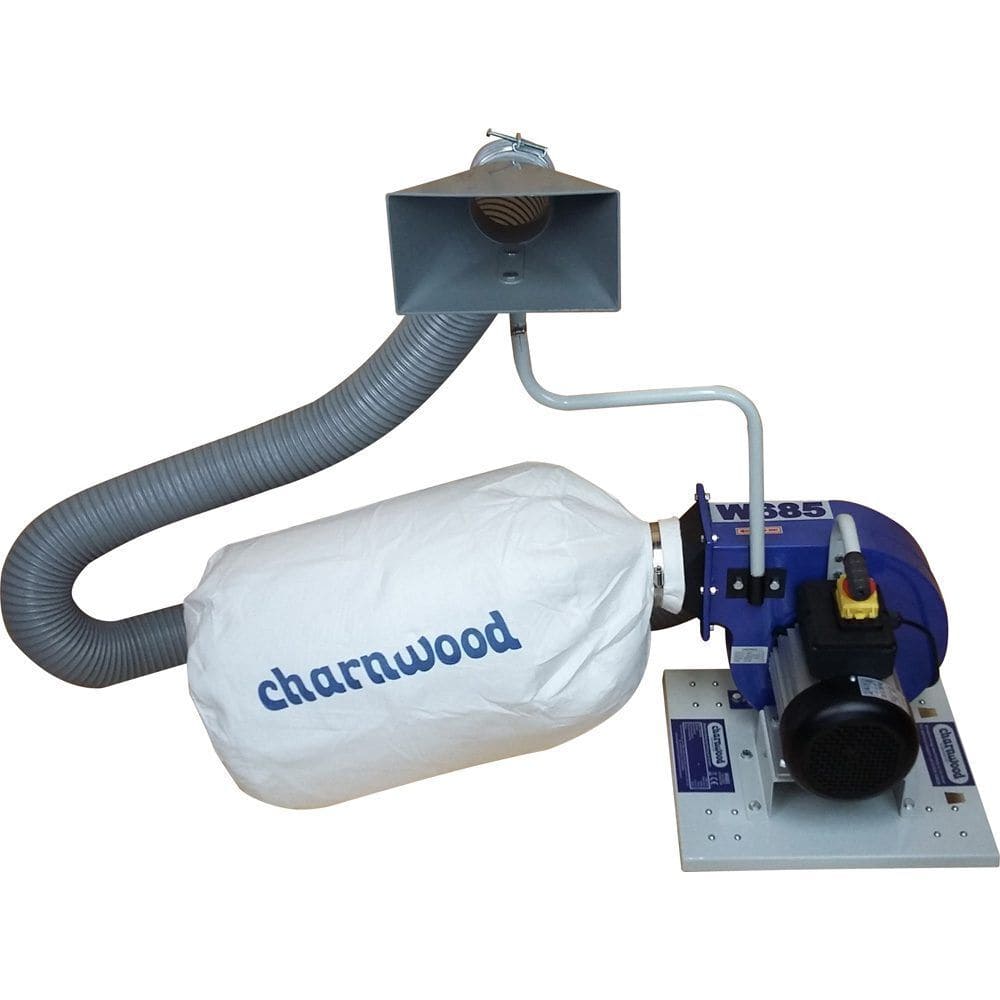

The optional Hose Kit (W685KIT) provides a handy method of holding a dust hood in the desired position when working with a Lathe or other bench top machinery.
Specification
| Motor (induction) | 750w (1hp), 240v |
| Flowrate (cubic metres per hour) | 850m3/hour |

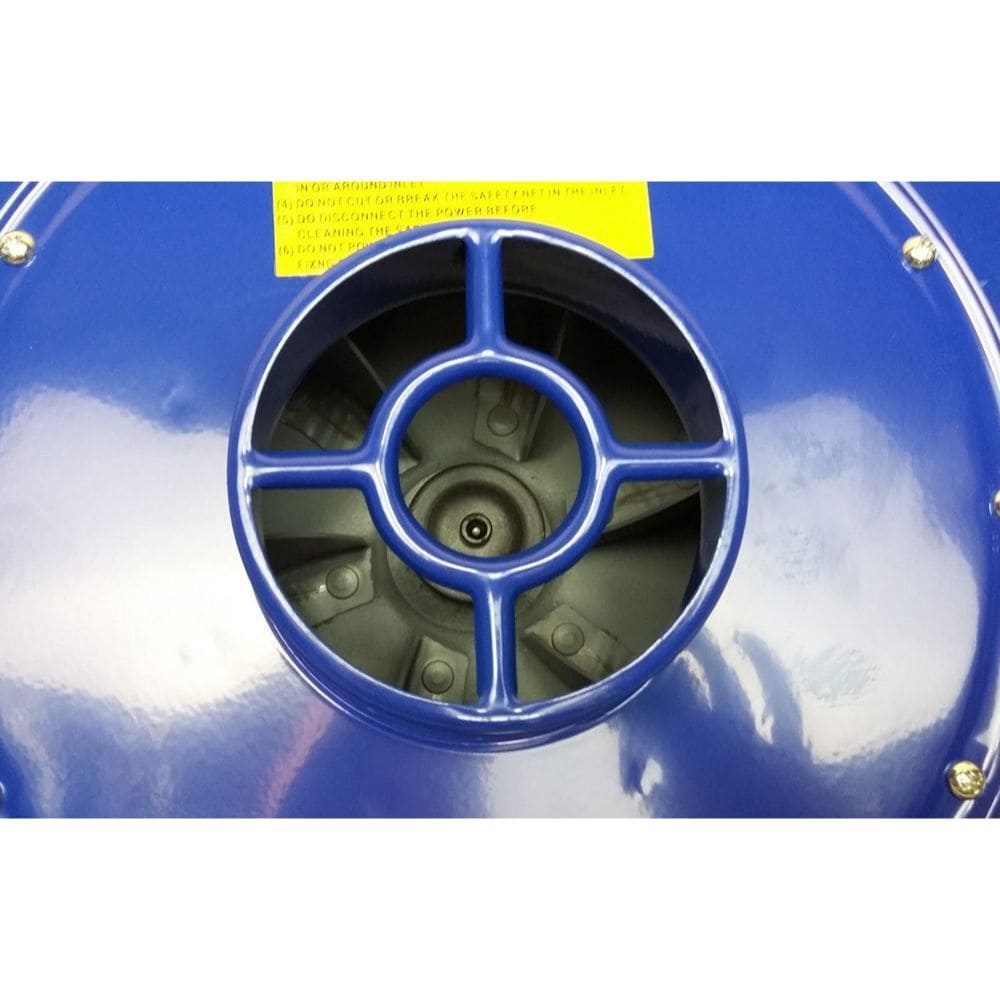

| Inlet diameter | 100mm |
| Bag capacity | 60 Litres |
| Dimensions (WxDxH) | 380mm x 460mm x 1150mm |
| Weight | 27kg |
| Assembly Time Required | 15 Minutes |
| Rating | Hobby |
| Product Guarantee | 5 Years |
Includes a 5 year manufacturers guarantee.
