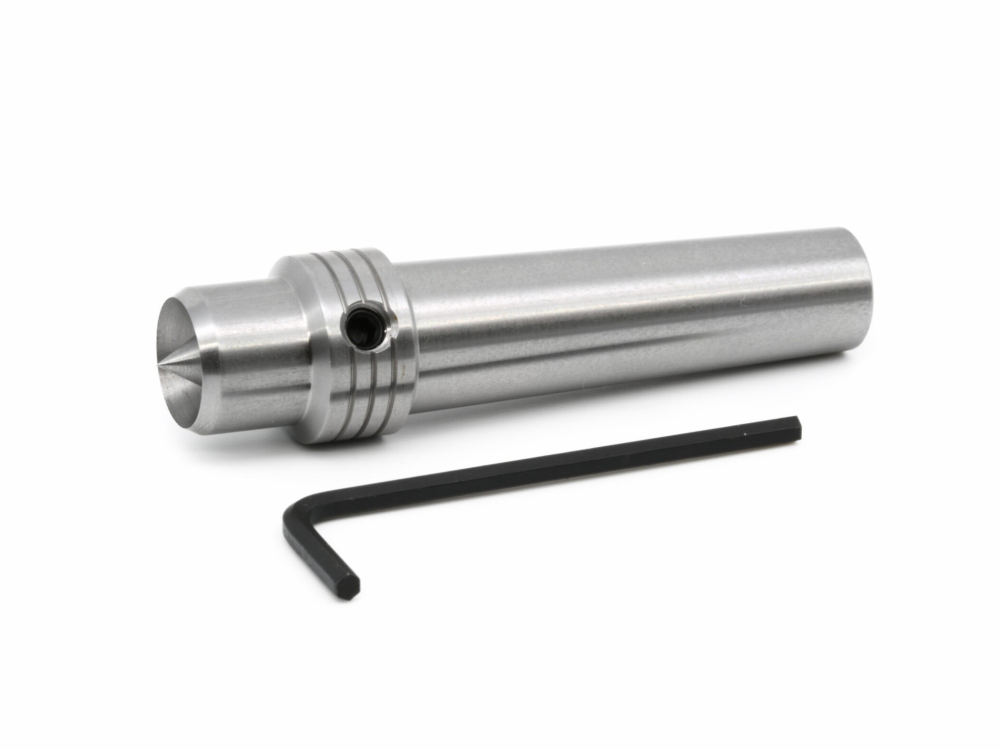

5/8" head with a 5/16" bore. Supplied complete with removable centre and hex key. May also be used as a tail centre when there is a risk of splitting.
How to identify the Morse taper size of a lathe
To determine the Morse taper (MT) size of a woodturning lathe simply measure the internal diameter of the headstock spindle or tailstock quill.
1MT is approximately 12mm
2MT is approximately 18mm
3MT is approximately 24mm
Most woodturning lathes are either 1MT or 2MT and have the same size tapers at both ends. However, some older lathes can have different sizes for the headstock and tailstock.
