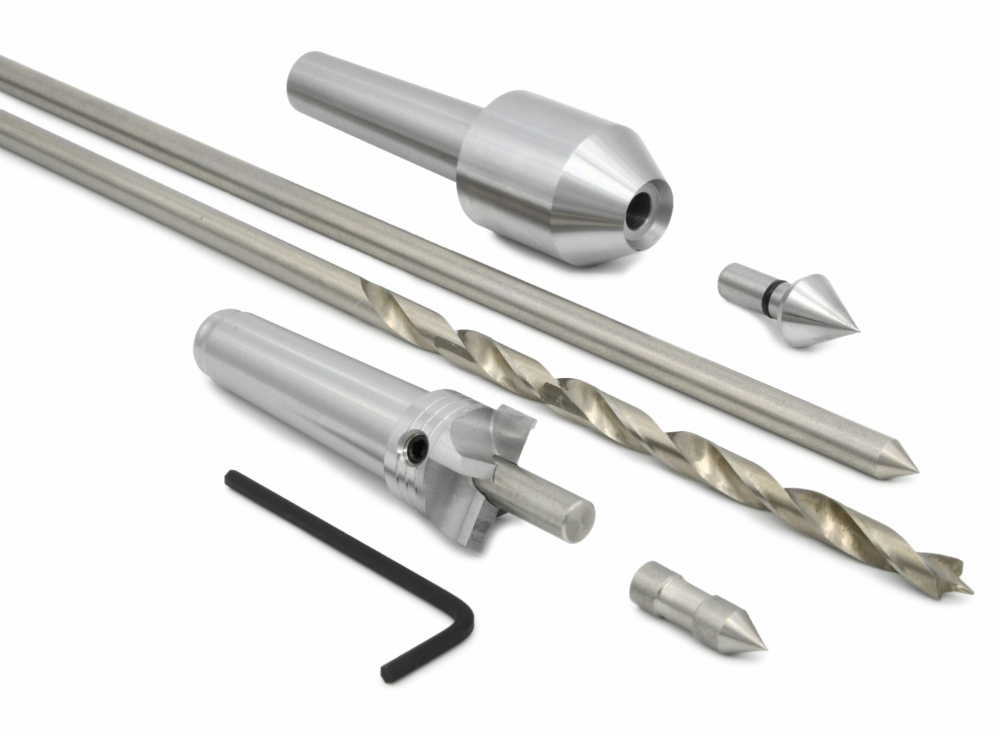

The new Rotur Long Hole Boring Kit comes with the relevant centres and a 5/16" x 24" lip and spur boring bit for making lamp stands or drilling out other spindle work on a lathe. With the lathe running, simply drill into to the workpiece through the tailstock and Hollow rotating centre in small steps until you get about halfway. Then remove the workpiece and change the pointed tip on the drive centre to the counterbore piece, and insert the drilled hole in the workpiece over the counterbore. Use the centring rod through the tailstock to centre the workpiece on the undrilled end while tightening up the tailstock. Then continue to drill through the remainder of the workpiece.
How to identify the Morse taper size of a lathe
To determine the Morse taper (MT) size of a woodturning lathe simply measure the internal diameter of the headstock spindle or tailstock quill.
1MT is approximately 12mm
2MT is approximately 18mm
3MT is approximately 24mm
Most woodturning lathes are either 1MT or 2MT and have the same size tapers at both ends. However, some older lathes can have different sizes for the headstock and tailstock.
